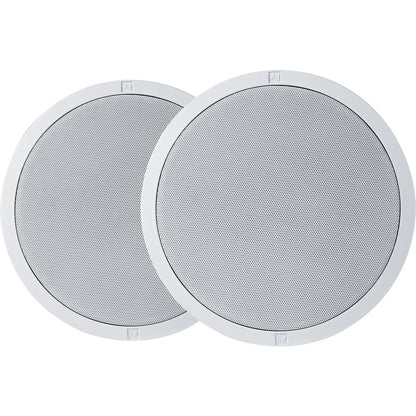

Electro-Voice EVID-C4.2LP 2-way Ceiling Mountable Speaker - 50 W RMS - White

Electro-Voice EVID-C4.2LP 2-way Ceiling Mountable Speaker - 50 W RMS - White

SKU: 1059550549      MFR: The Bosch Group

GTIN: 800549889544

Product Description

Electro-Voice EVID-C4.2LP 2-way Ceiling Mountable Speaker - 50 W RMS - White - 4" Polypropylene Woofer - 0.75" Titanium Dome Tweeter - 60 Hz to 20 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : EVID-C4.2LP

Features

  • The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
  • Handles up to 50 W of RMS power
  • Hear every detail crisp and clear with a frequency response of 60 Hz-20 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response60 Hz
Maximum Frequency Response20 kHz
RMS Output Power50 W
Cutout Diameter10.60"
Product ColorWhite
Tweeter Driver Size0.75"
Woofer Driver Size4"
Tweeter Driver MaterialTitanium Dome
Woofer Driver MaterialPolypropylene
Diameter11.8"
Depth3.70"
Brand NameElectro-Voice
Form FactorCeiling Mountable
ManufacturerThe Bosch Group
Product ModelEVID-C4.2LP
Product NameEVID-C4.2LP Ceiling Speaker 4" Low Profile White
Impedance8 Ohm
Manufacturer Part NumberEVIDC42LP
Manufacturer Website Addresshttp://www.bosch.com
Marketing Information
  • Low profile 4" coaxial two-way (3.7" deep)
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Includes tile bridge and mounting ring for easy installation
  • UL1480A and CSA 22.2 205 certified

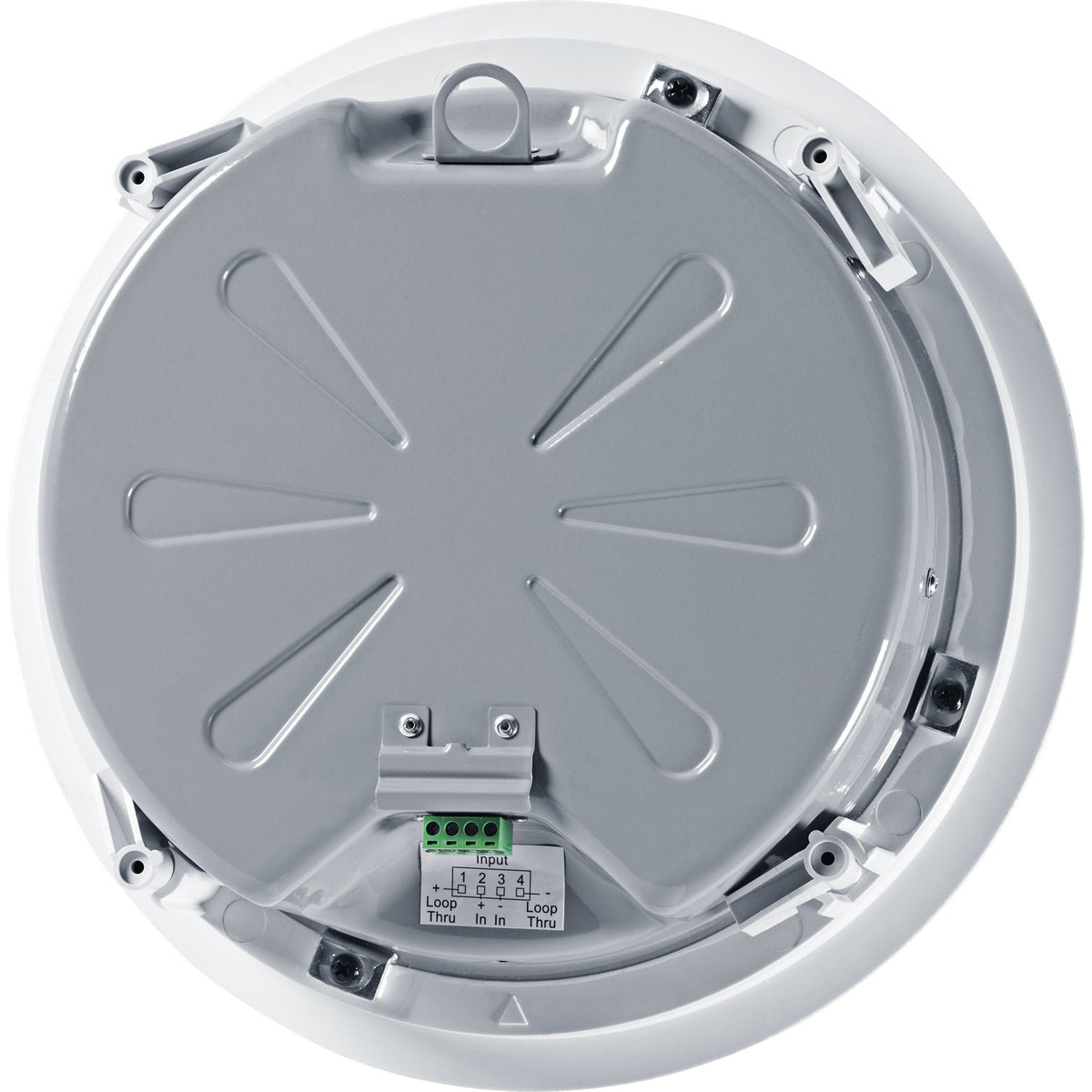

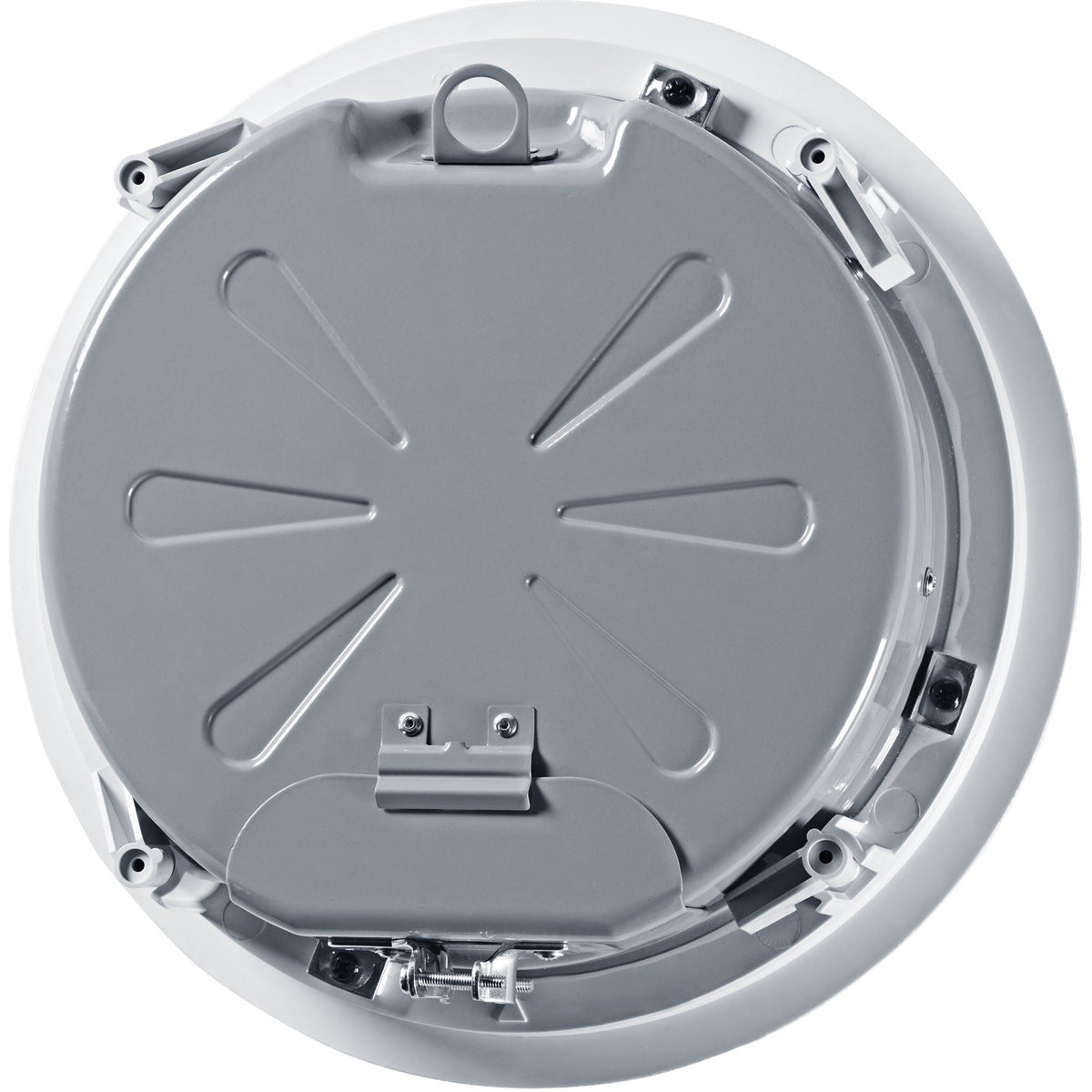

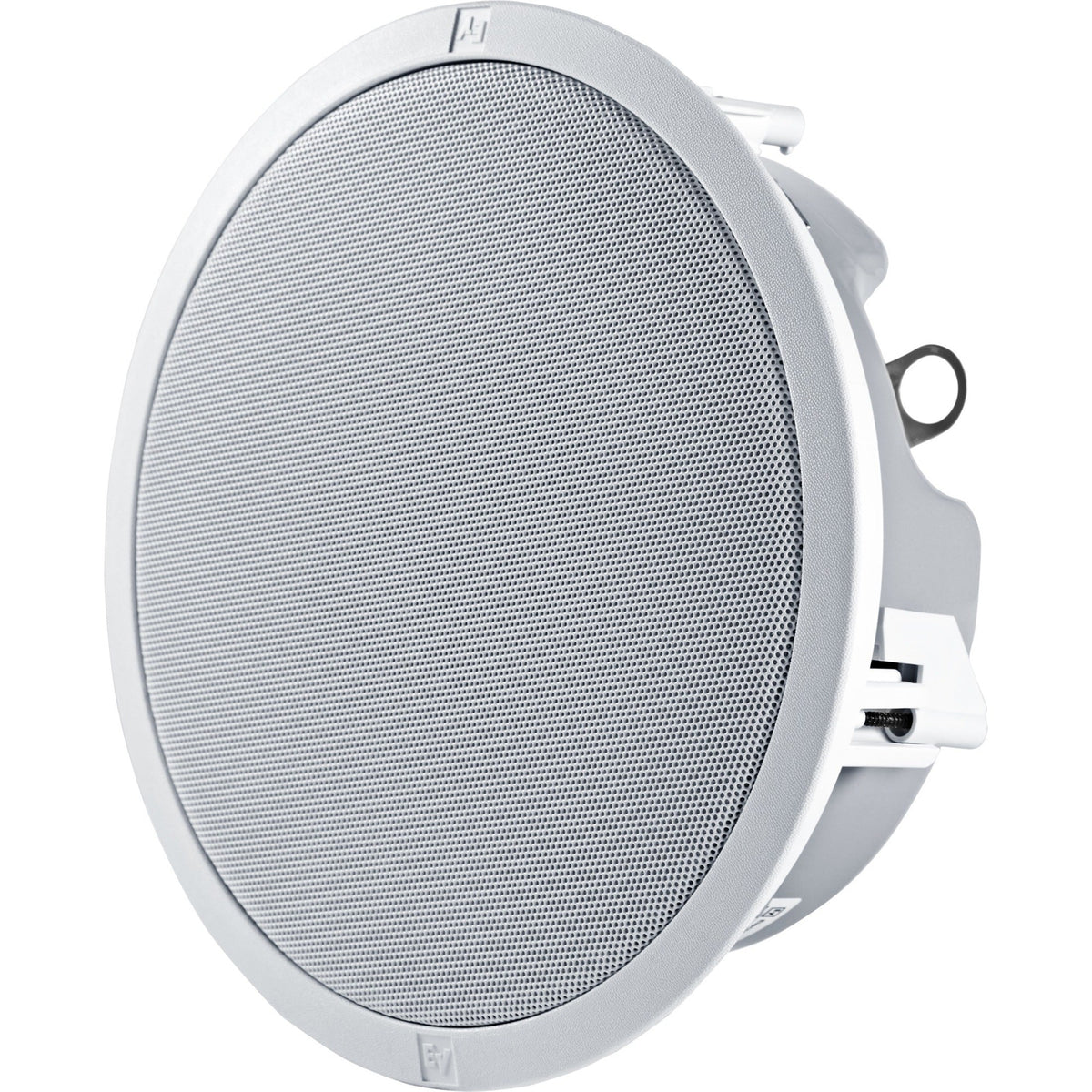

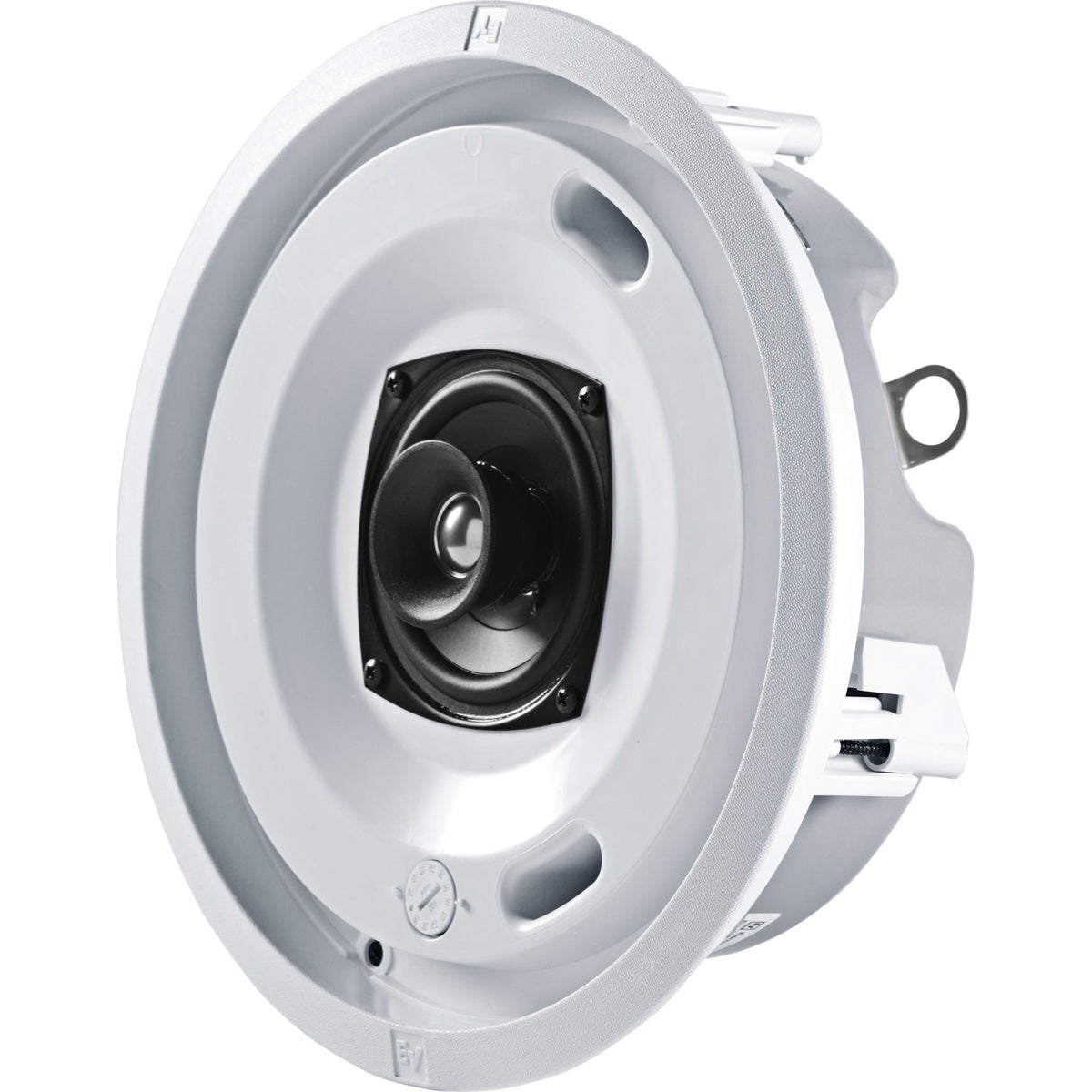

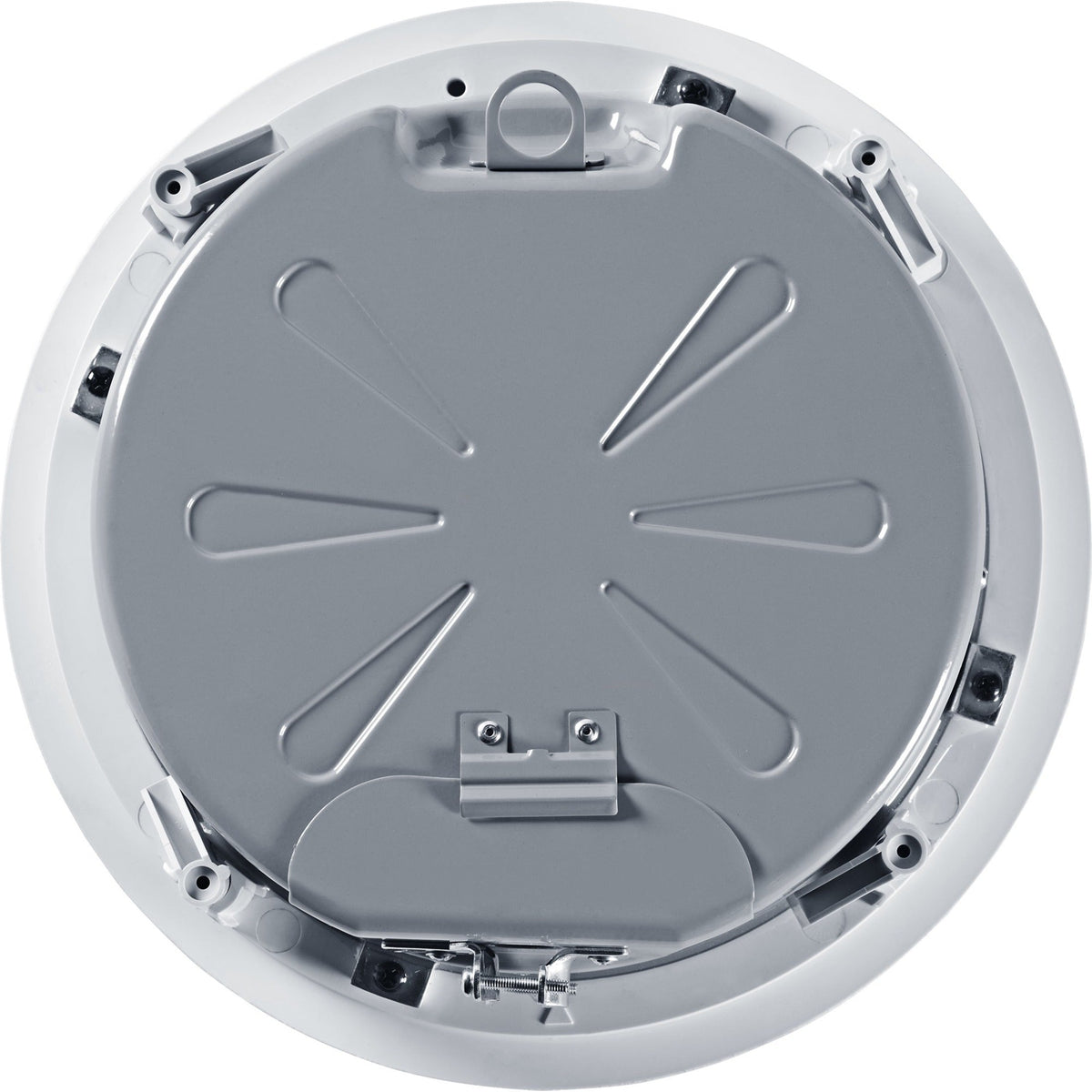

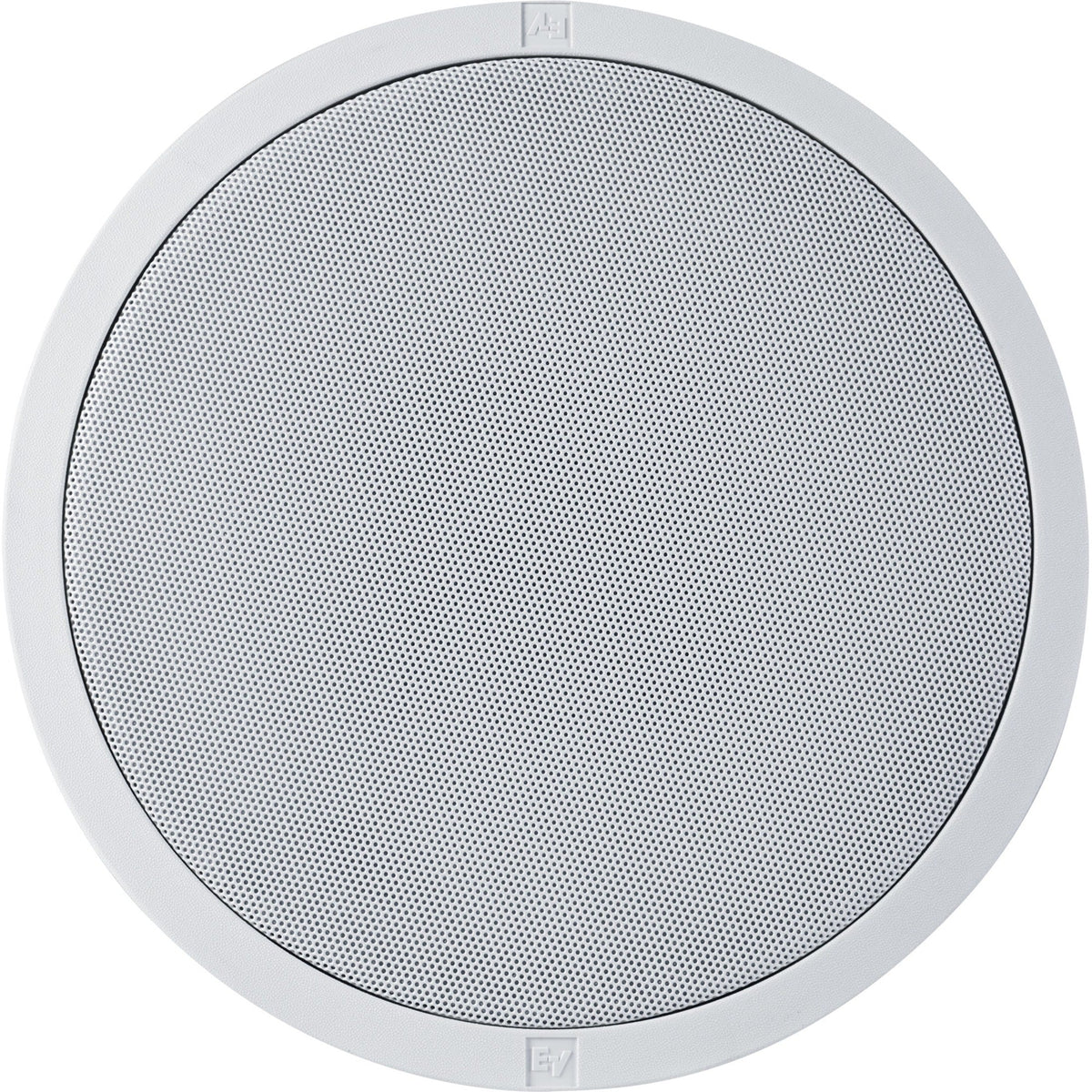

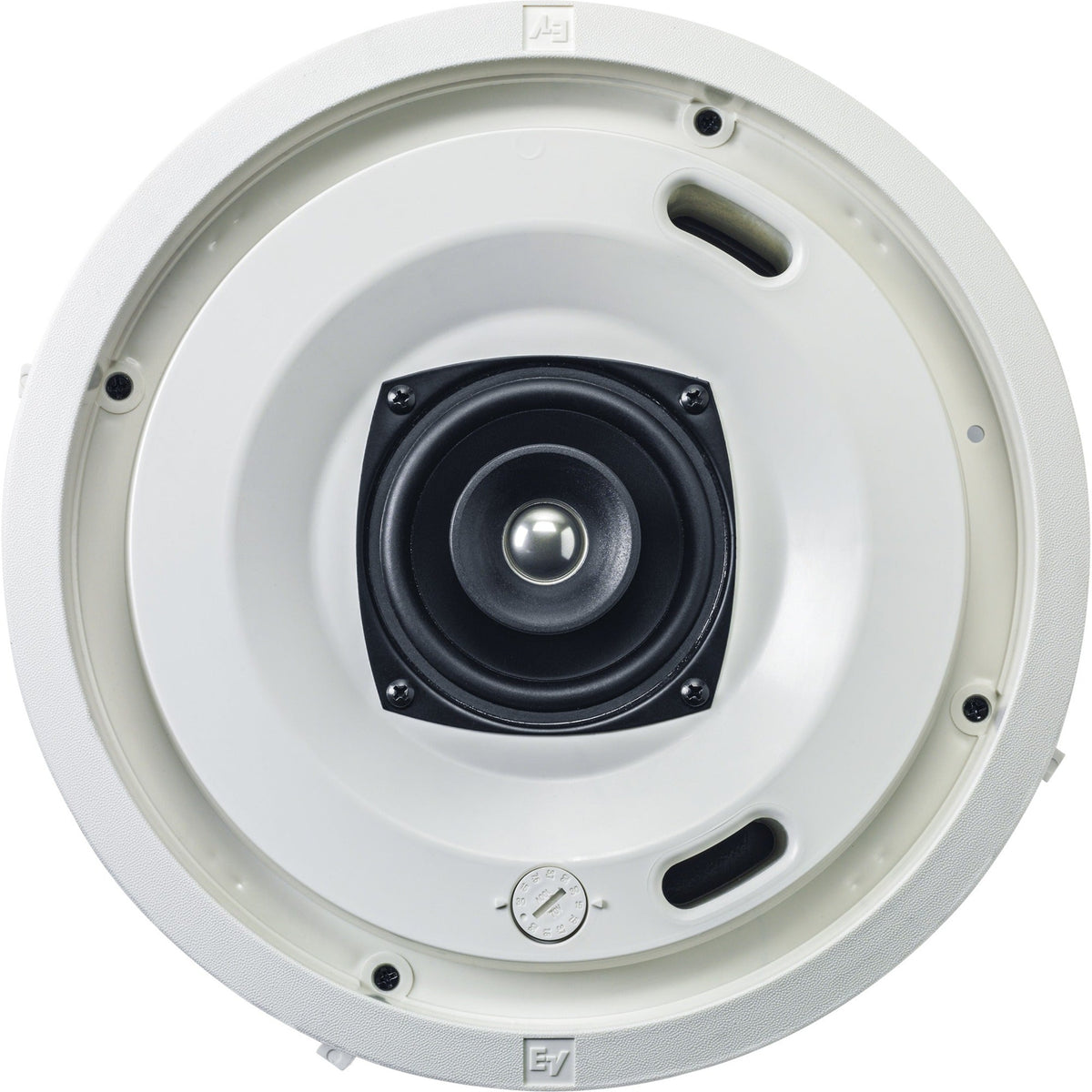

The Electro-Voice EVID-C4.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a very low profile package. The package consists of a bezel assembly grille rear enclosure 4-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C4.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz with a comprehensive protection circuit to protect the network woofer and tweeter drivers from excessive power levels. The EVID-C4.2LP utilizes a transformer that offers a selection of 1.88 (70-V only) 3.75 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A side cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVIDC4.2LP ceiling systems in a drop ceiling that uses mineral wool or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion high-efficiency high-maximum output ease of installation and wide-range reproduction of music or voice.

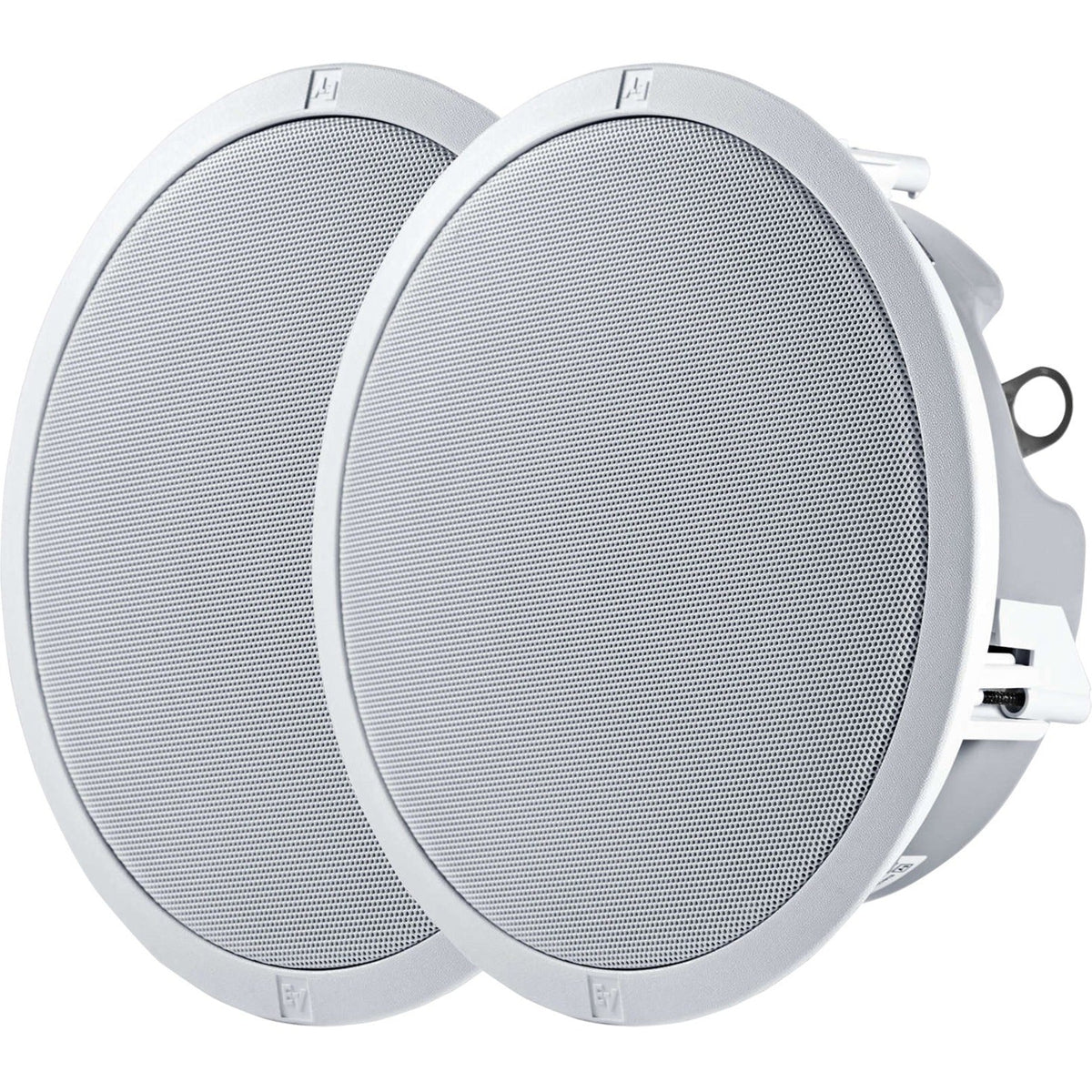

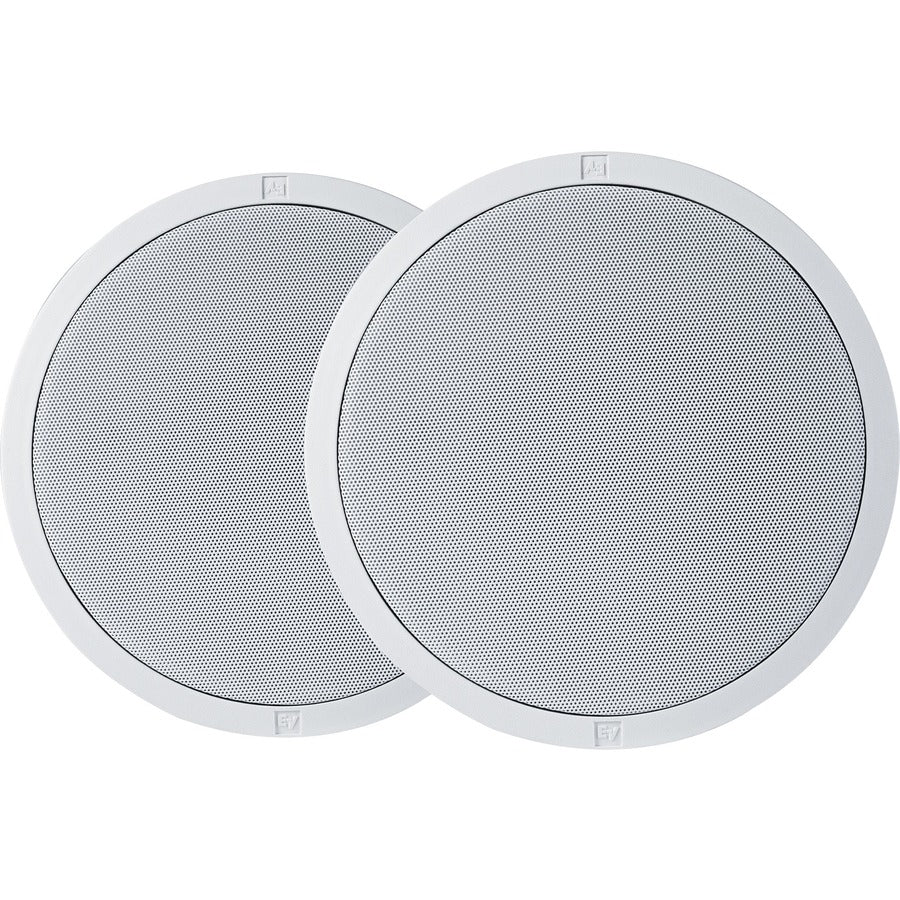

Packaged Quantity2
Package Contents
  • EVID-C4.2LP Ceiling Speaker 4" Low Profile White
  • 4 x Tile Rails
  • 2 x C-ring Supports
  • 2 x Grilles
  • 1 x Owner's Manual
  • 4 x Support Ring Screws
  • 2 x Terminal Connectors
  • 1 x Service Center Card
  • 1 x Cutout Template
  • 2 x Paint Shields
Sensitivity86 dB
Weight (Approximate)7.35 lb
