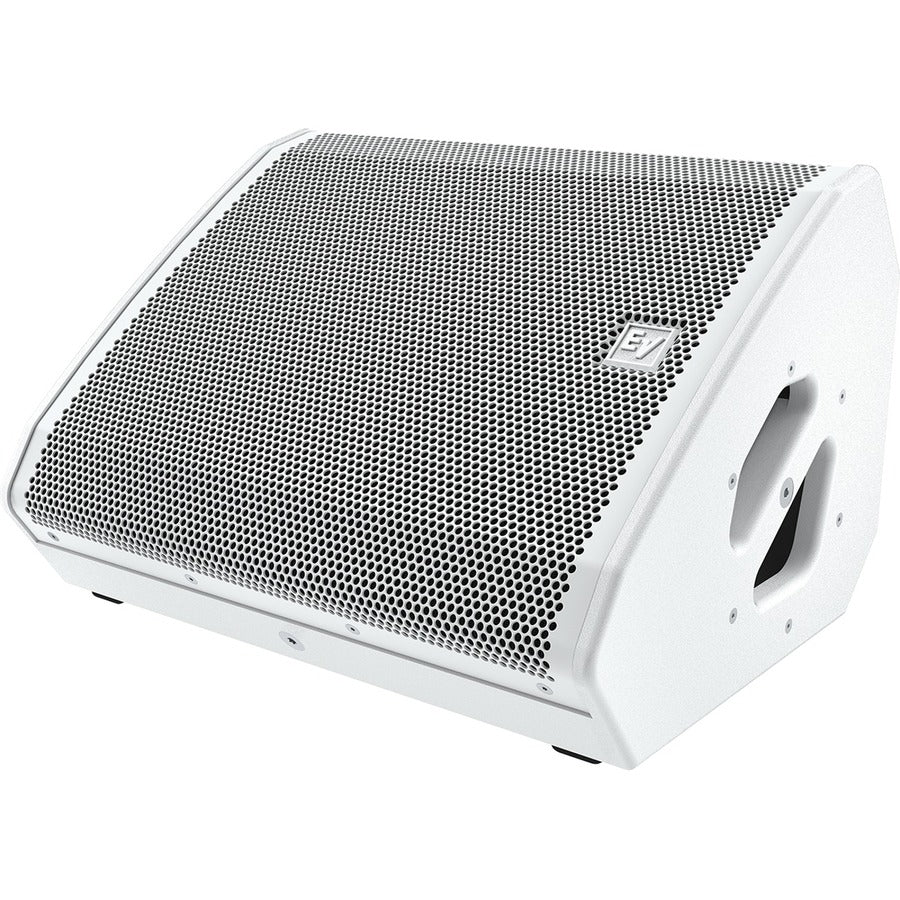

• Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White
    Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White
  • Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White
  • Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White
1 3

Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White

Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White

SKU: 1062443870      MFR: The Bosch Group

GTIN: 800549936637

Product Description

Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White - 3000 W (PMPO) Woofer Tweeter Midrange - 62 Hz to 18 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : MFX-12MC-W

Features

  • Multi-functional coaxial short-throw point source for stage monitoring FOH front fill and side fill
  • Rugged tour-grade durability in a lightweight ergonomic design
  • Low profile maximizes audience sight lines
  • Switched passive or biamp operation with factory presets for any application
  • Range of mounting accessories for live sound and fixed installation

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response62 Hz
Maximum Frequency Response18 kHz
RMS Output Power450 W
PMPO Output Power3000 W
Product ColorWhite
Height19.7"
Width16.5"
Depth11.73"
Brand NameElectro-Voice
DurabilityCorrosion Resistant
Form FactorWall Mountable
ManufacturerThe Bosch Group
Product ModelMFX-12MC
Product NameMFX-12MC 12" Multiuse Coax Monitor
Application/UsageStage
Impedance8 Ohm
Manufacturer Part NumberMFX-12MC-W
Manufacturer Website Addresshttp://www.bosch.com

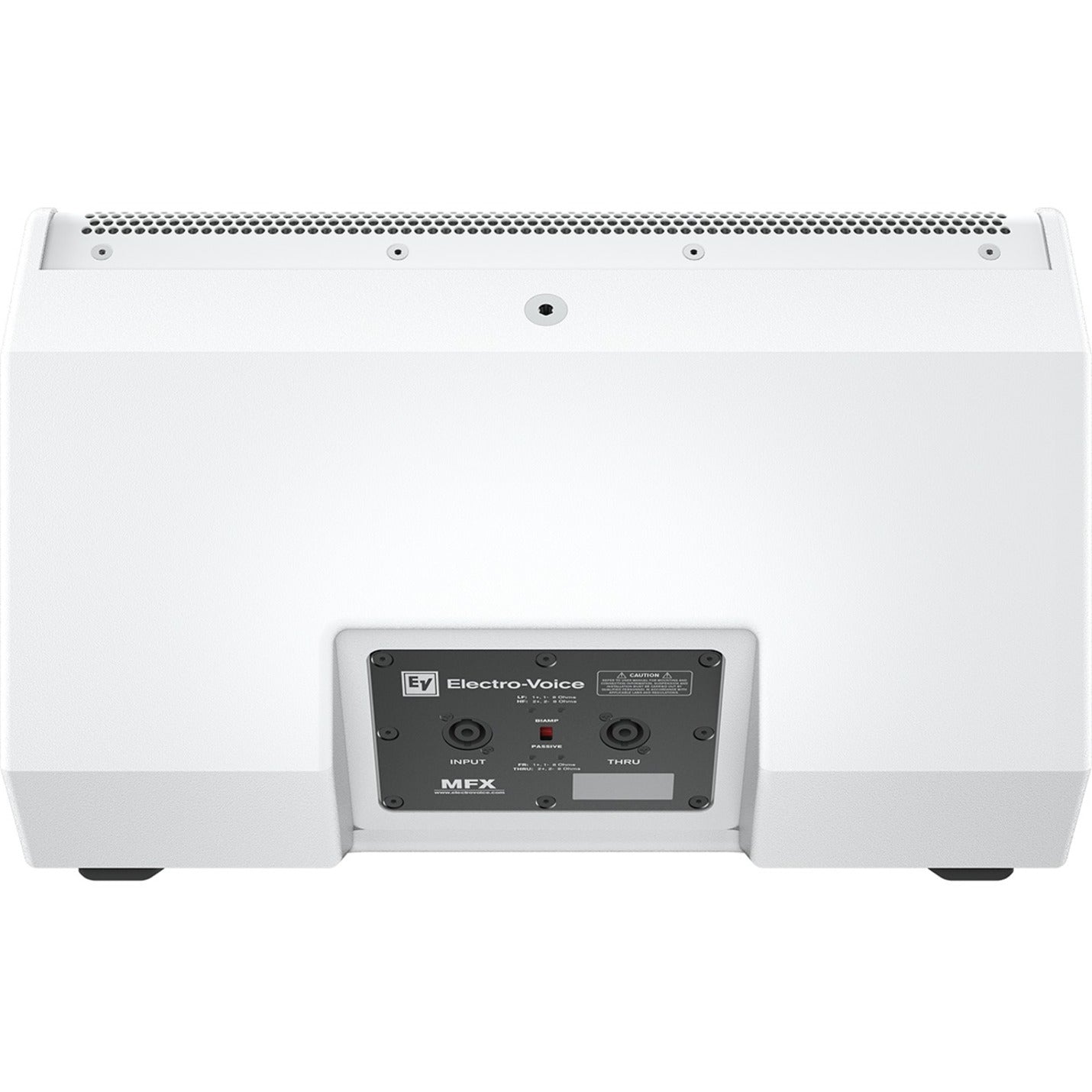

Marketing InformationMFX Multi-Functional Monitors deliver a new level of reference performance from compact two-way coaxial designs. In addition to their primary use as live sound stage monitors they can also serve as shortthrow full range sound reinforcement speakers (with or without subwoofer) and are appropriate for a wide range of permanent installations. The internal details of the cabinet were selected in order to maximize internal volume while maintaining a low stage profile to preserve sight lines. The input panel is recessed into the rear of the speaker protecting connectors within the cabinet envelope. The panel includes NL4 input and loop-through connections along with a passive/biamp switch.

MFX Multi-Function Monitors are an attractive investment for live sound companies because they can be deployed in multiple system roles keeping more of the rental inventory working rather than sitting in the warehouse until an appropriate job is booked. EV has created a library of DSP settings to optimize the speakers for specific uses. The recommended MFX monitor amplifier match is the Dynacord TGX or IPX amplifier series. The loudspeaker settings run in Dynacord's SONICUE control software which loads them into the amplifier DSP section.

The constant directivity waveguide has a narrow pattern when the speaker is used horizontally as monitor and a wide pattern when the cabinet is oriented vertically for use as a short-throw loudspeaker. The relatively large physical size of the waveguide controls coverage more uniformly and to a lower frequency than competitive models. The dimensions and location of the waveguide interact with the woofer to effectively create a bipole output enhancing coverage control through the midrange frequencies. This configuration contributes to excellent gain-before-feedback performance. The waveguide also functions as a structural support (standoff) for the grille even when a lead singer's boot rests directly on the speaker.

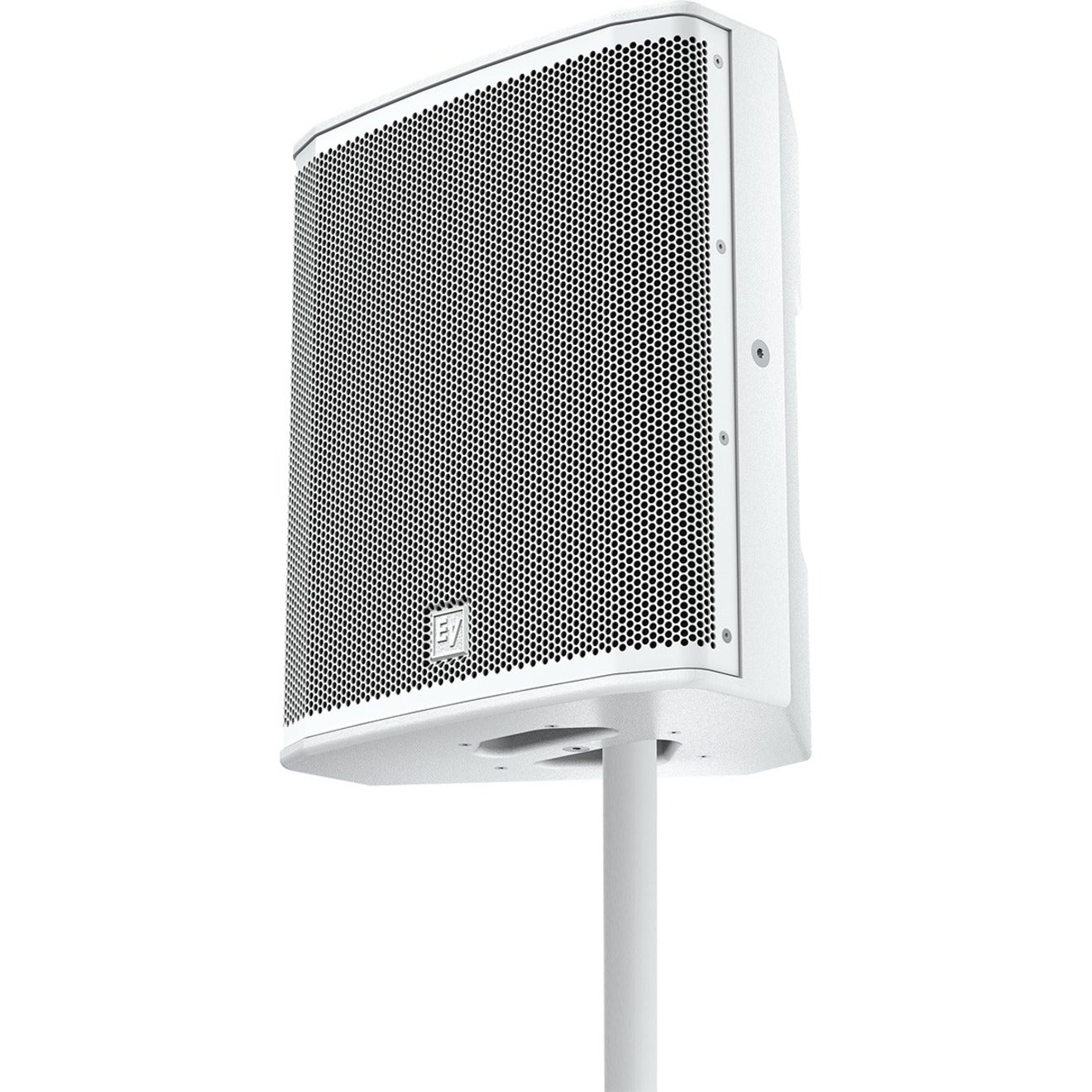

The co-axial driver and horn assembly can be uninstalled and re-installed with a 90° rotation which also rotates the coverage pattern; this is only recommended for install applications. Both models feature an integrated pole cup (neatly located in the side handle recesses) and four M10 suspension points to attach custom U brackets for wall-mount or flown use. Truss clamps stand mount adapters and a rigging bar are available for live or permanent installations.
Weight (Approximate)41.89 lb
View full details
$3,136.99 USD
$3,136.99
Sale Sold out

Back Order

Get it by Mon, Aug 24 - Sat, Aug 29


Update


Shipping calculated at checkout.

Electro-Voice MFX-12MC 2-way Wall Mountable Speaker - 450 W RMS - White - 3000 W (PMPO) Woofer Tweeter Midrange - 62 Hz to 18 kHz - 8 Ohm

Manufacturer : The Bosch Group

Manufacturer Part No : MFX-12MC-W

Features

  • Multi-functional coaxial short-throw point source for stage monitoring FOH front fill and side fill
  • Rugged tour-grade durability in a lightweight ergonomic design
  • Low profile maximizes audience sight lines
  • Switched passive or biamp operation with factory presets for any application
  • Range of mounting accessories for live sound and fixed installation

Product Details

Product TypeSpeaker
Crossover Type2-way
Minimum Frequency Response62 Hz
Maximum Frequency Response18 kHz
RMS Output Power450 W
PMPO Output Power3000 W
Product ColorWhite
Height19.7"
Width16.5"
Depth11.73"
Brand NameElectro-Voice
DurabilityCorrosion Resistant
Form FactorWall Mountable
ManufacturerThe Bosch Group
Product ModelMFX-12MC
Product NameMFX-12MC 12" Multiuse Coax Monitor
Application/UsageStage
Impedance8 Ohm
Manufacturer Part NumberMFX-12MC-W
Manufacturer Website Addresshttp://www.bosch.com
Marketing InformationMFX Multi-Functional Monitors deliver a new level of reference performance from compact two-way coaxial designs. In addition to their primary use as live sound stage monitors they can also serve as shortthrow full range sound reinforcement speakers (with or without subwoofer) and are appropriate for a wide range of permanent installations. The internal details of the cabinet were selected in order to maximize internal volume while maintaining a low stage profile to preserve sight lines. The input panel is recessed into the rear of the speaker protecting connectors within the cabinet envelope. The panel includes NL4 input and loop-through connections along with a passive/biamp switch.

MFX Multi-Function Monitors are an attractive investment for live sound companies because they can be deployed in multiple system roles keeping more of the rental inventory working rather than sitting in the warehouse until an appropriate job is booked. EV has created a library of DSP settings to optimize the speakers for specific uses. The recommended MFX monitor amplifier match is the Dynacord TGX or IPX amplifier series. The loudspeaker settings run in Dynacord's SONICUE control software which loads them into the amplifier DSP section.

The constant directivity waveguide has a narrow pattern when the speaker is used horizontally as monitor and a wide pattern when the cabinet is oriented vertically for use as a short-throw loudspeaker. The relatively large physical size of the waveguide controls coverage more uniformly and to a lower frequency than competitive models. The dimensions and location of the waveguide interact with the woofer to effectively create a bipole output enhancing coverage control through the midrange frequencies. This configuration contributes to excellent gain-before-feedback performance. The waveguide also functions as a structural support (standoff) for the grille even when a lead singer's boot rests directly on the speaker.

The co-axial driver and horn assembly can be uninstalled and re-installed with a 90° rotation which also rotates the coverage pattern; this is only recommended for install applications. Both models feature an integrated pole cup (neatly located in the side handle recesses) and four M10 suspension points to attach custom U brackets for wall-mount or flown use. Truss clamps stand mount adapters and a rigging bar are available for live or permanent installations.
Weight (Approximate)41.89 lb
