Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish
Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish
SKU: 1027217655 MFR: The Bosch Group
GTIN: 800549699501
Product Description
Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish - 2400 W (PMPO) - 15" - 3" Titanium Tweeter - 40 Hz to 21 kHz - 8 Ohm
Manufacturer : The Bosch Group
Manufacturer Part No : EVF-1152D/96-BLK
Features
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- Knock yourself out with 600 W RMS power
- Listen to deep lows and euphoric highs with a frequency range of sound from 40 Hz-21 kHz
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Product Details
- DH7N 3" (76 mm) diaphragm 1.4" (36 mm) exit pure titanium compression driver
- DVX3151A 15" (381 mm) LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern: 90° x 60° Constant Directivity™ 12" rotatable waveguide
- 100 dB sensitivity 134 dB maximum SPL
- System rating: 600 W continuous 2400 W peak
- Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
- (22) M10 threaded suspension points
- PI version available with gland nut and stainless-steel grille
The Electro-Voice EVF-1152D/96 is a high-power two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact lightweight package.
The EVF-1152D/96 utilizes the DH7N a high-output 3" titanium compression driver coupled to a Constant Directivity™ 90° x 60° waveguide. The DVX3151A 15" woofer was developed using FEA optimization for motor suspension and electrical design to ensure very low distortion high efficiency and maximum intelligibility at high SPL. The crossover uses steep 24-dB-per-octave slopes with equalization for very smooth response in the vocal range linear off-axis response and a protection circuit for long-term reliability.

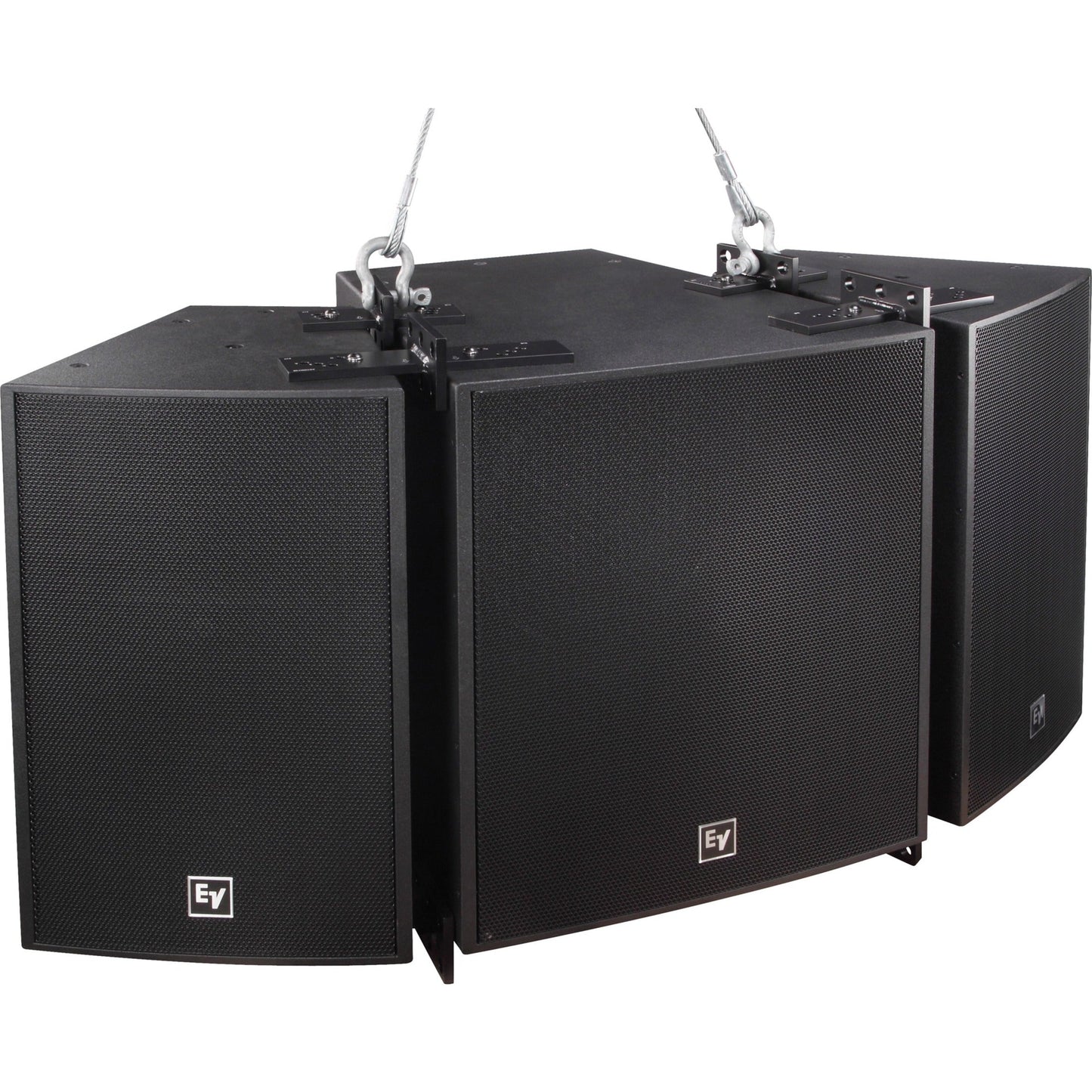

The EVF-1152D/96's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from along with an assortment of low-frequency and subwoofer loudspeakers you have the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues quickly and precisely supporting customer requirements with fewer items in inventory.
Out Of Stock
Update
Couldn't load pickup availability
![Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish](http://tekmentum.com/cdn/shop/files/1027217655.jpg?v=1695321258&width=1445)
![Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish](http://tekmentum.com/cdn/shop/files/1027217655_4ba9e137-95d2-408c-97bc-4342524f0209.jpg?v=1698374311&width=1445)
![Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish](http://tekmentum.com/cdn/shop/files/1027217655_68da9a28-fdb6-4daa-b656-b709bc3d2e52.jpg?v=1698374314&width=1445)
![Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish](http://tekmentum.com/cdn/shop/files/1027217655_df57bd5a-8c47-4a19-aae0-fa4b795ccf8d.jpg?v=1698374335&width=1445)
![Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish](http://tekmentum.com/cdn/shop/files/1027217655_90707202-05e6-4c57-8160-77226b574ebc.jpg?v=1698374338&width=1445)
![Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish](http://tekmentum.com/cdn/shop/files/1027217655_ef82bc47-24b6-4a7e-b737-56fef3775d8e.jpg?v=1698374342&width=1445)
Electro-Voice Premium 2-way Speaker - 600 W RMS - Black Finish - 2400 W (PMPO) - 15" - 3" Titanium Tweeter - 40 Hz to 21 kHz - 8 Ohm
Manufacturer : The Bosch Group
Manufacturer Part No : EVF-1152D/96-BLK
Features
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- Knock yourself out with 600 W RMS power
- Listen to deep lows and euphoric highs with a frequency range of sound from 40 Hz-21 kHz
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Product Details
- DH7N 3" (76 mm) diaphragm 1.4" (36 mm) exit pure titanium compression driver
- DVX3151A 15" (381 mm) LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern: 90° x 60° Constant Directivity™ 12" rotatable waveguide
- 100 dB sensitivity 134 dB maximum SPL
- System rating: 600 W continuous 2400 W peak
- Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
- (22) M10 threaded suspension points
- PI version available with gland nut and stainless-steel grille
The Electro-Voice EVF-1152D/96 is a high-power two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact lightweight package.
The EVF-1152D/96 utilizes the DH7N a high-output 3" titanium compression driver coupled to a Constant Directivity™ 90° x 60° waveguide. The DVX3151A 15" woofer was developed using FEA optimization for motor suspension and electrical design to ensure very low distortion high efficiency and maximum intelligibility at high SPL. The crossover uses steep 24-dB-per-octave slopes with equalization for very smooth response in the vocal range linear off-axis response and a protection circuit for long-term reliability.
The EVF-1152D/96's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from along with an assortment of low-frequency and subwoofer loudspeakers you have the tools to maximize flexibility of system design no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues quickly and precisely supporting customer requirements with fewer items in inventory.
