• 1291L 12IN LCD WVA OPEN FRAME
    1291L 12IN LCD WVA OPEN FRAME
1 1

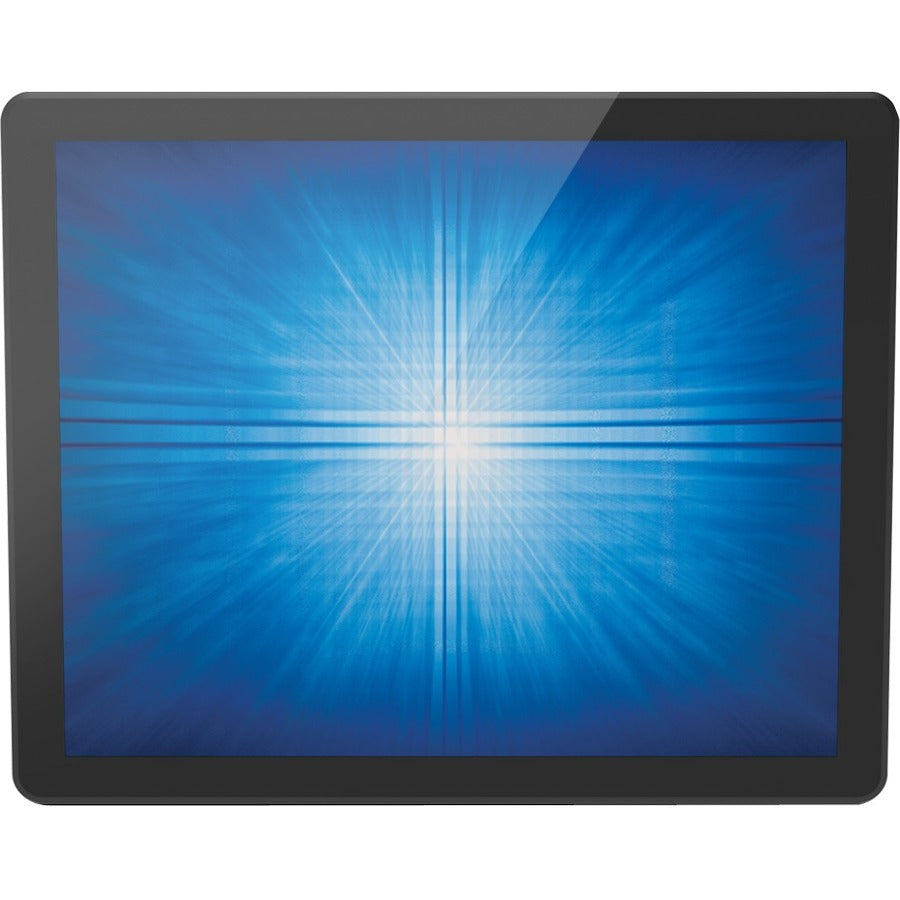

Elo 1291L 12.1" Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms

Elo 1291L 12.1" Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms

SKU: 1039238532      MFR: Elo Touch Solutions Inc

GTIN: 815335026034

Product Description

Elo 1291L 12.1" Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms - Projected CapacitiveMulti-touch Screen - 800 x 600 - SVGA - 16.2 Million Colors - 1500:1 - 450 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E331595

Features

  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 1500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • View your content easily in well-lit areas with 450 Nit brightness
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort

Product Details

Weight (Approximate)5.80 lb
Product TypeOpen-frame LCD Touchscreen Monitor
Environmentally FriendlyYes
Environmental CertificationTÜV
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VGAYes
DisplayPortYes
Multi-touch ScreenYes
ColorBlack
Brightness450 Nit
Screen ModeSVGA
Color Supported16.2 Million Colors
Viewable Screen Size12.1"
Maximum Resolution800 x 600
Brand NameElo
Contrast Ratio1500:1
Mount TypeFlush Mount
Aspect Ratio4:3
Response Time25 ms
Limited Warranty3 Year
Touchscreen TypeProjected Capacitive
Operating Power Consumption12.20 W
Height9.5"
Width11.9"
Depth1.8"
ManufacturerElo Touch Solutions Inc
Product Model1291L
Product Name1291L 12" Open Frame Touchscreen (Rev B)
Manufacturer Part NumberE331595
Manufacturer Website Addresshttp://www.elotouch.com
Marketing InformationThe Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel the open-frame touchscreen instantly grabs and holds the users' attention for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected as well as backwards compatibility helping to minimize enclosure costs.

Touch ready.

Available with a choice of industry-leading single-touch or multi-touch technologies including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology and Elo's latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel offering pristine optical clarity and touch durability.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.

  • Viewing angle of 178° (h) x 178° (v) for sharp colors and graphics in both portrait and landscape modes
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
Package Contents
  • 1291L 12" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • Flush Mount Brackets w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
View full details
