• 1590L 15IN LCD OPEN FRAME HDMI
    1590L 15IN LCD OPEN FRAME HDMI
1 1

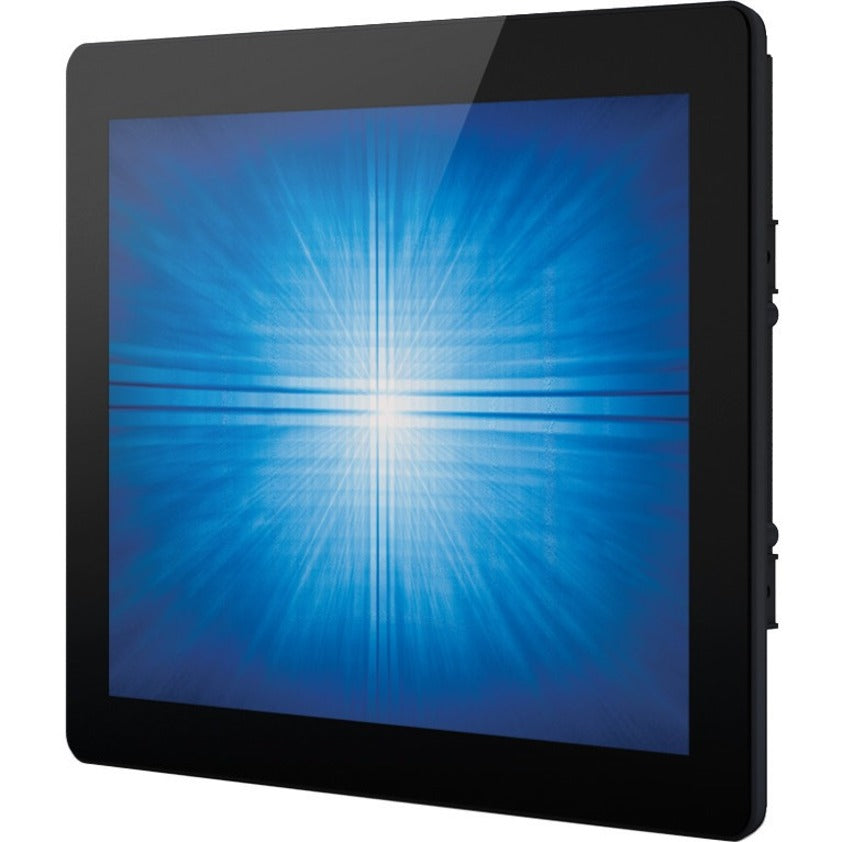

Elo 1590L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

Elo 1590L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

SKU: 1039238530      MFR: Elo Touch Solutions Inc

GTIN: 815335025785

Product Description

Elo 1590L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E326154

Features

  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming entertainment and self-administration booth applications
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort

Product Details

Product TypeOpen-frame LCD Touchscreen Monitor
Environmentally FriendlyYes
Environmental CertificationTÜV
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VGAYes
DisplayPortYes
Screen Size Class15"
ColorBlack
Brightness250 Nit
Screen ModeXGA
Color Supported16.2 Million Colors
Viewable Screen Size15"
Maximum Resolution1024 x 768
Brand NameElo
Contrast Ratio700:1
Mount TypeRack-mountable
Aspect Ratio4:3
Response Time16 ms
Limited Warranty3 Year
Touchscreen Type5-wire Resistive
Operating Power Consumption12.50 W
Height10.4"
Width13.2"
Depth1.7"
ManufacturerElo Touch Solutions Inc
Product Model1590L
Product Name1590L 15" Open Frame Touchscreen (Rev B)
Manufacturer Part NumberE326154
Manufacturer Website Addresshttp://www.elotouch.com
Marketing InformationThe Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1590L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the 15-inch open frame is perfect for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel single-touch display options include AccuTouch® five-wire resistive IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.

  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Package Contents
  • 1590L 15" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Weight (Approximate)6.40 lb
View full details
$619.99 USD
$619.99
Sale Sold out

In Stock - 7 (Available by Sat, Jan 04 - Wed, Jan 08)


Update


Shipping calculated at checkout.

Elo 1590L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E326154

Features

  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming entertainment and self-administration booth applications
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort

Product Details

Product TypeOpen-frame LCD Touchscreen Monitor
Environmentally FriendlyYes
Environmental CertificationTÜV
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VGAYes
DisplayPortYes
Screen Size Class15"
ColorBlack
Brightness250 Nit
Screen ModeXGA
Color Supported16.2 Million Colors
Viewable Screen Size15"
Maximum Resolution1024 x 768
Brand NameElo
Contrast Ratio700:1
Mount TypeRack-mountable
Aspect Ratio4:3
Response Time16 ms
Limited Warranty3 Year
Touchscreen Type5-wire Resistive
Operating Power Consumption12.50 W
Height10.4"
Width13.2"
Depth1.7"
ManufacturerElo Touch Solutions Inc
Product Model1590L
Product Name1590L 15" Open Frame Touchscreen (Rev B)
Manufacturer Part NumberE326154
Manufacturer Website Addresshttp://www.elotouch.com
Marketing InformationThe Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1590L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the 15-inch open frame is perfect for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel single-touch display options include AccuTouch® five-wire resistive IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.

  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Package Contents
  • 1590L 15" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Weight (Approximate)6.40 lb
