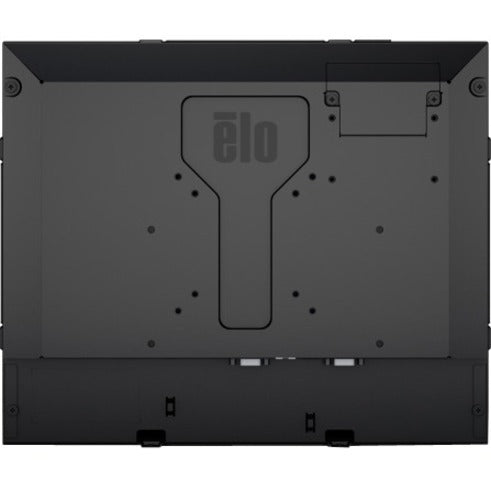

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

SKU: 1039238614      MFR: Elo Touch Solutions Inc

GTIN: 815335025822

Product Description

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 800:1 - 250 Nit 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E326942

Features

  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • The IntelliTouch Surface Wave touchscreen innovation conveys unrivaled picture clarity determination light transmission and dependability since it uses clear glass that keeps on working regardless of the possibility of scratches
  • HDMI interface allows connectivity to a variety of HD devices including gaming consoles laptop PCs Blu-ray players digital cameras and many others for the ultimate high-definition display

Product Details

Product TypeOpen-frame LCD Touchscreen Monitor
Horizontal Viewing Angle170°
Vertical Viewing Angle160°
Environmentally FriendlyYes
Environmental CertificationTÜV
TouchscreenYes
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Operating Power Consumption17.80 W
Standby Power Consumption1.50 W
Native Contrast Ratio1000:1
HDMI Version1.3
VGAYes
DisplayPortYes
Serial PortYes
USB StandardUSB 2.0
Off-Mode Power Consumption500 mW
Energy Consumption per Year30 kWh
Panel TechnologyThin Film Transistor (TFT)
Horizontal Frequency30 kHz to 82 kHz
Curved ScreenNo
TAA CompliantNo
Vertical Frequency50 Hz to 75 Hz
DisplayPort Version1.1a
Screen Size Class17"
Mean Time Between Failures (MTBF)5.7 Year
Country of OriginChina
Height12.1"
Width14.5"
Depth1.9"
ColorBlack
Brightness250 Nit
Brightness225 Nit
Screen ModeSXGA
Color Supported16.7 Million Colors
Viewable Screen Size17"
Maximum Resolution1280 x 1024
Brand NameElo
FeaturesOn-screen Display (OSD)
Contrast Ratio800:1
ManufacturerElo Touch Solutions Inc
Product Model1790L
Product Name1790L 17" Open Frame Touchscreen (Rev B)
Mount TypeFront Mount
Screen SurfaceAnti-glare
Aspect Ratio5:4
Manufacturer Part NumberE326942
Manufacturer Website Addresshttp://www.elotouch.com
Marketing Information

Elo 1790L Open Frame Touchscreen Display

The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start Elo's open frames deliver outstanding image clarity and light transmission with stable drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes touch technologies and brightness offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

More from the Manufacturer
Packaged Quantity1
Package Contents
  • 1790L 17" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • Quick Install Guide
  • EEI Label
  • Japan Class-B TM info sheet
  • Side Mount Brackets and w/Screws
Response Time5 ms
Limited Warranty3 Year
Touchscreen TypeIntelliTouch Surface Wave
Weight (Approximate)7.94 lb
View full details
$641.99 USD
$641.99
Sale Sold out

In Stock - 32 (Available by Sat, Jan 04 - Wed, Jan 08)
