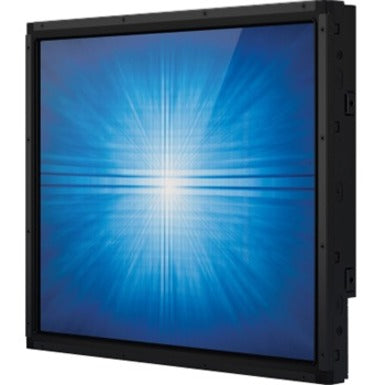

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

SKU: 1039238553      MFR: Elo Touch Solutions Inc

GTIN: 815335026102

Product Description

Elo 1790L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - Surface Acoustic Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E334726

Features

  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming entertainment and self-administration booth applications
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • Features HDMI input to get connected with the top of the line PCs Blu-ray players and cutting edge gaming consoles

Product Details

Operating Power Consumption17.80 W
VGAYes
DisplayPortYes
Screen Size Class17"
Height12.1"
Width14.5"
Depth1.9"
ColorBlack
Brightness250 Nit
Screen ModeSXGA
Color Supported16.7 Million Colors
Viewable Screen Size17"
Maximum Resolution1280 x 1024
Brand NameElo
Contrast Ratio800:1
ManufacturerElo Touch Solutions Inc
Product Model1790L
Product Name1790L 17" Open Frame Touchscreen (Rev B)
Mount TypeFront Mount
Aspect Ratio5:4
Manufacturer Part NumberE334726
Manufacturer Website Addresshttp://www.elotouch.com
Marketing Information

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the 17-inch open frame is perfect for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.

Touch ready.

The 1790L is available with a choice of industry-leading touch technologies in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel single-touch display options include AccuTouch® five-wire resistive IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • High quality energy-saving LED panel
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
Package Contents
  • 1790L 17" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • Japan Class-B info sheet
Response Time5 ms
Limited Warranty3 Year
Touchscreen TypeSurface Acoustic Wave
Weight (Approximate)7.94 lb
VESA Mount CompatibleYes
Backlight TechnologyLED
HDMIYes
USBYes
Environmental CertificationWEEE
Environmentally FriendlyYes
Product TypeOpen-frame LCD Touchscreen Monitor
Environmental CertificationTÜV
