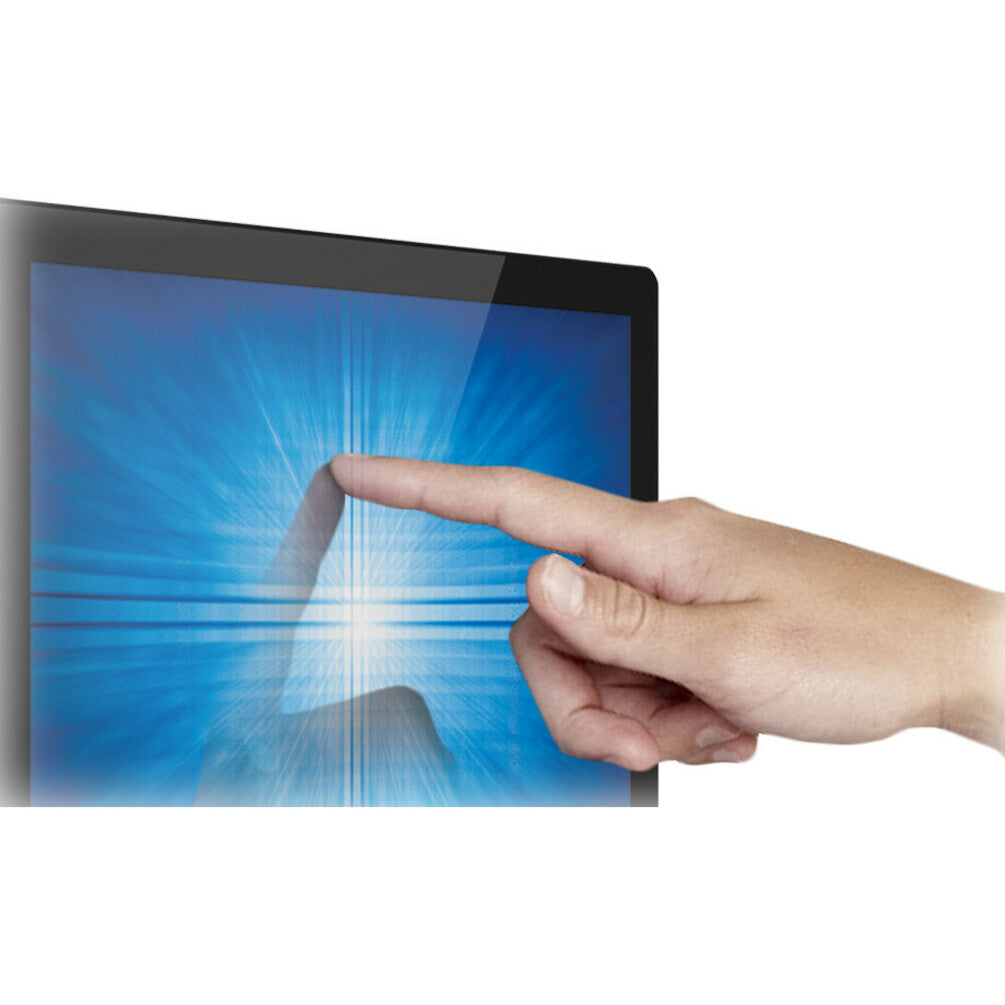

Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms

SKU: 1039058867      MFR: Elo Touch Solutions Inc

GTIN: 815335025877

Product Description

Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 1000:1 - 250 Nit 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E328497

Features

  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 1000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • Features HDMI input to get connected with the top of the line PCs Blu-ray players and cutting edge gaming consoles
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Product Details

Product TypeOpen-frame LCD Touchscreen Monitor
Horizontal Viewing Angle170°
Vertical Viewing Angle160°
Environmentally FriendlyYes
Environmental CertificationTÜV
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Operating Power Consumption22 W
VGAYes
DisplayPortYes
Panel TechnologyThin Film Transistor (TFT)
Curved ScreenYes
Screen Size Class19"
Height13.5"
Width16.3"
Depth2"
ColorBlack
Brightness250 Nit
Brightness225 Nit
Screen ModeSXGA
Color Supported16.7 Million Colors
Viewable Screen Size19"
Maximum Resolution1280 x 1024
Brand NameElo
FeaturesOn-screen Display (OSD)
Contrast Ratio1000:1
ManufacturerElo Touch Solutions Inc
Product Model1990L
Product Name1990L 19" Open Frame Touchscreen (Rev B)
Mount TypeFront Mount
Aspect Ratio5:4
Manufacturer Part NumberE328497
Manufacturer Website Addresshttp://www.elotouch.com
Marketing InformationThe Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1990L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the open-frame touchscreen is perfect for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies in single- or multi-touch technology including IntelliTouch® single-touch surface acoustic wave (SAW) and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
Packaged Quantity1
Package Contents
  • 1990L 19" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Response Time5 ms
Limited Warranty3 Year
Touchscreen TypeIntelliTouch Surface Wave
Weight (Approximate)10.14 lb
TouchscreenYes
Standby Power Consumption1.50 W
HDMI Version1.3
Serial PortYes
USB StandardUSB 2.0
Off-Mode Power Consumption500 mW
Energy Consumption per Year34 kWh
DisplayPort Version1.1a
Mean Time Between Failures (MTBF)5.7 Year
View full details
$592.99 USD
$592.99
Sale Sold out

In Stock - 8 (Available by Sat, Jan 04 - Wed, Jan 08)


Update


Shipping calculated at checkout.

Elo 1990L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 5 ms - 19" Class - IntelliTouch Surface Wave - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 1000:1 - 250 Nit 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E328497

Features

  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 1000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • Features HDMI input to get connected with the top of the line PCs Blu-ray players and cutting edge gaming consoles
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Product Details

Product TypeOpen-frame LCD Touchscreen Monitor
Horizontal Viewing Angle170°
Vertical Viewing Angle160°
Environmentally FriendlyYes
Environmental CertificationTÜV
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Operating Power Consumption22 W
VGAYes
DisplayPortYes
Panel TechnologyThin Film Transistor (TFT)
Curved ScreenYes
Screen Size Class19"
Height13.5"
Width16.3"
Depth2"
ColorBlack
Brightness250 Nit
Brightness225 Nit
Screen ModeSXGA
Color Supported16.7 Million Colors
Viewable Screen Size19"
Maximum Resolution1280 x 1024
Brand NameElo
FeaturesOn-screen Display (OSD)
Contrast Ratio1000:1
ManufacturerElo Touch Solutions Inc
Product Model1990L
Product Name1990L 19" Open Frame Touchscreen (Rev B)
Mount TypeFront Mount
Aspect Ratio5:4
Manufacturer Part NumberE328497
Manufacturer Website Addresshttp://www.elotouch.com
Marketing InformationThe Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1990L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention the open-frame touchscreen is perfect for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies in single- or multi-touch technology including IntelliTouch® single-touch surface acoustic wave (SAW) and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
Packaged Quantity1
Package Contents
  • 1990L 19" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Response Time5 ms
Limited Warranty3 Year
Touchscreen TypeIntelliTouch Surface Wave
Weight (Approximate)10.14 lb
TouchscreenYes
Standby Power Consumption1.50 W
HDMI Version1.3
Serial PortYes
USB StandardUSB 2.0
Off-Mode Power Consumption500 mW
Energy Consumption per Year34 kWh
DisplayPort Version1.1a
Mean Time Between Failures (MTBF)5.7 Year
