• 2294L 21.5IN WIDE FHD LCD WVA
    2294L 21.5IN WIDE FHD LCD WVA
1 1

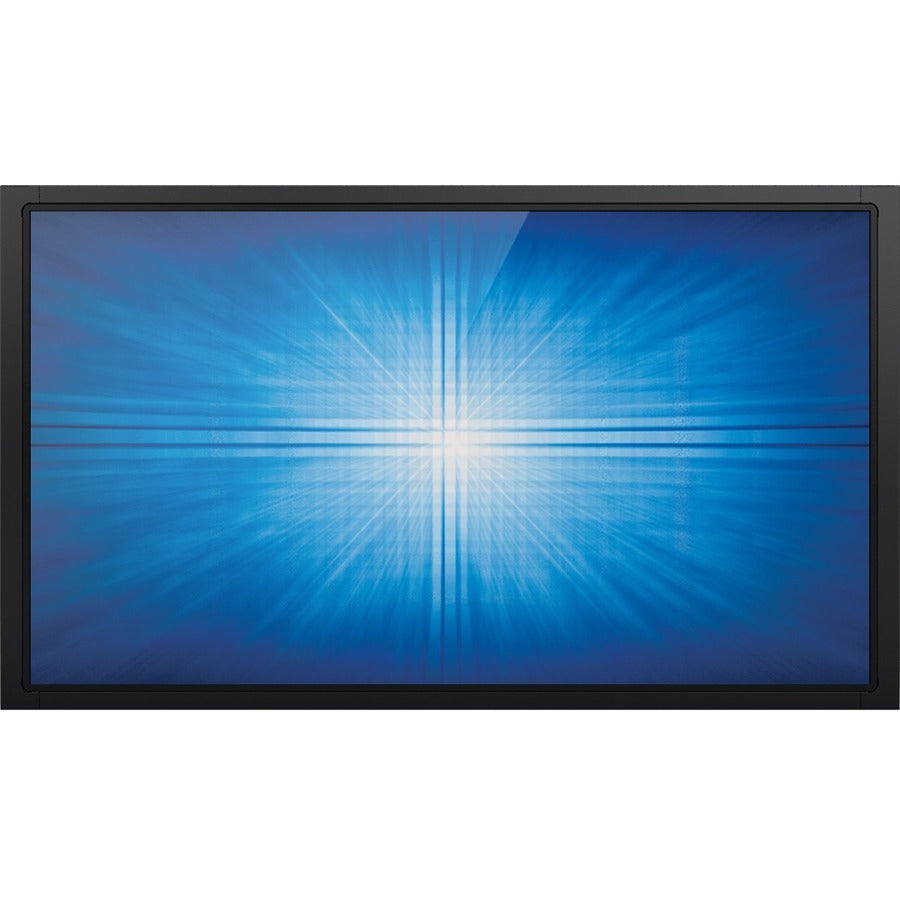

Elo 2294L 21.5" Open-frame LCD Touchscreen Monitor - 16:9 - 14 ms

Elo 2294L 21.5" Open-frame LCD Touchscreen Monitor - 16:9 - 14 ms

SKU: 1039238412      MFR: Elo Touch Solutions Inc

GTIN: 815335025860

Product Description

Elo 2294L 21.5" Open-frame LCD Touchscreen Monitor - 16:9 - 14 ms - 22" Class - IntelliTouch Surface Wave - 1920 x 1080 - Full HD - 16.7 Million Colors - 1000:1 - 250 Nit 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV RoHS China RoHS WEEE - 3 Year

Manufacturer : Elo Touch Solutions Inc

Manufacturer Part No : E327914

Features

  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 1000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • Features HDMI input to get connected with the top of the line PCs Blu-ray players and cutting edge gaming consoles
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Product Details

Product TypeOpen-frame LCD Touchscreen Monitor
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Environmentally FriendlyYes
Environmental CertificationTÜV
TouchscreenYes
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
Operating Power Consumption25 W
Standby Power Consumption1.50 W
HDMI Version1.3
VGAYes
DisplayPortYes
USB StandardUSB 2.0
Off-Mode Power Consumption500 mW
Energy Consumption per Year39 kWh
Horizontal Frequency30 kHz to 82 kHz
Vertical Frequency50 Hz to 75 Hz
DisplayPort Version1.1a
Screen Size Class22"
Mean Time Between Failures (MTBF)5.7 Year
Height11.7"
Width20.1"
Depth1.7"
ColorBlack
Brightness250 Nit
Brightness225 Nit
Screen ModeFull HD
Color Supported16.7 Million Colors
Viewable Screen Size21.5"
Maximum Resolution1920 x 1080
Brand NameElo
FeaturesOn-screen Display (OSD)
Contrast Ratio1000:1
ManufacturerElo Touch Solutions Inc
Product Model2294L
Product Name2294L 21.5" Open Frame Touchscreen (Rev B)
Mount TypeFront Mount
Aspect Ratio16:9
Manufacturer Part NumberE327914
Manufacturer Website Addresshttp://www.elotouch.com
Marketing InformationThe Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 2294L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel the open-frame touchscreen instantly grabs and holds the users' attention for kiosks casino and amusement retail self-service and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies in single- dual- or multi-touch technology including IntelliTouch® single- and dual-touch surface acoustic wave (SAW) and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.

Other features.
  • High definition LCD display offers ultimate HD interactivity clarity and resolution
  • 10-touch TouchPro projected capacitive with two-touch Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
  • Viewing angle of 178° (h) x 178° (v) for sharp colors and graphics in both portrait and landscape modes
  • Display Port and VGA video interfaces
Packaged Quantity1
Package Contents
  • 2294L 21.5" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Response Time14 ms
Limited Warranty3 Year
Touchscreen TypeIntelliTouch Surface Wave
Weight (Approximate)11.24 lb
Environmental CertificationWEEE
View full details
$612.99 USD
$612.99
Sale Sold out

In Stock - 3 (Available by Sat, Jan 04 - Wed, Jan 08)
