Stay productive and on the go with our certified power system. This innovative truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment independent screen positioning and an adjustable back-tilt keyboard tray.

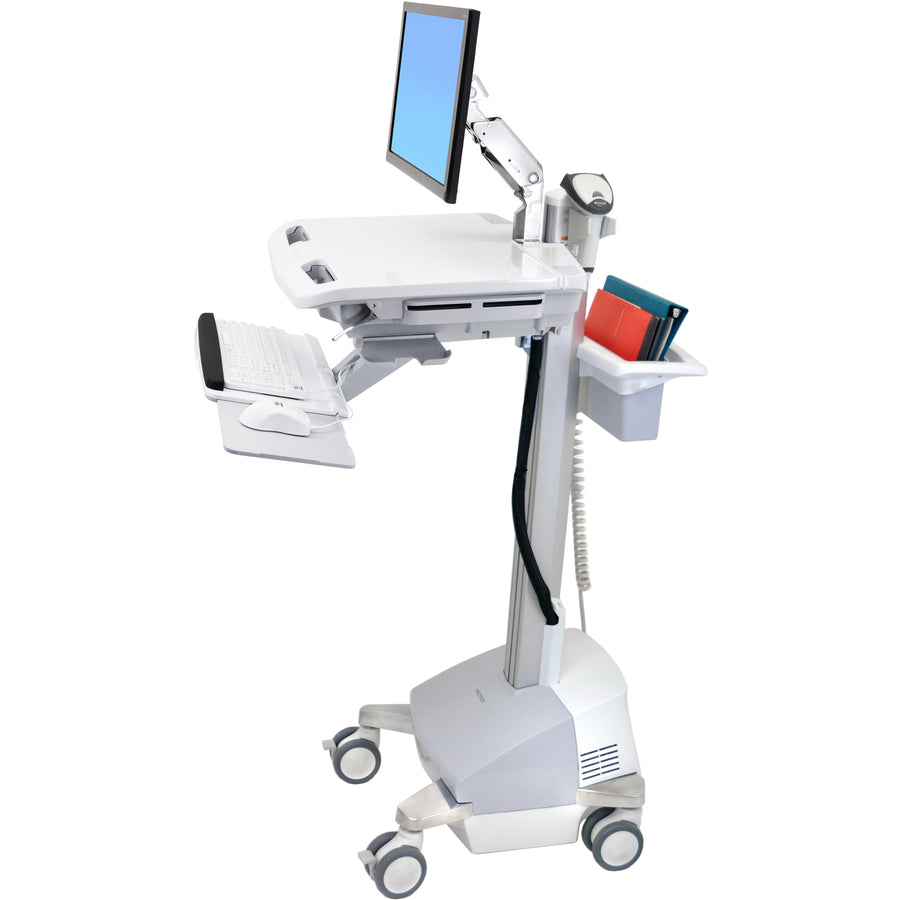

• StyleView EMR Cart with LCD Arm SLA Powered
• LCD Arm
• Work Surface
• Secure CPU Compartment
• Four-port USB Hub
• Scanner Holder Bracket
• Mouse Holder
• Wrist Rest
• Back-tilt Keyboard Tray
• Left/Right Mouse Tray
• Rear Handle
• Storage Basket
• Cable Storage
• 4 x Caster (Two Locking)
• Two-battery 66 Ah Power System
• Coiled Cord (10')
• 3 x AC Outlets
• Power System User Interface
• StyleLink Software

• LCD: 22"
• Lift: 27"
• Tilt: 65°
• Pan: 180°
• Rotation: 360° P/L
• Monitor up/down tilt = +60°/-5°
• LCD and work surface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)
• Portrait screen orientation may be incompatible with widescreen displays > 19"
• LCD arm weight capacity: 5-14 lbs
• Work surface and keyboard tray weight capacity ? 8 lbs (3.6 kg)
• CPU compartment weight capacity ? 13 lbs (5.9 kg)
• Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90 as well as NFPA leakage current limits
• Power System User Interface integrated conveniently on the work surface (includes visual and audible battery status indicator)
• Power system complies with EMI limits of FCC Part 15 Class A
• Easy access to components for field replacement and serviceability: keyboard LEDs PC boards (including the user interface). Easier faster upkeep and service means less down time
• TAA (Trade Agreements Act) compliant
• Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17"

VESA:

• 75 x 75mm
• 100 x 100mm
