VESA:

• FDMI
• MIS-D
• C (hole patterns = 100 x 100 mm and 75 x 75 mm)

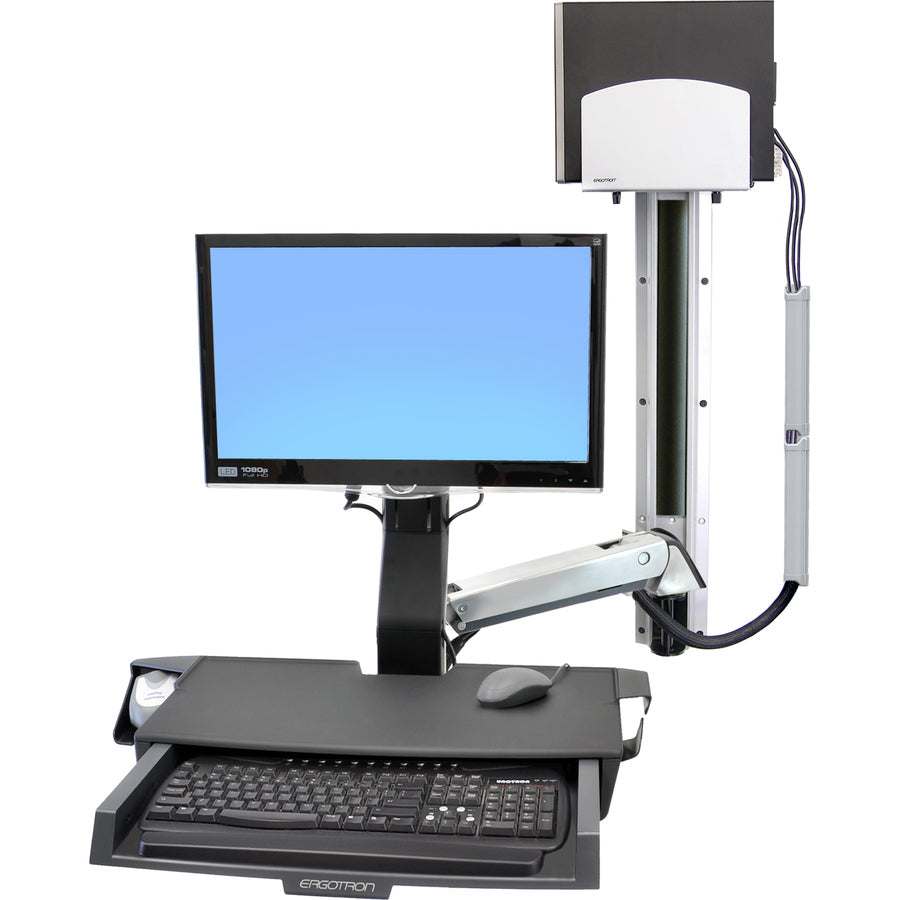

This complete system provides easy re-positioning of your entire workstation-move your display keyboard mouse and barcode scanner in a single motion!

Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray which facilitates caregiver work flow. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords making cleaning easy.

• HD Combo Arm
• 34" Wall Track with (2) Black Track Cover
• Medium Silver CPU Holder
• CPU Spacer
• 2 x 10" Cable Channel
• CPU and Arm Track Mount Bracket Kit
• Wall Track Fasteners for Concrete and Wood
• CPU Direct Wall Mount Kit
• Height Adjustable LCD Mount
• Wrist Rest
• Scanner and Mouse Holder
• Integrated Keyboard Tray
• Handle
• VESA Monitor Mounting Kit
• Cable Tie
• Mounting Hardware

• Support work flow needs with sturdy worksurface: 22.75"W x 10.6"D
• Weight Capacity - Display = 6-18 lbs
• Weight Capacity - Worksurface = 10 lbs
• Weight Capacity - Keyboard mouse and barcode scanner = 4 lbs
• Easy-to-clean features promote superior infection control
• Barcode scanner holder provides easy access to hand-held scanner
• Extend LCD and keyboard up to 43" from wall
• Clean concealed and neat routing of cables through the expansive cable management system
• LCD and keyboard adjusts 20" in tandem with single-motion
• LCD adjusts 5" independently
• Maximum LCD height adjustment = 25"
• Monitor up/down tilt = +25°/-5°
