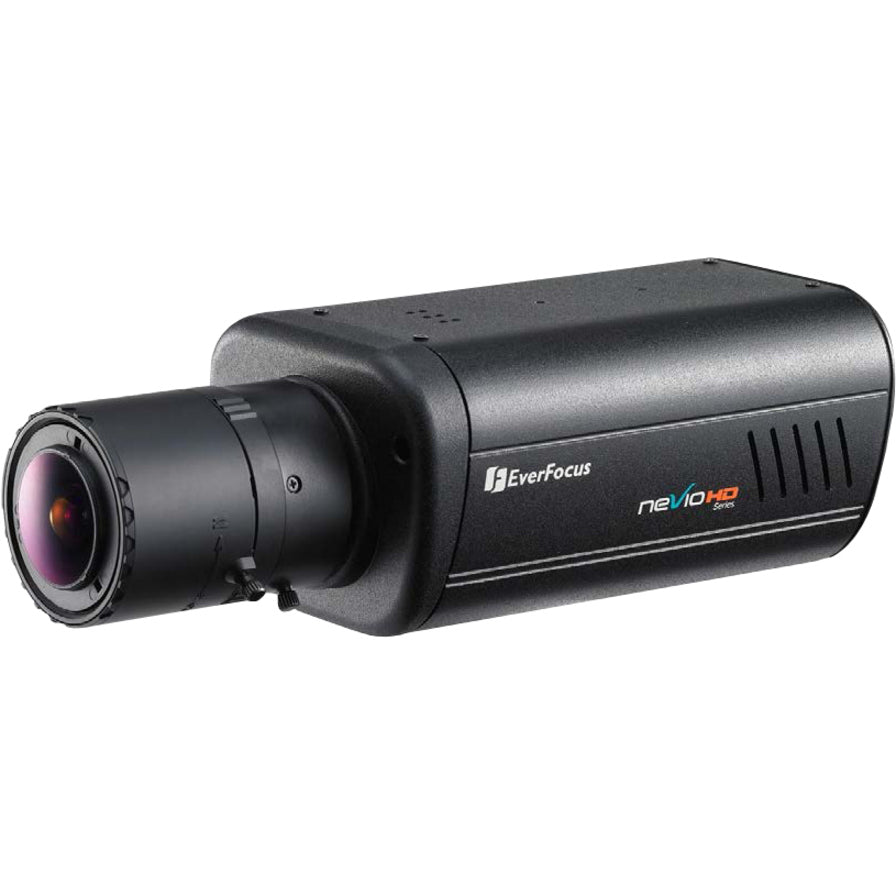

The EAN Plus series is a box-type IP camera delivering image quality of up to 3-megapixel. The EAN Plus series features the Wide Dynamic Range (WDR) function which can provide clear images even under back light circumstances where intensity of illumination can vary excessively. A built-in micro SD card slot and Power over Ethernet (IEEE802.3af) features are also provided. You can power the camera over the network or by connecting the camera to a 12V DC power supply. The camera also features H.264 / MJPEG multi-stream output for simultaneous live monitoring and high-resolution recording. Since the EAN Plus series conforms to ONVIF / PSIA for compatibility with other network video devices it interoperates with a wide variety of hardware and software systems. The EAN Plus series is designed for simple installation and supports all types of indoor mounting applications.

• EAN3300 3 Megapixel Box Camera
• Software CD
• Quick Installation Guide
• C-mount Lens Adapter
• ¼-20 UNC Thread Mounting Bracket
• 2 x Screws
• Hexagon Wrench
• Power Pigtail Cable

• CE
• FCC

• NTSC
• PAL

• OSD
• Power LED

• Supported OS: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)
• Processor: Intel Core2 Duo 2 GHz or higher
• RAM: 1 GB
• 100 Mbps Network Card
• Screen Resolution: 1024 x 768 Pixels or higher 32-bit Pixel Color Resolution
• DirectX 9.0c
• Supported Browsers: Microsoft Internet Explorer 7 or higher
