Industrial Networking

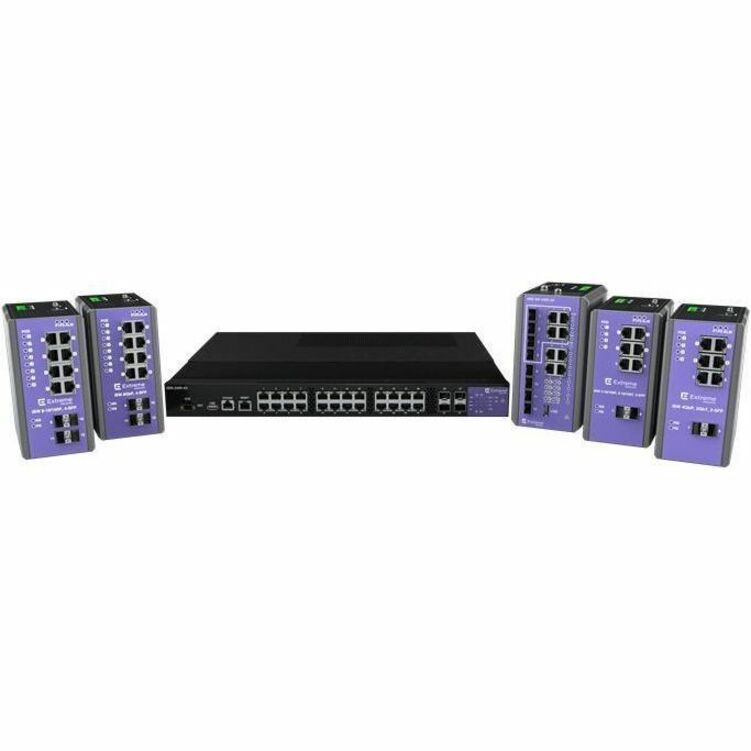

Designed for industrial use Extreme Industrial Switches provide continuous uptime manageability and operational efficiency. With full PoE+ power per PoE port each switch offers the performance needed for todays power-hungry surveillance devices and WLAN access points.

Extreme Industrial Switches are an excellent choice for industrial environments including intelligent transportation systems utilities and smart cities. Full redundant ring technology creates fault-tolerant networks with high availability with industry standard technologies.

Extreme Industrial Switches can automatically connect to a Fabric Connect network via the Fabric Attach software-based feature which enables the switches to be quickly mapped as endpoints within a virtualized Fabric Connect service.

Intelligent and Resilient Layer 2 Services

ISW switches provide intelligent Layer 2 switching including Spanning Tree (STP RSTP MSTP) resilient LACP and advanced Ethernet Ring Protection protocols. They support multiple ring topologies such as Single/Dual Ring along with Dual Homing and Balancing Chain capabilities enabling highly flexible and resilient deployment options. Having a reliable network is very important to Ethernet applications especially in an Industrial domain. ISW-Series Managed Industrial Ethernet Switches provide fast failover ring protection ensuring seamless network operation in the event of a link loss or a network device error.

Fabric Attach

Fabric Attach capability on the ISW Series helps automate the connection to Extreme's campus-based Fabric Connect solution. Fabric Attach provides zero-touch edge provisioning and allows ISW switches to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure.

Flexible PoE

The ISW Series offers models that include standards-based IEEE 802.3af 802.3at and up to IEEE802.3bt on select models enabling flexible 15W/30W/60W/90W of PoE capability per port. PoE eliminates the need for additional electrical cabling and circuits otherwise needed to power Industrial IoT devices or wireless APs.

Quality of Service

QoS (Quality of Service) features allow you to allocate network resources to mission-critical applications at the expense of applications that are less sensitive to such factors as time delays or network congestion. You can configure your network to prioritize specific types of traffic ensuring that each type receives the appropriate QoS level. The ISW switches can be configured to have 8 output Class of Service (CoS) queues per port and support Strict Priority with Weighted Round Robin scheduling.

Security

Edge Security is important when connecting 3rd party devices and hosts to the switch. ISW series supports both MAC authentication and 802.1X EAP authentication mechanisms on a per port basis. ISW switches support both RADIUS and TACACS+ for access control. ACL (Access Control List) function supports access control security for MAC address IP address Layer4 Port and Type of Service. Each has five actions: Deny Permit Queue Mapping CoS (Class of Service) Marking and Copy Frame. You can set the default ACL rule to Permit or Deny
