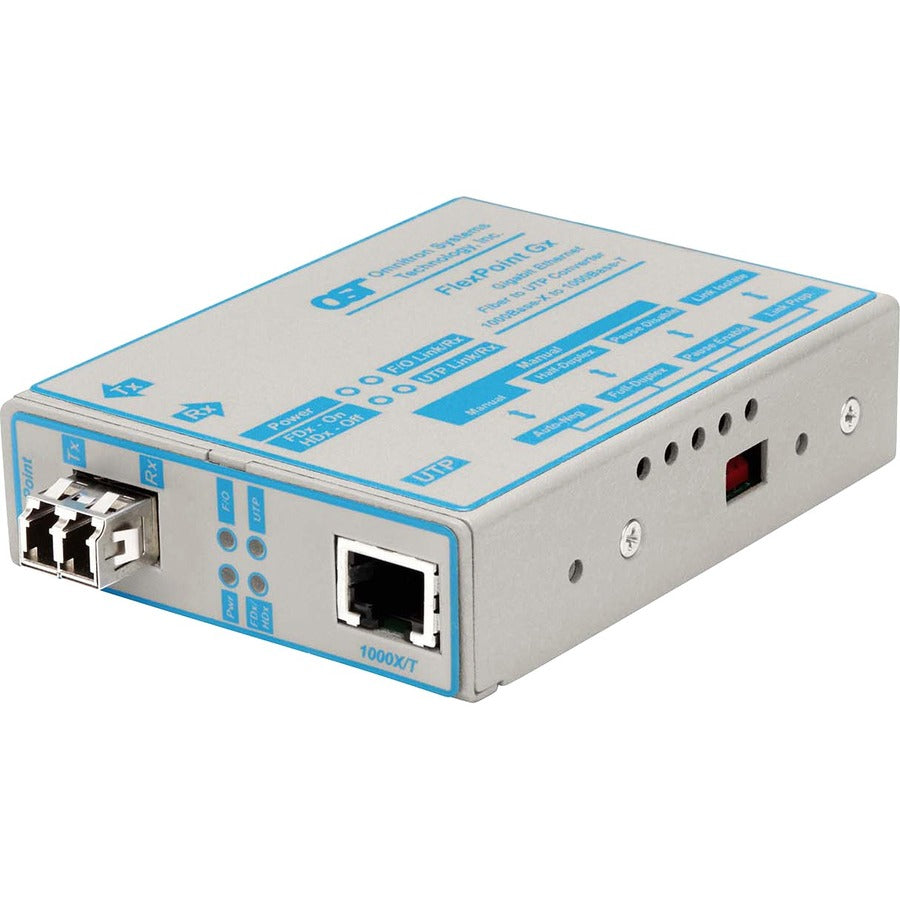

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m

SKU: 1015802021      MFR: Omnitron Systems

GTIN: 0800975022539

Product Description

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 LC Multimode 550m - 1 x 1000BASE-T; 1 x 1000BASE-SX; Univ. AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 4672-2

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard100/140 µm
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of LC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
LC Port TypeDuplex
Fiber Optic Wavelength850 nm
Country of OriginUnited States
Height1"
Width3"
Depth4"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
Product SeriesGX
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model4672-x
Product NameFlexPoint Gx LC Multimode 12km Univ. AC Powered
Network Technology1000Base-T
Package TypeRetail
Product LineFlexPoint
Input Voltage240 V AC
Manufacturer Part Number4672-2
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe FlexPoint Gx is a 1000BASE-T UTP to 1000BASE-SX/LX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The FlexPoint Gx auto-negotiates with most network devices for quick installations. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration with different network requirements.

The FlexPoint Gx features an auto-sensing UTP port that adjusts to the duplex and pause mode of the attached device. A switch provides manual control over the Half/Full-Duplex operation of UTP port. The port features a crossover switch that facilitates connection to a workstation or switch.

  • The FlexPoint Gx is a Gigabit Ethernet 1000BASE-T to 1000BASE-SX/LX fiber media converter
  • Fiber port supports auto or manual negotiation
  • UTP port supports Full and Half-Duplex operation
  • Extends network distances up to 80km
  • User-selectable or Auto-sensing Pause flow control
  • Supports most network interfaces with a wide variety of cable and connector types
  • User-selectable Link Modes for quick fault detection
  • Labeled status LEDs and switches for quick and easy installation
  • Features a crossover switch for connection to switches or workstations
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
  • Powered Chassis
  • Completely software independent with no installation of drivers required
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Maximum Distance Supported1804.46 ft
Package Contents
  • FlexPoint Gx LC Multimode 12km Univ. AC Powered
  • Univ. Power Supply - 100-240Volt / 50-60Hz
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 6-15VDC via 2.5mm barrel (0.4A @ 9VDC)
  • 5VDC via Molex connector (0.6A @ 5VDC)
  • 100-240VAC/50-60Hz (0.04A @ 120VAC)
Weight (Approximate)6 oz
Product FamilyFlexPoint GX
