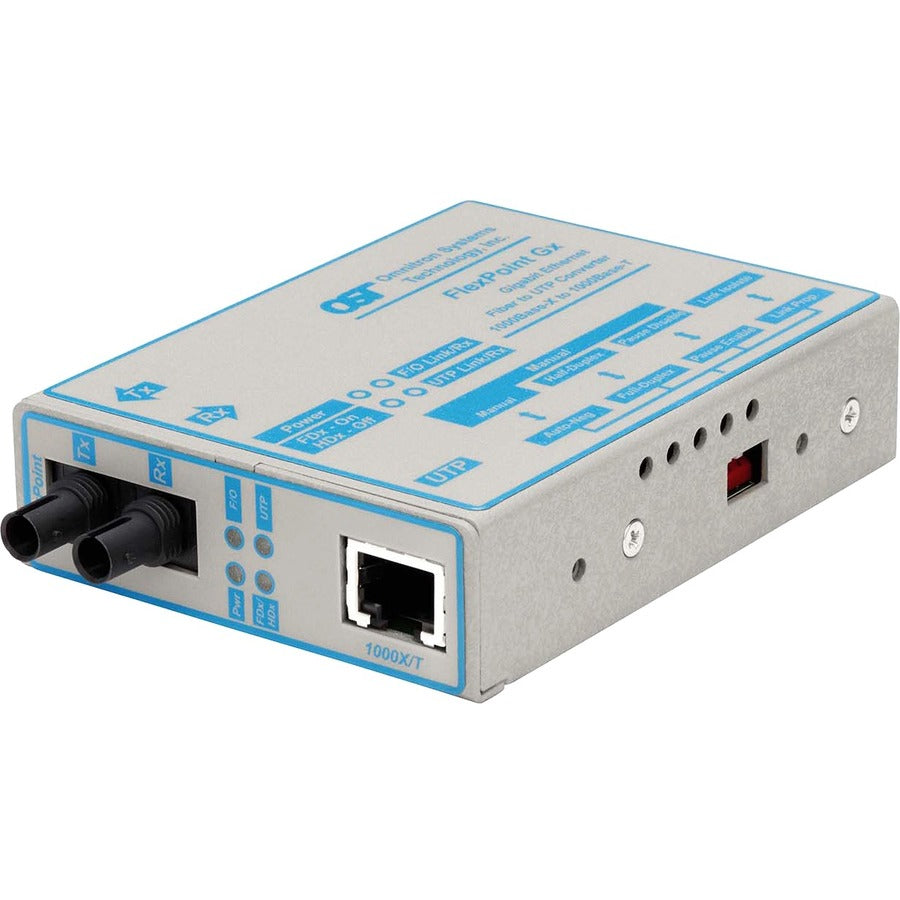

FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m
FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m
SKU: 1013098806 MFR: Omnitron Systems
GTIN: 800975014275
Product Description
FlexPoint 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m - 1 x 1000BASE-T; 1 x 1000BASE-SX; US AC Powered; Lifetime Warranty
Manufacturer : Omnitron Systems
Manufacturer Part No : 4376-1
Features
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With Twisted Pair cable get the desired data transfer rate up to a required distance
- With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- Can be placed on Desktop surface for standalone installation
Product Details
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
The FlexPoint Gx auto-negotiates with most network devices for quick installations. Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration with different network requirements.
The FlexPoint Gx features an auto-sensing UTP port that adjusts to the duplex and pause mode of the attached device. A switch provides manual control over the Half/Full-Duplex operation of UTP port. The port features a crossover switch that facilitates connection to a workstation or switch.
- The FlexPoint Gx is a Gigabit Ethernet 1000BASE-T to 1000BASE-SX/LX fiber media converter
- Fiber port supports auto or manual negotiation
- UTP port supports Full and Half-Duplex operation
- Extends network distances up to 80km
- User-selectable or Auto-sensing Pause flow control
- Supports most network interfaces with a wide variety of cable and connector types
- User-selectable Link Modes for quick fault detection
- Labeled status LEDs and switches for quick and easy installation
- Features a crossover switch for connection to switches or workstations
- Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint
- Powered Chassis
- Completely software independent with no installation of drivers required
- Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
- FlexPoint Gx ST Multimode 550m US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
Input Voltage:
- 6-15VDC via 2.5mm barrel (0.4A @ 9VDC)
- 5VDC via Molex connector (0.6A @ 5VDC)
- 100-120VAC/60Hz (0.04A @ 120VAC)
