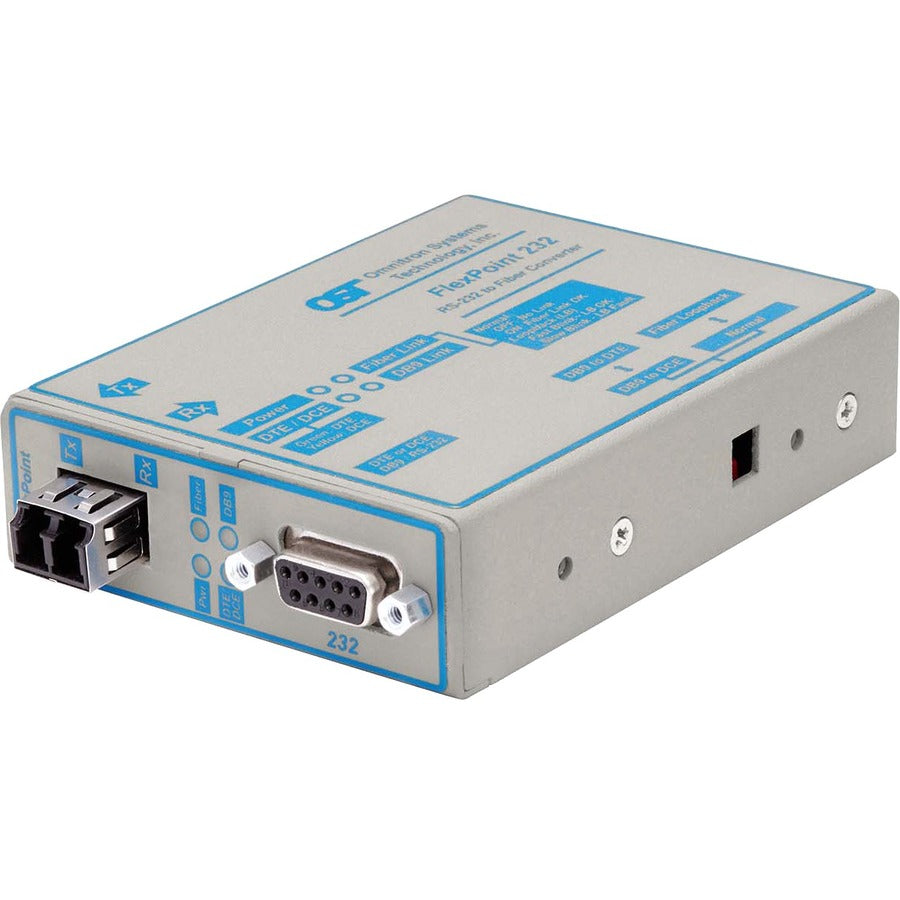

FlexPoint RS-232 Serial Fiber Media Converter DB-9 LC Single-mode 30km

FlexPoint RS-232 Serial Fiber Media Converter DB-9 LC Single-mode 30km

SKU: 1017139852      MFR: Omnitron Systems

GTIN: 0800975023406

Product Description

FlexPoint RS-232 Serial Fiber Media Converter DB-9 LC Single-mode 30km - 1 x RS-232; 1 x LC Single-mode; No Power Adapter; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 4489-20

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • Tuck the device out of the way with its Wall Mounting feature

Product Details

Product TypeTransceiver/Media Converter
Product FamilyFlexPoint 232
Number of LC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
LC Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Maximum Distance Supported18.64 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard9/125 µm
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width3"
Depth4"
Product Series232
ManufacturerOmnitron Systems
Product Model4489-x
Product NameFlexPoint 232 DB-9 LC Single-mode 30km No Power Adapter
Package TypeRetail
Product LineFlexPoint
Manufacturer Part Number4489-20
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe FlexPoint 232 is a serial RS-232 to fiber media converter automatically supporting speeds of up to 115200 baud. Models are available with multimode or single-mode fiber port capable of extending serial connection up to 28km.

The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF and hardware flow control via RTS CTS DCD DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
Package Contents
  • FlexPoint 232 DB-9 LC Single-mode 30km No Power Adapter
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)6 oz
Number of Serial Ports1
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Compatibility
  • 5-Module shelf
  • 14-Module power-redundant Powered Chassis
Input Voltage9 V DC
Additional Information

Serial Port Type:

  • DB-9 (Female)

Input Voltage:

  • 6-15VDC via 2.5mm barrel (0.5A @ 9VDC)
  • 5VDC via Molex connector (0.6A @ 5VDC)
