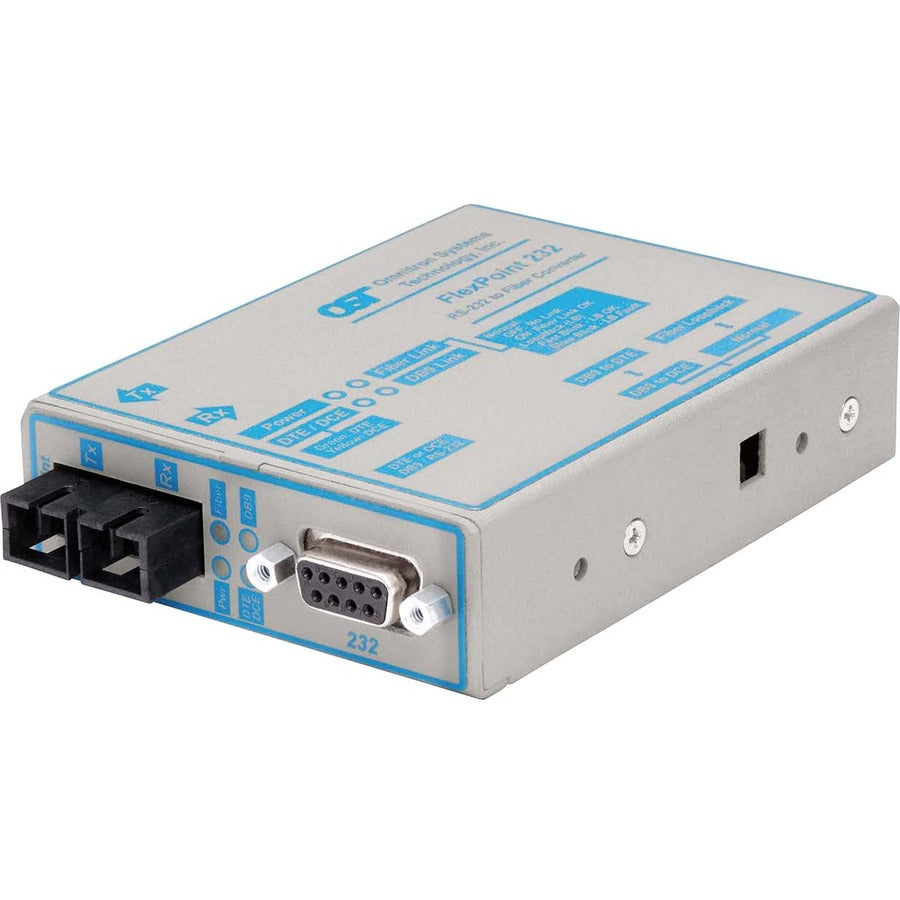

• FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Single-mode 30km
    FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Single-mode 30km
1 1

FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Single-mode 30km

FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Single-mode 30km

SKU: 1011796197      MFR: Omnitron Systems

GTIN: 800975030091

Product Description

FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Single-mode 30km - 1 x RS-232; 1 x SC Single-mode; Univ. AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 4484-2

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard9/125 µm
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Number of Serial Ports1
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width3"
Depth4"
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Product Series232
Brand NameOmnitron Systems
Compatibility

Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model4484-x
Product NameFlexPoint 232 DB-9 SC Single-mode 30km Univ. AC Powered
Package TypeRetail
Product LineFlexPoint
Input Voltage240 V AC
Manufacturer Part Number4484-2
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe FlexPoint 232 is a serial RS-232 to fiber media converter automatically supporting speeds of up to 115200 baud. Models are available with multimode or single-mode fiber port capable of extending serial connection up to 28km.

The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF and hardware flow control via RTS CTS DCD DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
Maximum Distance Supported18.64 Mile
Package Contents
  • FlexPoint 232 DB-9 SC Single-mode 30km Univ. AC Powered
  • Univ. Power Supply - 100-240Volt / 50-60Hz
  • User Manual
Limited WarrantyLifetime
Additional Information

Serial Port Type:

  • DB-9 (Female)

Input Voltage:

  • 6-15VDC via 2.5mm barrel (0.5A @ 9VDC)
  • 5VDC via Molex connector (0.6A @ 5VDC)
  • 100-240VAC/50-60Hz (0.05A @ 120VAC)
Weight (Approximate)6 oz
Product FamilyFlexPoint 232
View full details
$908.99 USD
$908.99
Sale Sold out

Back Order

Get it by Wed, May 07 - Mon, May 12


Update


Shipping calculated at checkout.
