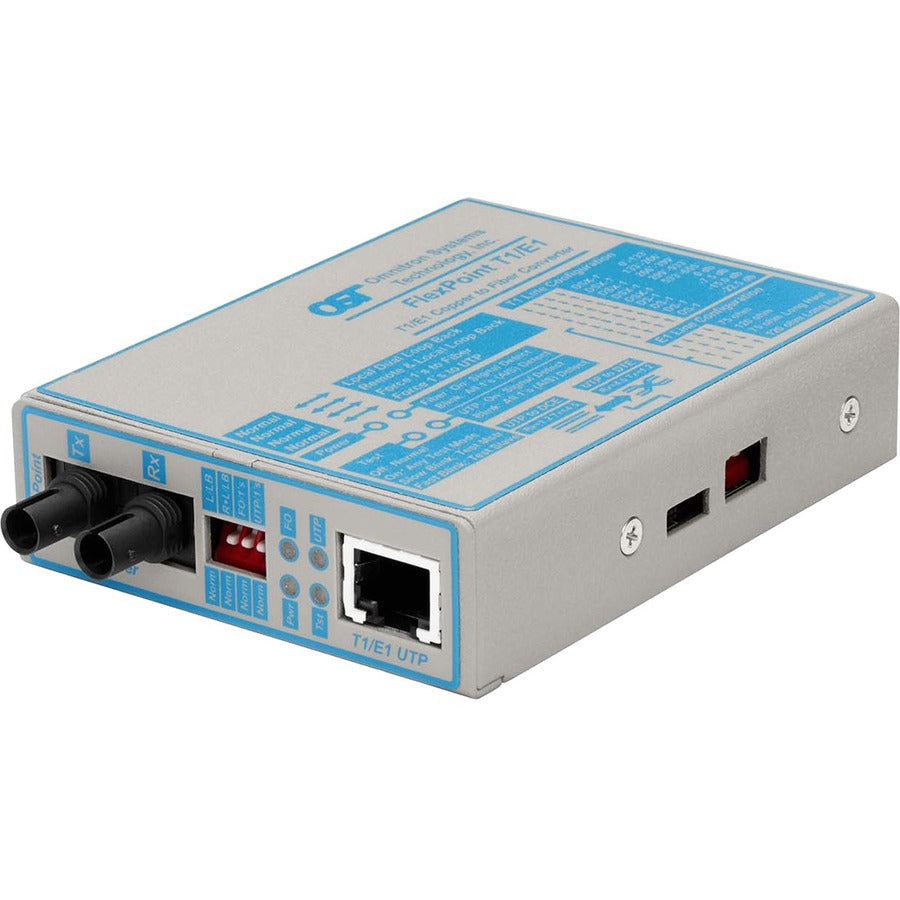

FlexPoint T1/E1 Fiber Media Converter RJ48 ST Single-Mode 30km

FlexPoint T1/E1 Fiber Media Converter RJ48 ST Single-Mode 30km

SKU: 10048068      MFR: Omnitron Systems

GTIN: 0800975011274

Product Description

FlexPoint T1/E1 Fiber Media Converter RJ48 ST Single-Mode 30km - 1 x T1/E1; 1 x ST Single-Mode; No Power Adapter; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 4473-0

Features

  • Expand your network capabilities with this 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link
  • Desktop installation makes it ideal for deployments outside the wiring closet

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
USBNo
DVINo
Network (RJ-45)No
Management PortNo
Number of ST Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
ST Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width3"
Depth4"
Product SeriesT1/E1
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model4473-x
Product NameFlexPoint T1/E1 ST Single-Mode 30km No Power Adapter
Network TechnologyT1/E1
Package TypeRetail
Product LineFlexPoint
Manufacturer Part Number4473-0
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing Information

The FlexPoint T1/E1 Copper to Fiber Media Converter is a twisted pair to fiber media converter and T1/E1 distance extender. It supports ANSI AT&T ITU and ETSI standards and AMI B8ZS and HDB3 line codes. LEDs display the T1/E1 link status diagnostic modes of operation and line segment errors. A crossover switch on the RJ45/RJ48 port makes it simple to connect the FlexPoint T1/E1 converter to DTE and DCE equipment like PBXs or CSUs and eliminates the need for crossover and custom cables to connect devices. It is equipped with dry relay contacts for connection to alarm equipment.

FlexPoint T1/E1 Copper to Fiber Media Converter can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in the 14-unit FlexPoint Powered Chassis which is available with redundant 110/220V AC or 48V DC power supplies.
Maximum Distance Supported18.64 Mile
Package Contents
  • FlexPoint T1/E1 ST Single-Mode 30km No Power Adapter
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)6 oz
Parallel PortNo
Digital AudioNo
Number of RJ-48 Ports1
Digital Audio/VideoNo
Carrier SupportedT-carrier/E-carrier
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Compatibility
  • FlexPoint 14-Unit 48VDC Power-Redundant Powered Chassis (4385)
  • FlexPoint 14-Unit 48VDC Single-Power Supply Powered Chassis (4386)
  • FlexPoint 14-Unit AC Power-Redundant Powered Chassis (4395)
  • FlexPoint 14-Unit AC Single-Power Supply Powered Chassis (4396)
Input Voltage9 V DC
Additional Information

Input Voltage:

  • 6-15VDC via 2.5mm barrel (0.5A @ 9VDC)
  • 5VDC via Molex connector (0.6A @ 5VDC)
Product FamilyFlexPoint T1/E1
