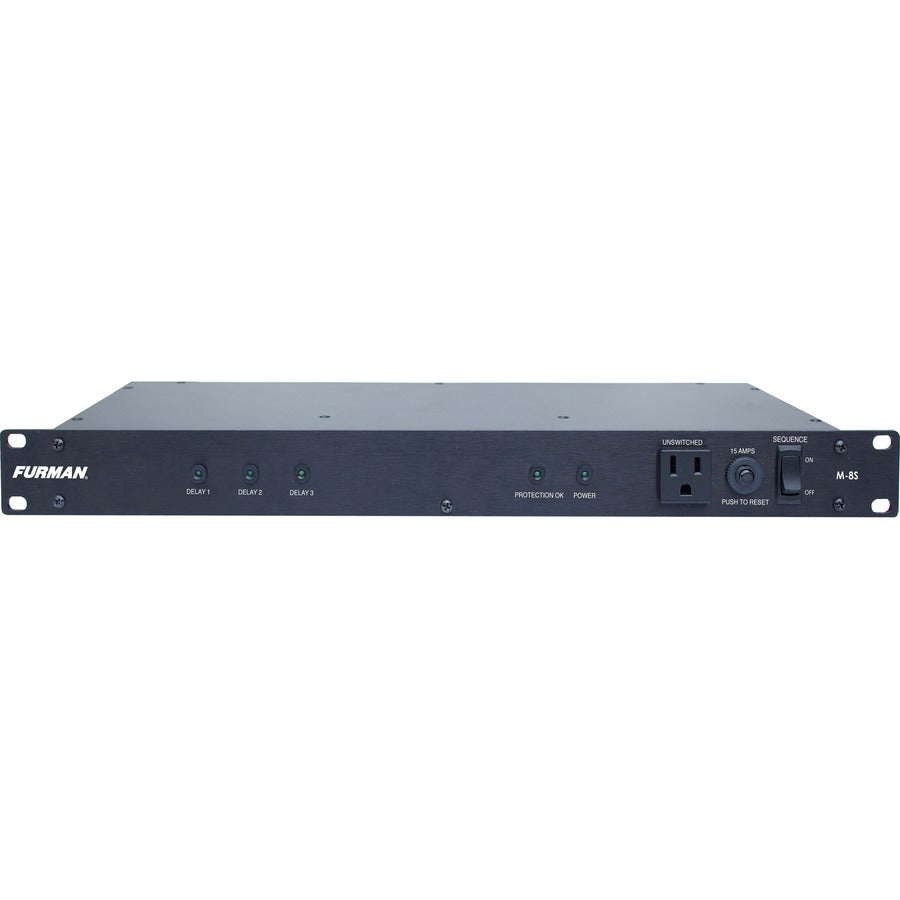

Furman POWER SEQUENCER
Furman POWER SEQUENCER
SKU: 1027910810 MFR: Furman
GTIN: 654061041078
Product Description
Furman POWER SEQUENCER - Surge protection - AC Power - 120 V AC Input
Manufacturer : Furman
Manufacturer Part No : M-8S
Product Details
Product TypeLine Conditioner
Receptacle TypeAC Power
Maximum Line Current15 A
Receptacles Detail9 x AC Power
Cord Length10 ft
Height1.8"
Width19"
Depth8.8"
Brand NameFurman
Plug/Connector TypeNEMA 5-15P
CompatibilityRack
ManufacturerFurman
Product ModelM-8S
Product NamePOWER SEQUENCER
Protection TypeSurge
Surge Energy Rating225 J
Input Voltage120 V AC
Manufacturer Part NumberM-8S
Manufacturer Website Addresshttp://www.furmansound.com
Marketing InformationMerit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system. Install an M-8S in your rack and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load.
Limited Warranty3 Year
Additional Information
- Standard level AC Surge Protection : Merit Class (sacrificial)
- Spike Protection Mode : Line to neutral zero ground leakage
- Max Continuous Operating Voltage : 130V RMS
- Max Clamp Voltage : 500 Volts Peak
- Peak Impulse Current : 12000 Amps
- AC Filtering : Standard level Pi LCR Filter
- Noise Attenuation : >26dB 100 Khz to 1 MHz
- Operating Temperature Range : 5C (40F) to 40C (105F) degrees
- Humidity Range : <90% rH (Relative Humidity)
- Rocker Switch : Front panel Sequence (ON OFF)
- Thermal Circuit Breaker : Front panel push to reset
- Front Panel Indicators : Delay 1 Delay 2 Delay 3 Power Protection OK
- Rear Panel DIP Switches : 12V Mode On/Off GND Mode On Momentary/Maintained
- Potentiometer : Rear panel time calibration fine tune delay adjust
- Remote Terminal : Phoenix type 4-Pin Connector with Screw terminals; +12V STAT REM GND (Class 2 Wiring)
- Safety Agency : C/CSA/US
Output Voltage30 V DC
