Gefen EXT-DPKA-LANS-TX

PRE-ORDER
Extend and Distribute DisplayPort™ USB RS-232 IR and 2-way audio over a Local Area Network

Gefen's AV over IP solutions continue their tradition of providing high performance scalable expandable and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance features and functionality such as 4K Ultra HD with HDR support built-in scalers video-wall control independent USB RS-232 IR and audio routing** and backward-compatibility with our first-generation products.

The EXT-DPKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0 and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported.

USB RS-232 2-way IR and audio can be routed independently** between any Sender and Receiver unit allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. When used in HDMI mode digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system enhancing the impact of presentations. The Receiver's integrated USB hub with two USB 2.0 and two USB 1.1 ports accommodates touch panels keyboard and mouse and a variety of supported devices. This feature along with analog audio inputs and outputs make these products perfect to use in collaborative and interactive installations. To ensure maximum versatility and compatibility the audio outputs on the Receiver units are compatible with both headphones and line level devices such as powered speakers.

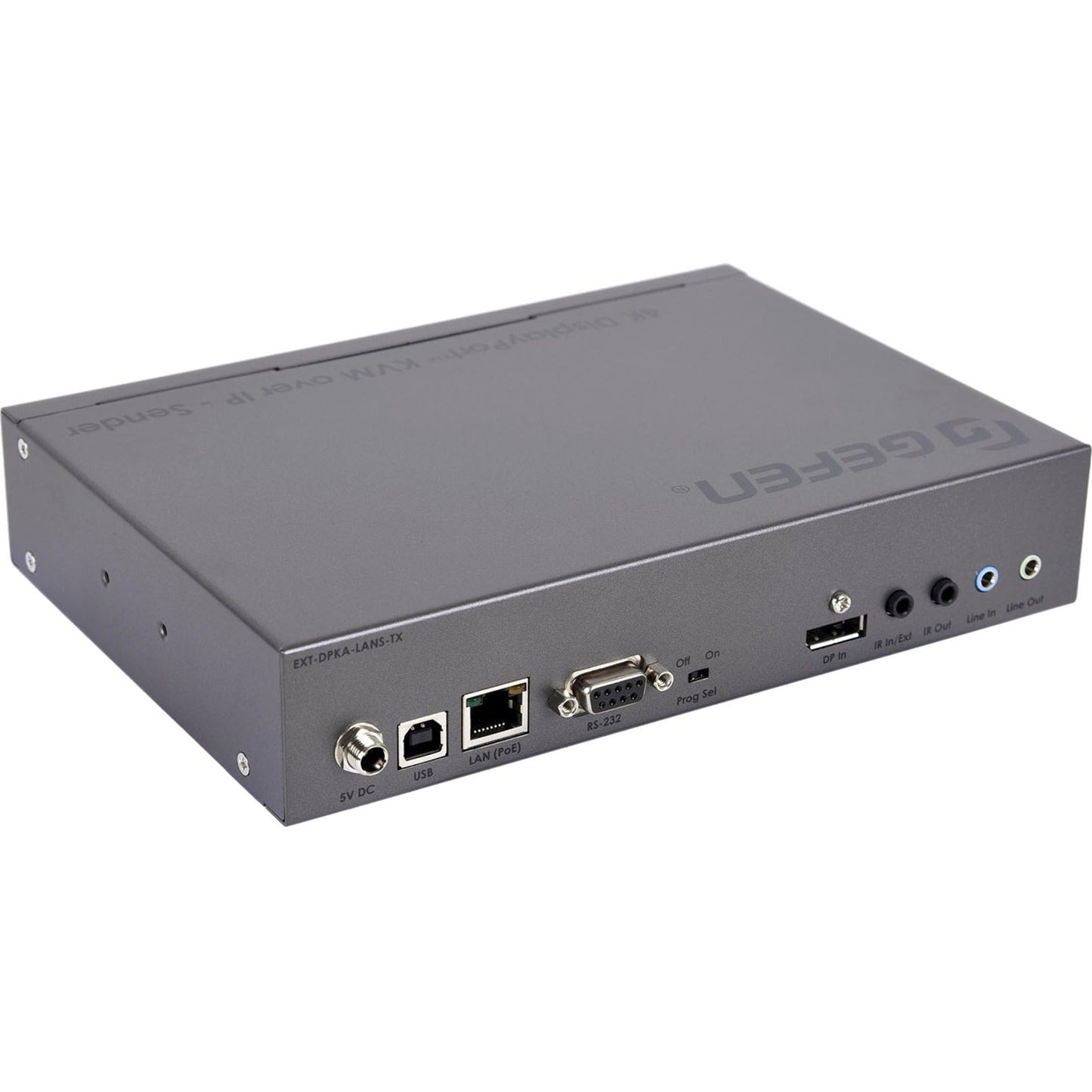

• 4K DisplayPort tm KVM Over IP - Sender Package
• 1 x 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)
• 4 x Self-Adhesive Rubber Feet
• 2 x L-Shaped Mounting Brackets
• 4 x Machine screws for L-Shaped Mounting Brackets
• 2 x Machine screws for EXT-RACK-1U-GRY (sold separately)
• 1 x Quick-Start Guide
