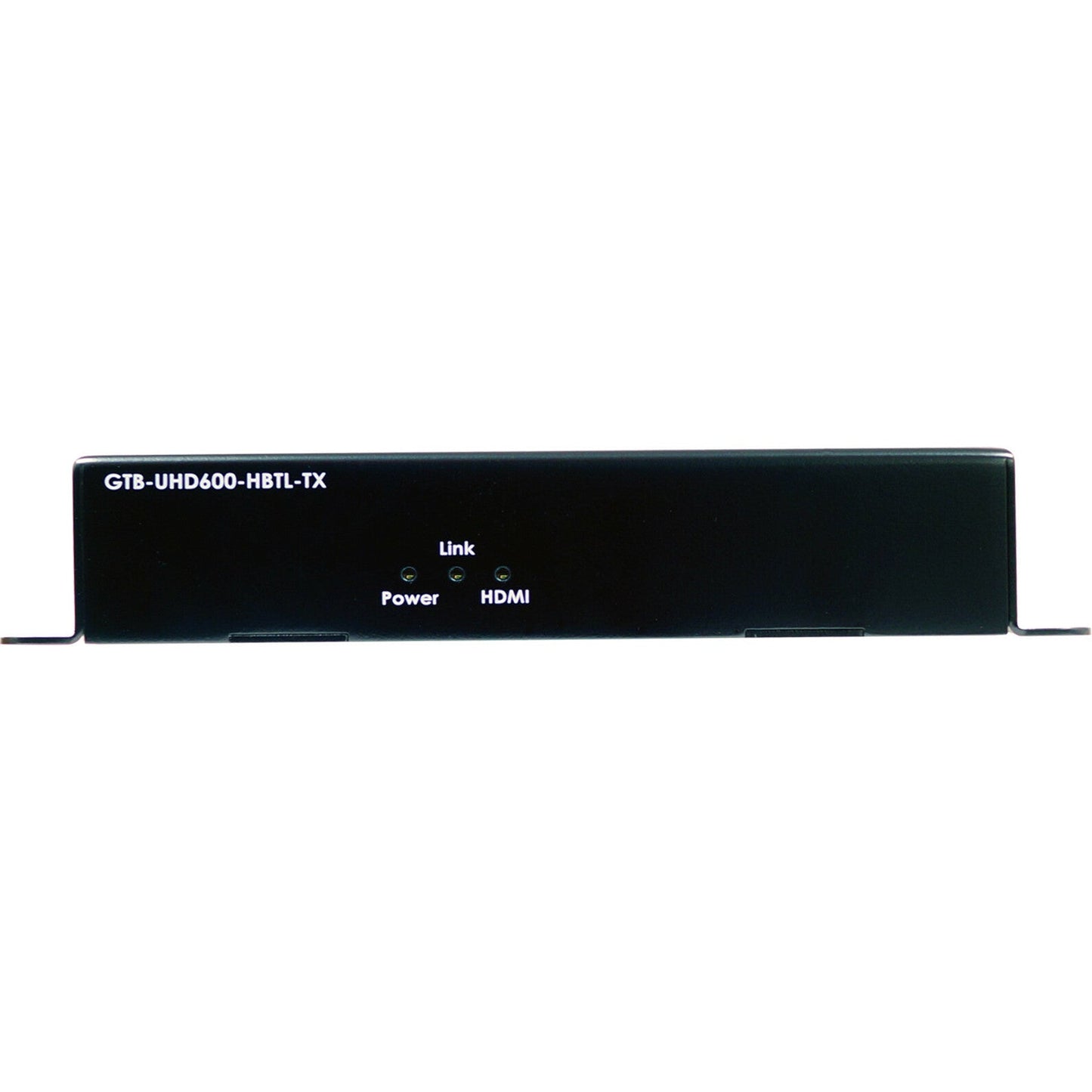

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL

SKU: 1044977926      MFR: Gefen Inc

GTIN: 888814999938

Product Description

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable

Manufacturer : Gefen Inc

Manufacturer Part No : GTB-UHD600-HBTL

Features

  • Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
  • Extends HDMI RS-232 & Bi-Directional IR over a single CAT-5e/CAT-6A:4K Ultra HD (3840 x 2160 to 60 Hz 4:4:4) up to 132 feet/40 meters (8-bit color) 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4) up to 132 feet/40 meters (8-bit color) 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz) up to 200 feet/60 meters (up to 12-bit Deep Color)
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200) with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
  • RS-232 2-way link between Sender and Receiver
  • Gefen's Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
  • Uses Gefen's implementation of HDBaseT™ technology with proprietary algorithms and enhanced features
  • Advanced EDID Management
  • Firmware updatable via external Gefen Syner-G™ port
  • Locking power connector
  • Surface mountable

Product Details

Product TypeVideo Extender Transmitter/Receiver
Maximum Operating Distance200 ft
Number of Network (RJ-45) Ports2
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
Brand NameGefen
Form FactorSurface-mountable
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Transmitter Height1"
Transmitter Width4.70"
Transmitter Depth2.90"
Transmitter Weight (Approximate)9.60 oz
ManufacturerGefen Inc
Product ModelGTB-UHD600-HBTL
Product Name4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL
Manufacturer Part NumberGTB-UHD600-HBTL
Manufacturer Website Addresshttp://www.gefen.com
Marketing Information

Gefen GTB-UHD600-HBTL

Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 40 meters/132 feet over a single CAT-5

The Gefen GTB-UHD600-HBTL is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 40 meters (132 feet) over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT™ technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio) to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBTL also supports 1080p Full HD WUXGA (1920 x 1200) 3DTV and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI outputs. The GTB-UHD600-HBTL provides 2-way IR extension between the Sender and the Receiver units facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small low profile enclosures can be securely surface-mounted and conveniently hidden away from sight and accommodate Gefen locking HDMI cables for secure connections.
Package Contents
  • 1 x Sender Unit (GTB-UHD600-HBTL-TX)
  • 1 x Receiver Unit (GTB-UHD600-HBTL-RX)
  • 1 x HDMI-To-HDMI Male-To-Male Locking Cable 6 Feet
  • 1 x IR Emitter (EXT-IREMIT)
  • 1 x IR Extender (EXT-RMT-EXTIRN)
  • 1 x 12V DC Power Supply With US/EU/UK/AU Reginal AC Plugs And 5.5mm/2.1mm DC Plug (EXT-PS121.5AIP-LP-6)
  • 1 x Quick-Start Guide
Limited Warranty3 Year
Serial PortYes
View full details
$614.99 USD
$614.99
Sale Sold out

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17


Update


Shipping calculated at checkout.

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable

Manufacturer : Gefen Inc

Manufacturer Part No : GTB-UHD600-HBTL

Features

  • Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
  • Extends HDMI RS-232 & Bi-Directional IR over a single CAT-5e/CAT-6A:4K Ultra HD (3840 x 2160 to 60 Hz 4:4:4) up to 132 feet/40 meters (8-bit color) 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4) up to 132 feet/40 meters (8-bit color) 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz) up to 200 feet/60 meters (up to 12-bit Deep Color)
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200) with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
  • RS-232 2-way link between Sender and Receiver
  • Gefen's Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
  • Uses Gefen's implementation of HDBaseT™ technology with proprietary algorithms and enhanced features
  • Advanced EDID Management
  • Firmware updatable via external Gefen Syner-G™ port
  • Locking power connector
  • Surface mountable

Product Details

Product TypeVideo Extender Transmitter/Receiver
Maximum Operating Distance200 ft
Number of Network (RJ-45) Ports2
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
Brand NameGefen
Form FactorSurface-mountable
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Transmitter Height1"
Transmitter Width4.70"
Transmitter Depth2.90"
Transmitter Weight (Approximate)9.60 oz
ManufacturerGefen Inc
Product ModelGTB-UHD600-HBTL
Product Name4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL
Manufacturer Part NumberGTB-UHD600-HBTL
Manufacturer Website Addresshttp://www.gefen.com
Marketing Information

Gefen GTB-UHD600-HBTL

Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 40 meters/132 feet over a single CAT-5

The Gefen GTB-UHD600-HBTL is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 40 meters (132 feet) over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT™ technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio) to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBTL also supports 1080p Full HD WUXGA (1920 x 1200) 3DTV and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI outputs. The GTB-UHD600-HBTL provides 2-way IR extension between the Sender and the Receiver units facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small low profile enclosures can be securely surface-mounted and conveniently hidden away from sight and accommodate Gefen locking HDMI cables for secure connections.
Package Contents
  • 1 x Sender Unit (GTB-UHD600-HBTL-TX)
  • 1 x Receiver Unit (GTB-UHD600-HBTL-RX)
  • 1 x HDMI-To-HDMI Male-To-Male Locking Cable 6 Feet
  • 1 x IR Emitter (EXT-IREMIT)
  • 1 x IR Extender (EXT-RMT-EXTIRN)
  • 1 x 12V DC Power Supply With US/EU/UK/AU Reginal AC Plugs And 5.5mm/2.1mm DC Plug (EXT-PS121.5AIP-LP-6)
  • 1 x Quick-Start Guide
Limited Warranty3 Year
Serial PortYes
