• Gefen 4K Ultra HD 8x8 Matrix for HDMI
    Gefen 4K Ultra HD 8x8 Matrix for HDMI
1 1

Gefen 4K Ultra HD 8x8 Matrix for HDMI

Gefen 4K Ultra HD 8x8 Matrix for HDMI

SKU: 1029381270      MFR: Gefen Inc

GTIN: 818251901133

Product Description

Gefen 4K Ultra HD 8x8 Matrix for HDMI - 4096 x 2160 - 4K - 8 x 8 - Display - 8 x HDMI Out

Manufacturer : Gefen Inc

Manufacturer Part No : GTB-HD4K2K-848-BLK

Features

  • Quickly and easily connect with the display
  • 4096 x 2160 resolution for high-quality video delivery

Product Details

Graphics Modes4K
Maximum Video Resolution4096 x 2160
Number of USB Ports1
Number of HDMI Inputs8
Number of HDMI Outputs8
HDMI InYes
HDMI OutYes
Number of Displays Supported8
Number of Input Devices Supported8
Connectivity (RJ-45)Yes
Product TypeAudio/Video Switchbox
Connectivity TechnologyCable
Brand NameGefen
Form FactorSurface-mountable
Device SupportedDisplay
Number of Connectivity (RJ-45) Ports1
Height17.9"
Width9.3"
Package Contents
  • 4K Ultra HD 8x8 Matrix for HDMI
  • 1 x IR Remote (RMT-848IR)
  • 1 x 24V DC Power Supply (EXT-PS24U375A)
  • 1 x AC Power Cord (CAB-POWERCORD-XX)
  • 1 x Quick-Start Guide (QSG-GTB-HD4K2K-848-BLK)
Weight (Approximate)3.90 lb
Marketing InformationRoute eight 4K Ultra HD sources to eight displays with HDCP. 3DTV and 7.1 channel LPCM and HBR Audio support

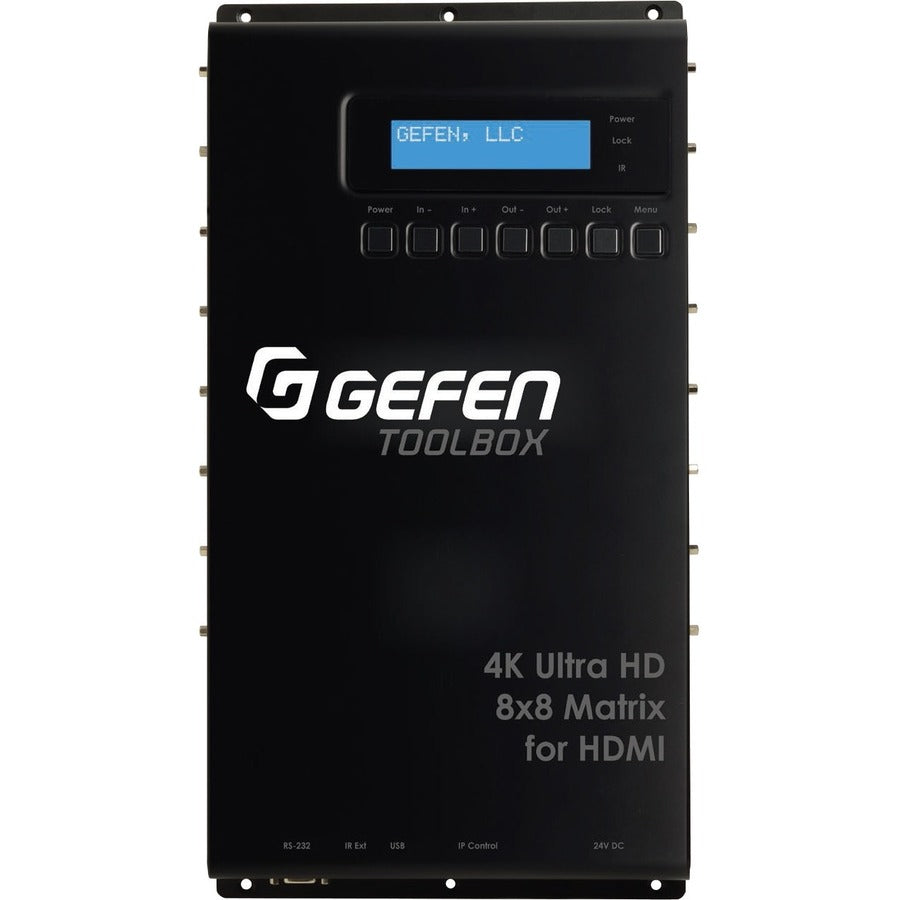

The Gefen ToolBox 8x8 Matrix is a compact and lightweight alternative to rack-mounted matrixes. This HDCP 1.4 compliant matrix routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. Resolutions up to 4K DCI (4096 x 2160 at 24 Hz) 4K Ultra HD (3860 x 2160 at 60 Hz 4:2:0 color space)1080p Full HD and 1920x1200 WUXGA are supported. 3D Deep Color and multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) formats such as Dolby®TrueHD and DTS-HD Master Audio™ are also passed through. The Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration of this matrix. Each source can be routed to any display location using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232 Telnet UDP and Gefen's intuitive and easy-to-use web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings.

How It Works

Use HDMI cables to connect up to eight sources with HDMI outputs to the inputs of the matrix. Connect up to eight displays with HDMI inputs to the outputs of the matrix using HDMI cables. Connect an Ethernet cable from the network to the RJ-45 connector to use the built-in web server or Telnet/UDP capability to control routing EDID management and other functions. Connect an RS-232 cable between an automation control device and the matrix. Connect the included power supply to the 24V DC connector on the matrix. Plug the IEC AC power cord to the power supply and to an available AC outlet. To control the matrix via IR point the included IR remote towards the display of the unit. If matrix is not located in the line of sight of the handheld remote attach a Gefen EXT-RMT-EXTIRN IR Extender to the IR Ext port of the matrix and install it in a location where it can receive the IR commands. If this matrix is going to be part of an IP-controlled infrastructure use Gefen Syner-G™ to perform the initial IP configuration and setup.
Manufacturer Website Addresshttp://www.gefen.com
Manufacturer Part NumberGTB-HD4K2K-848-BLK
Product Name4K Ultra HD 8x8 Matrix for HDMI
ManufacturerGefen Inc
Depth1.8"
View full details
$3,494.99 USD
$3,494.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
