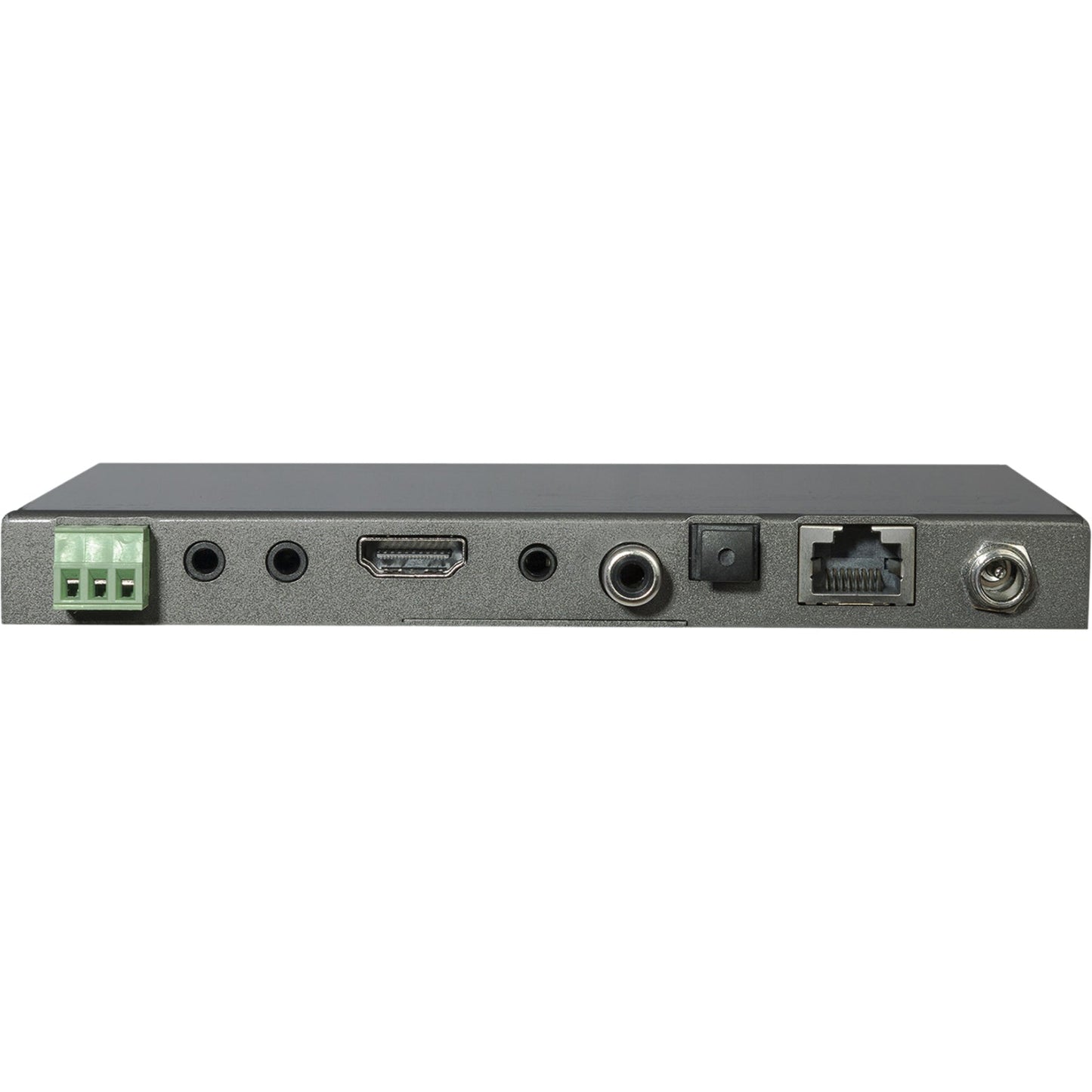

    Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
  • Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
  • Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
1 3

Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH

Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH

SKU: 1048863769      MFR: Gefen Inc

GTIN: 888814999907

Product Description

Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH - 1 Output Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 5

Manufacturer : Gefen Inc

Manufacturer Part No : EXT-UHDA-HBTL-RX

Features

  • Supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
  • Extends HDMI 2-way IR and RS-232 over a single CAT-5e:
  • 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) up to 130 feet/40 meters (8-bit color)
  • 4K Ultra HD (3840 x 2160 @ 30 Hz 4:4:4) up to 130 feet/40 meters (8-bit color)
  • 4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4) up to 130 feet/40 meters (8-bit color)
  • 1080p Full HD (60 Hz) or WUXGA (1920x1200 @ 60 Hz) up to 230 feet/70 meters (up to 12-bit Deep Color)
  • HDMI Features Supported:
  • HDMI 2.0
  • HDCP 2.2 and 1.4
  • 12-bit Deep Color (at 1080p)

Product Details

Product TypeVideo Extender Receiver
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Twisted Pair Cable StandardCategory 5
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height0.65"
Receiver Width6"
Receiver Depth4"
Receiver Weight (Approximate)9.60 oz
Connectivity TechnologyWired
Brand NameGefen
ManufacturerGefen Inc
Product ModelEXT-UHDA-HBTL-RX
Product Name4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
Manufacturer Part NumberEXT-UHDA-HBTL-RX
Manufacturer Website Addresshttp://www.gefen.com
Marketing InformationExtend HDMI with audio breakout up to 70 meters/230 feet over a single CAT-5

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K over a single CAT-5e cable. It also de-embeds analog L/R TOSLINK® optical digital and coaxial digital audio from the video for use with a separate audio system enhancing the impact of presentations. This Receiver uses Gefen's implementation of the HDBaseT™ technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz 4:2:0 or 30 Hz 4:4:4) with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI output. The EXT-UHDA-HBTL-RX also extends RS-232 and 2-way IR when used with a compatible Sender unit facilitating the control of A/V sources placed near the Sender from the viewing location and sending commands from the head end to control the display or another device placed near the Receiver unit. It can also send RS-232 commands from a third-party controller placed by the Receiver for switching scaler controls and EDID management of a compatible Sender unit. Bi-Directional HDBaseT™ standard POH (Power Over HDBaseT™) technology can supply power remotely from the Receiver unit to a compatible Sender unit or it can pass power from a compatible Sender unit to the Receiver using the same CAT-5 cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. The Receiver's small ultra-low-profile enclosure can be securely surface-mounted and conveniently hidden away from sight behind the display. It also accommodates a Gefen locking power supply plug for secure connection.
Package Contents
  • 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
  • 1 x 12V 3A Power Supply (EXT-PS12U3IP-LP21-6)
  • 1 x 3-pin Phoenix Plug
  • 2 x Mounting Brackets
  • 1 x Quick Start Guide
Limited Warranty3 Year
View full details
$485.99 USD
$485.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Gefen 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH - 1 Output Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 3840 x 2160 - Twisted Pair - Category 5

Manufacturer : Gefen Inc

Manufacturer Part No : EXT-UHDA-HBTL-RX

Features

  • Supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
  • Extends HDMI 2-way IR and RS-232 over a single CAT-5e:
  • 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) up to 130 feet/40 meters (8-bit color)
  • 4K Ultra HD (3840 x 2160 @ 30 Hz 4:4:4) up to 130 feet/40 meters (8-bit color)
  • 4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4) up to 130 feet/40 meters (8-bit color)
  • 1080p Full HD (60 Hz) or WUXGA (1920x1200 @ 60 Hz) up to 230 feet/70 meters (up to 12-bit Deep Color)
  • HDMI Features Supported:
  • HDMI 2.0
  • HDCP 2.2 and 1.4
  • 12-bit Deep Color (at 1080p)

Product Details

Product TypeVideo Extender Receiver
Graphics Modes4K
Maximum Video Resolution3840 x 2160
Twisted Pair Cable StandardCategory 5
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height0.65"
Receiver Width6"
Receiver Depth4"
Receiver Weight (Approximate)9.60 oz
Connectivity TechnologyWired
Brand NameGefen
ManufacturerGefen Inc
Product ModelEXT-UHDA-HBTL-RX
Product Name4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
Manufacturer Part NumberEXT-UHDA-HBTL-RX
Manufacturer Website Addresshttp://www.gefen.com
Marketing InformationExtend HDMI with audio breakout up to 70 meters/230 feet over a single CAT-5

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K over a single CAT-5e cable. It also de-embeds analog L/R TOSLINK® optical digital and coaxial digital audio from the video for use with a separate audio system enhancing the impact of presentations. This Receiver uses Gefen's implementation of the HDBaseT™ technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz 4:2:0 or 30 Hz 4:4:4) with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI output. The EXT-UHDA-HBTL-RX also extends RS-232 and 2-way IR when used with a compatible Sender unit facilitating the control of A/V sources placed near the Sender from the viewing location and sending commands from the head end to control the display or another device placed near the Receiver unit. It can also send RS-232 commands from a third-party controller placed by the Receiver for switching scaler controls and EDID management of a compatible Sender unit. Bi-Directional HDBaseT™ standard POH (Power Over HDBaseT™) technology can supply power remotely from the Receiver unit to a compatible Sender unit or it can pass power from a compatible Sender unit to the Receiver using the same CAT-5 cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. The Receiver's small ultra-low-profile enclosure can be securely surface-mounted and conveniently hidden away from sight behind the display. It also accommodates a Gefen locking power supply plug for secure connection.
Package Contents
  • 4K Ultra HD HDBaseT Receiver w/ Audio De-Embedder and POH
  • 1 x 12V 3A Power Supply (EXT-PS12U3IP-LP21-6)
  • 1 x 3-pin Phoenix Plug
  • 2 x Mounting Brackets
  • 1 x Quick Start Guide
Limited Warranty3 Year
