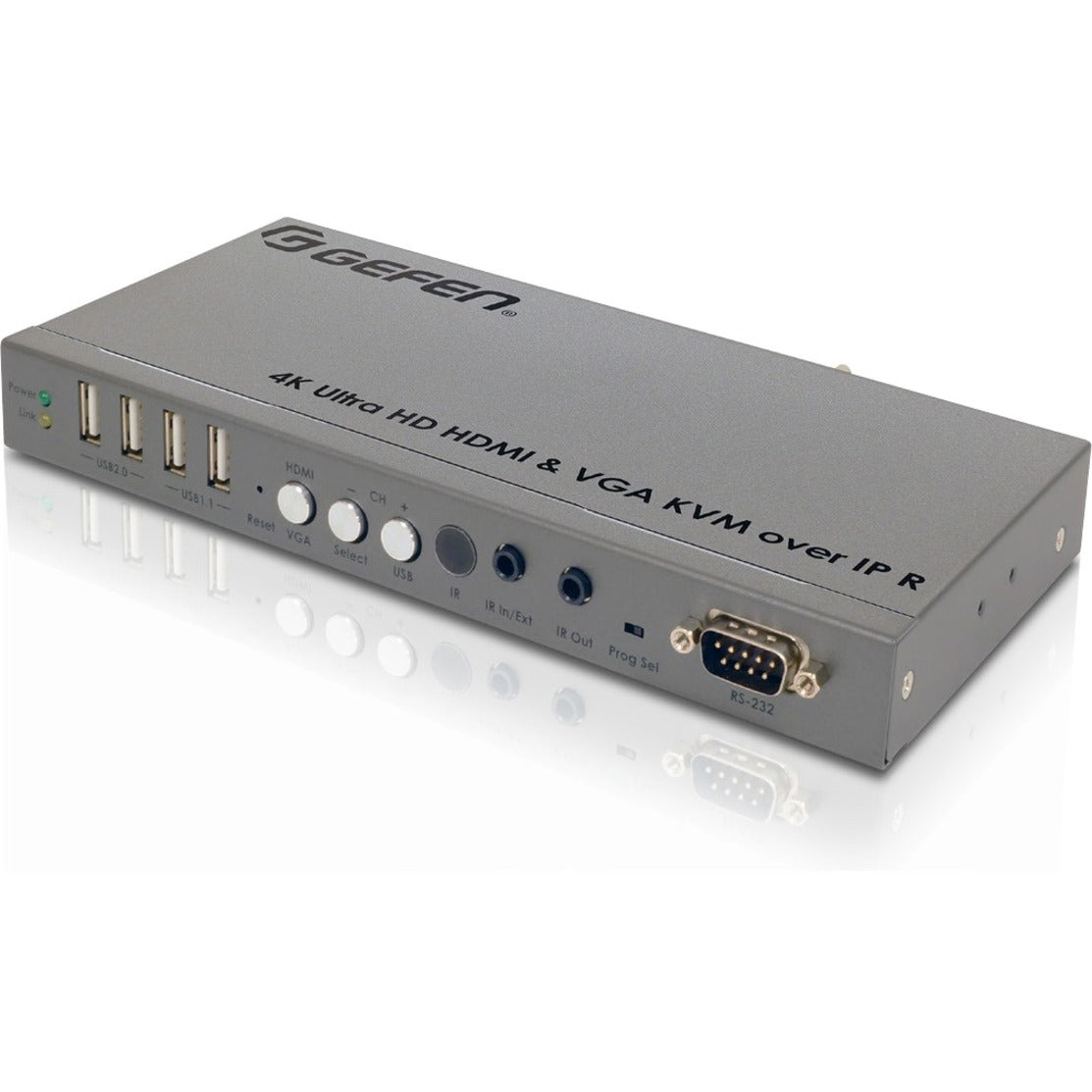

Gefen's Video over IP solutions continue our tradition of providing high performance scalable expandable and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gefen 4K Ultra HD and VGA KVM over IP extends HDMI VGA USB 2-way audio RS-232 and IR. The Sender features a 1U tall and half-rack-width enclosure perfect for rack mounting using the Gefen EXT-RACK-1U-GRY rack tray (available separately). It can also be surface mounted or be placed on a shelf. The Receiver is also rack mountable using the rack tray can be surface-mounted or can be placed on a shelf. When used with the included IR Extender module this low-profile unit can be hidden away behind a display or in the equipment closet.

Create Video Walls & Virtual Matrix Systems

The video wall controller that is built into the Receivers accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations such as sports bars and restaurants or in corporate education hospitality and retail establishments. When used in conjunction with the EXT-CU-LAN Matrix Controller system configuration is automated and quick. Enhanced network security by separating the control and AV networks is also made possible when used with EXT-CU-LAN. Other control options include front panel buttons web server interface Telnet UDP and the Gefen Keyboard Switching Controller software (available for download at www.gefen.com). A built in 3-port Gigabit switch on each receiver allows the connection of additional receivers providing daisy-chaining functionality. In applications such as digital signage where there may be a need to replicate content on multiple displays throughout the installation the ability to cascade receivers essentially removes the requirement for a cable to be connected directly to the main network switch thereby extending the range of these units far beyond the limits of a point-to-point video distribution system. The Sender and Receiver can be used as nodes in a virtual matrix environment with a combination of just over 65000 Sender and Receiver units where any source can be routed to any or all displays.

Point to Point IP Extension

The Sender and Receiver can be used as KVM extenders in a one-to-one system by connecting them directly with an Ethernet cable. Each cable run from a Sender to a Receiver or from a Sender or Receiver to the network switch can be up to 100 meters (330 feet).

4K Video Support

Input resolutions up to 4K 60 Hz 4:2:0 and HDR and output resolutions up to 4K 30 Hz 4:4:4 are supported along with HDCP 2.2 and 1.4 and 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio. The Gefen EXT-UHDV-KA-LANS-TX and RX feature HDMI and VGA inputs and outputs and can support DVI when using Gefen HDMI-to-DVI cables. The Sender unit also features a VGA output for local monitoring of the source. The VGA input and output support VESA resolutions up to 1920x1200 at 60Hz (WUXGA).
