Gefen's AV over IP solutions continue their tradition of providing high performance scalable expandable and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance features and functionality such as 4K Ultra HD with HDR support built-in scalers video-wall control independent RS-232 IR and audio routing and backward-compatibility with our first generation products.

The EXT-UHD-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0 and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.

Video RS-232 2-way IR and audio can be routed independently between any Sender and Receiver unit allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. Digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system enhancing the impact of presentations.

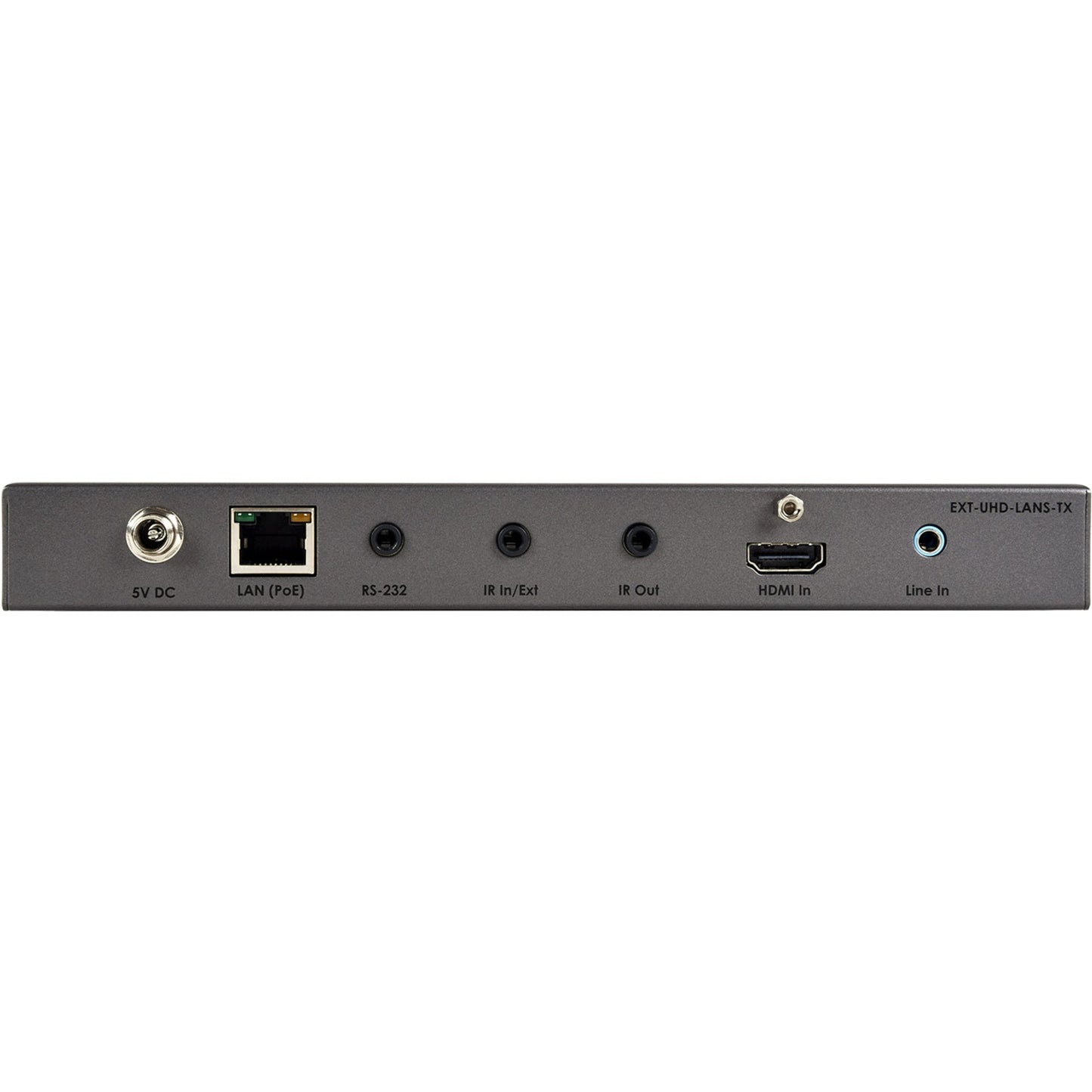

• 4K Ultra HD HDMI over IP - Sender Package
• 1 x 5V 2.6A Power Supply (EXT-PS526-AIP-LP-6)
• 1 x 3.5mm-to-DB-9 Adaptor M-F (ADA-MP-2-DB9-MF-AB)
• 1 x IR Emitter (EXT-IREMIT)
• 4 x Self-Adhesive Rubber Feet
• 2 x L-Shaped Mounting Brackets
• 4 x Machine Screws for L-Shaped Mounting Brackets
• 2 x Machine Screws for EXT-RACK-1U-GRY
• 1 x Quick-Start Guide
