Extend and Distribute Analog and Digital Audio RS-232 and IR over a Local Area Network

Gefen's AV over IP solutions continue our tradition of providing high performance scalable expandable and secure AV routing and distribution over a standard Gigabit Local Area Network. The Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX) and Receiver (EXT-ADA-LAN-RX) are new additions to Gefen's family of AV over IP products offering a much-needed audio-only option for background music public announcements and other applications where stand-alone audio needs to be distributed through the AV system. Audio input and output options include L/R Analog Coaxial Digital and Optical Digital. When using the digital inputs and outputs 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio RS-232 and 2-way IR can also be independently routed and distributed for source and amplifier control. The entire Gen 2.0 product line including the audio models feature backward-compatibility with our first-generation products.

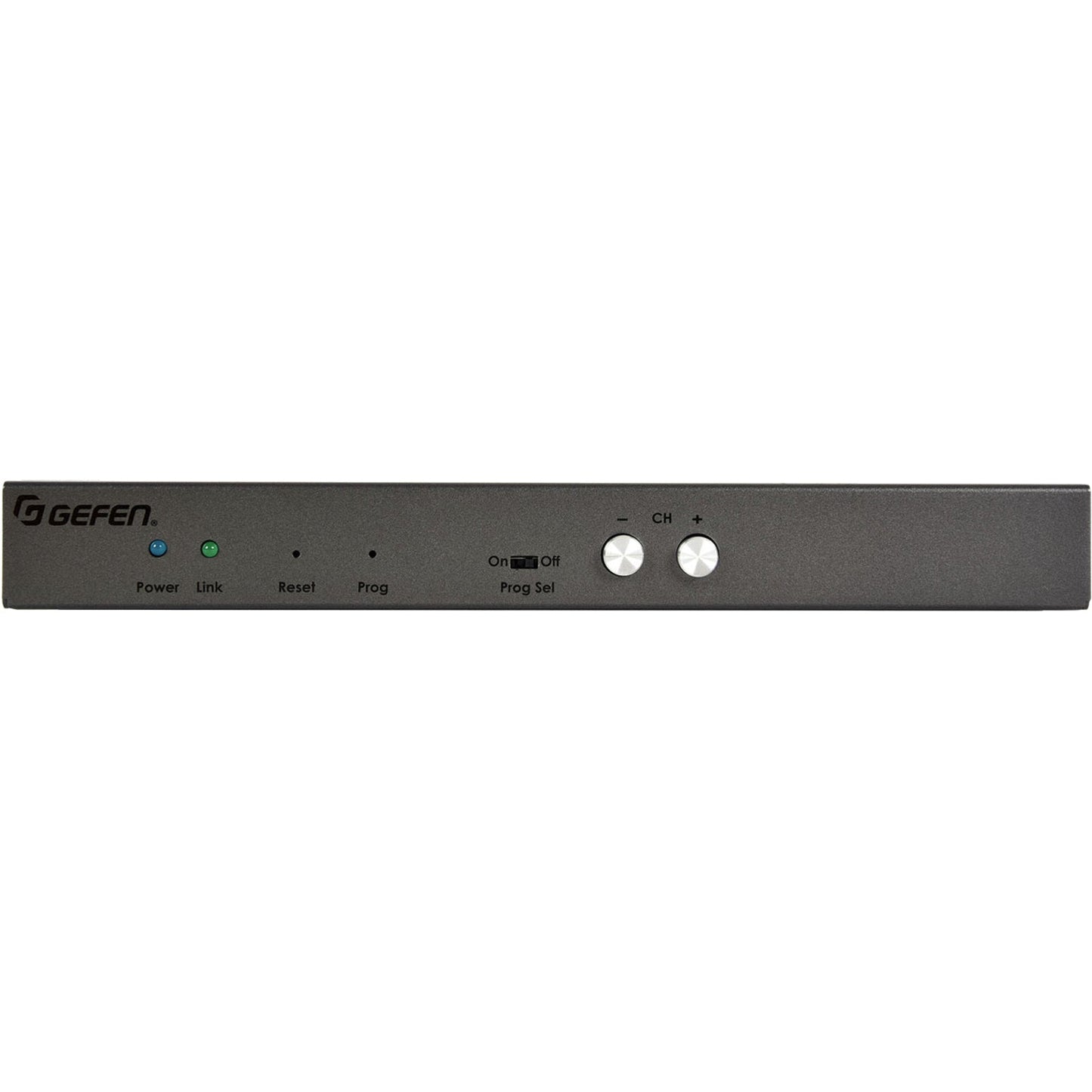

• Digital and Analog Audio over IP - Receiver Package
• 1 x 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)
• 1 x 3.5mm-to-DB-9 Adaptor M-M (ADA-MP-2-DB9-MM-AB)
• 1 x IR Extender (EXT-RMT-EXTIRN)
• 4 x Self-Adhesive Rubber Feet
• 2 x L-Shaped Mounting Brackets
• 4 x Machine screws for L-Shaped Mounting Brackets
• 2 x Machine screws for EXT-RACK-1U-GRY
• 1 x Quick-Start Guide
