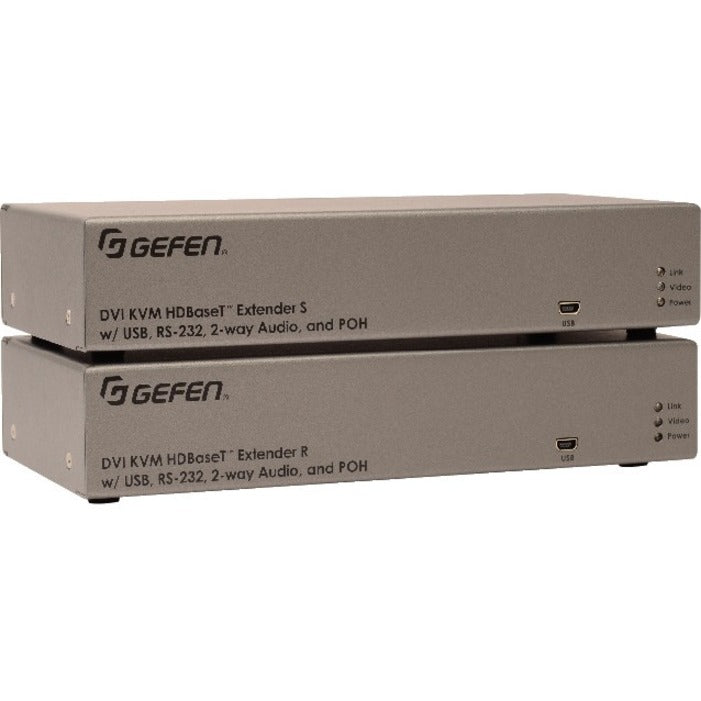

Gefen DVI KVM HDBaseT 2.0 Extender ?w/ RS-232 and 2-Way Audio???

Gefen DVI KVM HDBaseT 2.0 Extender ?w/ RS-232 and 2-Way Audio???

SKU: 1035448008      MFR: Gefen Inc

GTIN: 818242504589

Product Description

Gefen DVI KVM HDBaseT 2.0 Extender ?w/ RS-232 and 2-Way Audio??? - 1 Computer(s) - 1 Remote User(s) - 492.13 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 7 x USB - 2 x DVI - 48 V DC Input Voltage - Rack-mountable - 1U

Manufacturer : Gefen Inc

Manufacturer Part No : EXT-DVIKA-HBT2

Product Details

Product TypeKVM Console/Extender
Maximum Video Resolution3840 x 2160
Graphic Mode4K
Maximum Operating Distance492.13 ft
USBYes
DVIYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports7
Number of DVI Ports2
Number of Computers Supported1
Number of Remote Users Supported1
Transmitter Height1.70"
Transmitter Width8.40"
Transmitter Depth4.30"
Receiver Height1.70"
Receiver Width8.40"
Receiver Depth4.30"
Transmitter Weight (Approximate)1.10 lb
Receiver Weight (Approximate)1.10 lb
Connectivity TechnologyWired
Rack Height1U
Brand NameGefen
Form FactorRack-mountable
ManufacturerGefen Inc
Product ModelEXT-DVIKA-HBT2
Product NameDVI KVM HDBaseT 2.0 Extender ?w/ RS-232 and 2-Way Audio???
Input Voltage48 V DC
Manufacturer Part NumberEXT-DVIKA-HBT2
Manufacturer Website Addresshttp://www.gefen.com
Marketing InformationThe EXT-DVIKA-HBT2 uses Gefen's implementation of the latest HDBaseT™ 2.0 technology to extend DVI over a single CAT-5e cable up to 495 feet (150 meters). The new HDBaseT™ 2.0 Colligo™ platform provides additional features such as USB and 2-way audio extension and ensures an even more robust and resilient connection than the industry standard HDBaseT™. Resolutions up to 1080p and 1920 x 1200 (WUXGA) are supported. HDMI resolutions up to 4K DCI-Cinema(4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are also supported when using Gefen DVI to HDMI cables. Supported HBR formats include Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™. USB RS-232 and 2-way L/R analog audio can be extended between the Sender and the Receiver to accommodate a complete workstation including keyboard mouse select USB periperals microphone headphones and powered speakers. POH (Power Over HDBaseT™) technology provides power from the Receiver to the Sender unit using the same CAT-5 cable that extends the DVI audio and control signals. Only the Receiver unit needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices. The Gefen Syner-G™ software with its powerful EDID Management capabilities speeds up configuration performs real-time performance analysis via Link Monitoring and simplifies in-field firmware updates. 1U tall half-rack-width enclosures can be surface-mounted installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray or be placed on a shelf.

Installation Tip: Shielded (STP) CAT-5e or better cable is recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on cable quality but results could vary. Care should always be taken to keep the link cable away from power lines and other sources of electromagnetic interference.
Package Contents
  • 1 x DVI KVM HDBaseT Extender - Sender unit (EXT-DVIKA-HBT2-S)
  • 1 x DVI KVM HDBaseT Extender - Receiver unit (EXT-DVIKA-HBT2-R)
  • 1 x DVI cable (M-M) - 6 ft (CAB-DVIC-DLN-06MM)
  • 1 x Mini-phone Analog Audio cable (M-M) - 6 ft (CAB-AUDIO-6)
  • 1 x DB-9 cable (M-F) - 6 ft (CAB-DB9-6MF)
  • 1 x USB Type A to Type B cable (M-M) - 6 ft (CAB-USB-6)
  • 4 x L-Shaped Surface-Mounting Brackets (EXT-MP-C01)
  • 8 x Machine Screws for use with the Surface-Mounting Brackets:M3 0.5mm pitch 6mm long Phillips Flat Head (SCR-M3-05-06-FH-NP-AB)
  • 4 x Machine Screws for use with the EXT-RACK-1U*:6-32 5mm long Phillips Flat Head (SCR-6-32-05-FH-NP-AB)
  • 8 x Self-Adhesive Rubber Feet (PAD-20-05-GRY-AB)
  • 1 x 48V DC Power Supply w/ AC cord and regional plugs (EXT-PS48U1A-LP-6)
  • 1 x Quick-Start Guide (QSG-EXT-DVIKA-HBT2)
Limited Warranty2 Year
