• Gefen DVI KVM over IP
    Gefen DVI KVM over IP
1 1

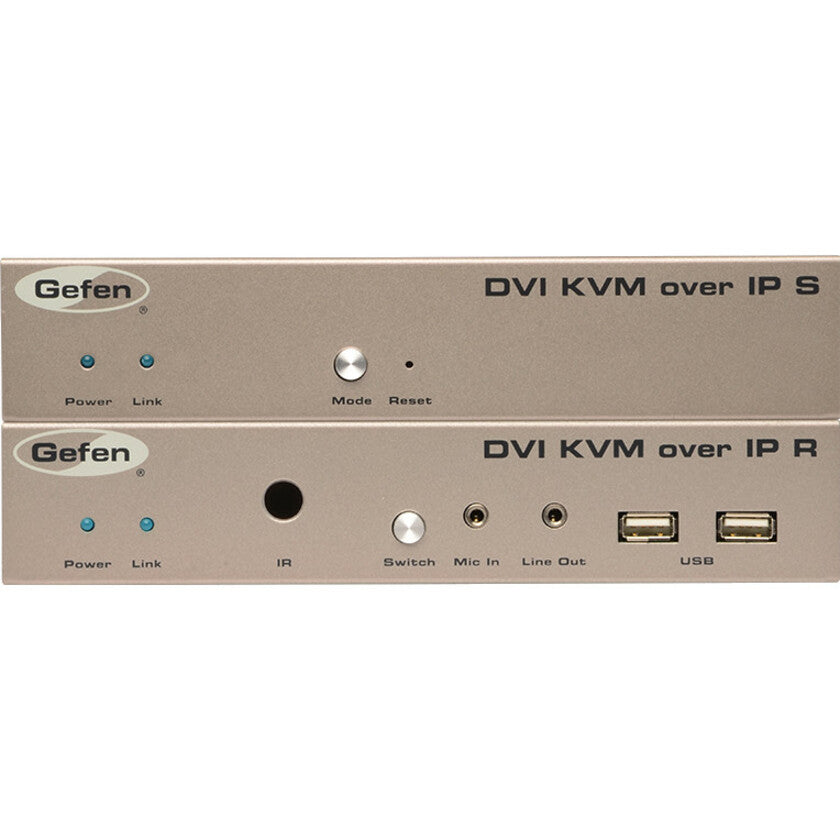

Gefen DVI KVM over IP

Gefen DVI KVM over IP

SKU: 1025989984      MFR: Gefen Inc

GTIN: 845344078984

Product Description

Gefen DVI KVM over IP - 1 Computer(s) - 330 ft Range - WUXGA - 1900 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 1 x USB - 1 x DVI - Rack-mountable - 1U

Manufacturer : Gefen Inc

Manufacturer Part No : EXT-DVIKVM-LANTX

Product Details

Product TypeKVM Extender
Maximum Video Resolution1900 x 1200
Graphic ModeWUXGA
Maximum Operating Distance330 ft
USBYes
DVIYes
HeadphoneYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports1
Number of DVI Ports1
KVM TechnologyDigital
Number of Computers Supported1
Transmitter Height1.70"
Transmitter Width8.40"
Transmitter Depth4.50"
Connectivity TechnologyWired
Rack Height1U
Brand NameGefen
Form FactorRack-mountable
ManufacturerGefen Inc
MicrophoneYes
Product NameDVI KVM over IP
Power Consumption10 W
Manufacturer Part NumberEXT-DVIKVM-LANTX
Manufacturer Website Addresshttp://www.gefen.com
Marketing Information

Extend and Distribute DVI USB RS-232 IR and 2-way audio over a Local Area Network using any combination of HDMI DVI and VGA Senders and Receivers

The DVI KVM over IP extends DVI USB 2-way analog audio RS-232 and IR over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. The Gefen Video over IP products can be used as a "Virtual Matrix". When using HDCP-encrypted content only HDMI Senders and Receiver units can accept and display the content. HDMI digital audio is also supported when using HDMI sources and displays with HDMI-to-DVI adapters. The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network to create a virtual crosspoint matrix of 256 Senders and up to a theoretical limit of just over 65000 units total depending on the network bandwidth and number of ports on the network switch. Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector providing access to keyboard mouse and other compatible devices. Bi-directional analog audio capability allows audio to be transported between the Sender and the Receiver units. The built-in mic pre-amp on the Receiver unit ensures compatibility with a variety of microphones. IR commands from the Receiver side can be extended to sources connected to any of the Senders units. RS-232 serial control can also be extended between each Sender and Receiver unit. The built-in Web server interface makes set-up and configuration simple and intuitive. The DVI KVM over IP is perfect for large scale remote workstation access and digital signage applications.
Packaged Quantity1
Package Contents
  • DVI KVM over IP
  • 1 x 6 ft. DVI Cable (M-M)
  • 1 x 6 ft. USB Cable
  • 1 x 6 ft. DB-9 Cable
  • 1 x L-shaped Mounting Bracket with Screws
  • 1 x 5V DC Power Supply
  • 1 x Quick-Start Guide
View full details
$696.99 USD
$696.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Gefen DVI KVM over IP - 1 Computer(s) - 330 ft Range - WUXGA - 1900 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 1 x USB - 1 x DVI - Rack-mountable - 1U

Manufacturer : Gefen Inc

Manufacturer Part No : EXT-DVIKVM-LANTX

Product Details

Product TypeKVM Extender
Maximum Video Resolution1900 x 1200
Graphic ModeWUXGA
Maximum Operating Distance330 ft
USBYes
DVIYes
HeadphoneYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports1
Number of DVI Ports1
KVM TechnologyDigital
Number of Computers Supported1
Transmitter Height1.70"
Transmitter Width8.40"
Transmitter Depth4.50"
Connectivity TechnologyWired
Rack Height1U
Brand NameGefen
Form FactorRack-mountable
ManufacturerGefen Inc
MicrophoneYes
Product NameDVI KVM over IP
Power Consumption10 W
Manufacturer Part NumberEXT-DVIKVM-LANTX
Manufacturer Website Addresshttp://www.gefen.com
Marketing Information

Extend and Distribute DVI USB RS-232 IR and 2-way audio over a Local Area Network using any combination of HDMI DVI and VGA Senders and Receivers

The DVI KVM over IP extends DVI USB 2-way analog audio RS-232 and IR over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. The Gefen Video over IP products can be used as a "Virtual Matrix". When using HDCP-encrypted content only HDMI Senders and Receiver units can accept and display the content. HDMI digital audio is also supported when using HDMI sources and displays with HDMI-to-DVI adapters. The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network to create a virtual crosspoint matrix of 256 Senders and up to a theoretical limit of just over 65000 units total depending on the network bandwidth and number of ports on the network switch. Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector providing access to keyboard mouse and other compatible devices. Bi-directional analog audio capability allows audio to be transported between the Sender and the Receiver units. The built-in mic pre-amp on the Receiver unit ensures compatibility with a variety of microphones. IR commands from the Receiver side can be extended to sources connected to any of the Senders units. RS-232 serial control can also be extended between each Sender and Receiver unit. The built-in Web server interface makes set-up and configuration simple and intuitive. The DVI KVM over IP is perfect for large scale remote workstation access and digital signage applications.
Packaged Quantity1
Package Contents
  • DVI KVM over IP
  • 1 x 6 ft. DVI Cable (M-M)
  • 1 x 6 ft. USB Cable
  • 1 x 6 ft. DB-9 Cable
  • 1 x L-shaped Mounting Bracket with Screws
  • 1 x 5V DC Power Supply
  • 1 x Quick-Start Guide
