SKU: 1020536283      MFR: Gefen Inc

GTIN: 818263097671

Product Description

Gefen GefenToolBox HD Pattern Signal Generator - Functions: Signal Generation - 1920 x 1200 - NTSC PAL - VGA - 1 Pack

Manufacturer : Gefen Inc

Manufacturer Part No : GTB-HD-SIGGEN

Features

  • Multi-format video output for SD and HD video up to 1080p
  • PC/HD resolutions up to UXGA / WUXGA (1920 x 1200)
  • 39 timings 41 patterns and 4 data analysis patterns
  • Supports RGB 4:4:4 YCbCr 4:4:4 and YCbCr 4:4:2 color spaces
  • Supports NTSC and PAL frame rates
  • 2 CH 5.1 CH and 7.1 CH LPCM internal sine wave generator
  • RS-232 control via the downloadable software from the Gefen Web site
  • Small form factor; easy to transport
  • Supports HD timings for VGA output
  • HDCP Pattern

Product Details

Product TypeSignal Generator
HDMIYes
VGAYes
Video Signal FormatNTSC
Height6.5"
Width11"
Depth1.7"
Maximum Resolution1920 x 1200
Brand NameGefen
FunctionsSignal Generation
ManufacturerGefen Inc
Product NameGefenToolBox HD Pattern Signal Generator
Product LineGefenToolBox
Manufacturer Part NumberGTB-HD-SIGGEN
Manufacturer Website Addresshttp://www.gefen.com
Marketing InformationEvaluate Calibrate and Test Digital Video Equipment

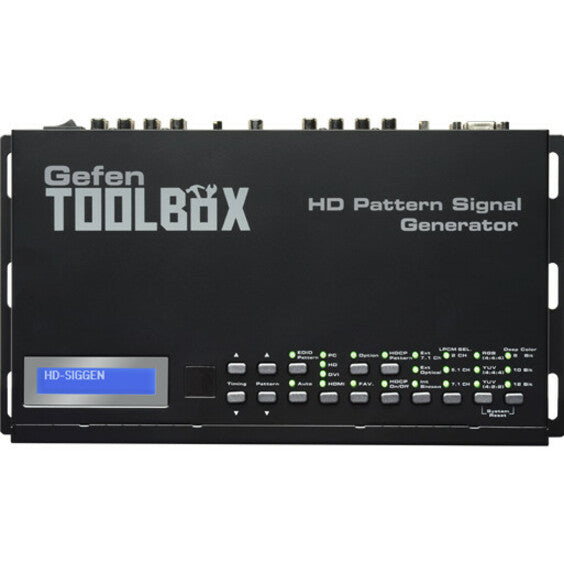

The GefenToolbox HD Pattern Signal Generator is the most advanced testing device for your audio and video equipment: 39 built-in timings 41 patterns and 4 data analysis patterns that provide over a thousand testing combinations for both analog and digital devices. The front panel LCD screen provides easy viewing of functions and features for each timing / pattern. This device can be conveniently controlled via the front panel buttons the IR remote or the downloadable software from the Gefen Web site. In addition to its portability this signal generator is wall-mountable and field-upgradeable.

How It Works
Connect the HDMI or VGA output ports of the GefenToolbox HD Pattern Signal Generator to your HDTV display (DVI displays can be connected using a HDMI-DVI adapter and Component Video displays by using a VGA-Component Video adapter). Power-on all equipment. The front panel LCD will display all features and options of the active timing and pattern. You can feed digital or analog audio into the generator's rear panel and hear multi-channel digital audio or use the built-in sine wave test tone.
Packaged Quantity1
Package Contents
  • GefenToolBox HD Pattern Signal Generator
  • 1 x 6 ft. HDMI Cable (M-M)
  • 1 x IR Remote
  • 1 x 5 V DC Locking Power Supply (EXT-PS526AIP)
  • 1 x User Manual
Product FamilyGefenToolBox
