Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable

Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable

SKU: 1038338595      MFR: Gefen Inc

GTIN: 888814999631

Product Description

Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable - 1 Input Device - 1 Output Device - 656.17 ft Range - 2 x SC Ports - DisplayPort - 4K - 4096 x 2160 - Optical Fiber

Manufacturer : Gefen Inc

Manufacturer Part No : EXT-DP-4K600-1SC

Features

  • Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)
  • Fully compliant with DisplayPort 1.2 standard
  • Supports WQUXGA (4K; 3840x2400) 4K Ultra HD (3840 x 2160) and 4K Cinema - DCI (4096 x 2160) at 60Hz 4:4:4
  • Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
  • HDCP 2.2 HDCP 1.4 and DPCP compliant
  • Supports DisplayPort Auxiliary/l²C channel
  • Supports DisplayPort Multi-stream technology
  • Compact enclosures are easy to install and can be hidden away
  • Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)
  • Plug & Play - no configuration or set-up required for most applications

Product Details

Product TypeVideo Extender Transmitter/Receiver
Maximum Operating Distance656.17 ft
DisplayPortYes
Media Type SupportedOptical Fiber
Number of Output Devices Supported1
Number of Input Devices Supported1
Connectivity TechnologyWired
Brand NameGefen
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Number of SC Ports2
Transmitter Height0.87"
Transmitter Width1.77"
Transmitter Depth3.11"
Transmitter Weight (Approximate)9.52 oz
ManufacturerGefen Inc
Product ModelEXT-DP-4K600-1SC
Product NameUltra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable
Manufacturer Part NumberEXT-DP-4K600-1SC
Manufacturer Website Addresshttp://www.gefen.com
Marketing InformationGefen's DisplayPort 1.2-compliant extender is a compact and high performance solution for extending HDCP 2.2 HDCP 1.4 and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. WQUXGA (3840 x 2400) 4K Ultra HD (3840 x 2160) and 4K Cinema - DCI (4096 x 2160) up to 60 Hz frame rate and 4:4:4 Chroma sub-sampling are supported. The AV signal can be extended up to 200m (660ft) over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable. There is full electrical isolation between the Sender and the Receiver meeting the stringent safety and EMC requirements for critical applications. When used with the Gefen EXT-PS52AU-M-1.3-6-AL power supply (available separately) this extender is compliant with medical safety and EMC standards EN 60601-1 and EN 60601-1-2. The EXT-DP-4K600-1SC can be powered from sources and displays featuring powered USB ports or by using external power supplies. For most applications the Sender and Receiver are plug-and-play and will work without any set-up. In cases where signal optimization becomes necessary due to special requirements of a source and/or a display both units feature easy-to-use EQ switches. The EXT-DP-4K600-1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal). Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging military and industrial command and control rooms flight simulators digital signage gaming and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.
Package Contents

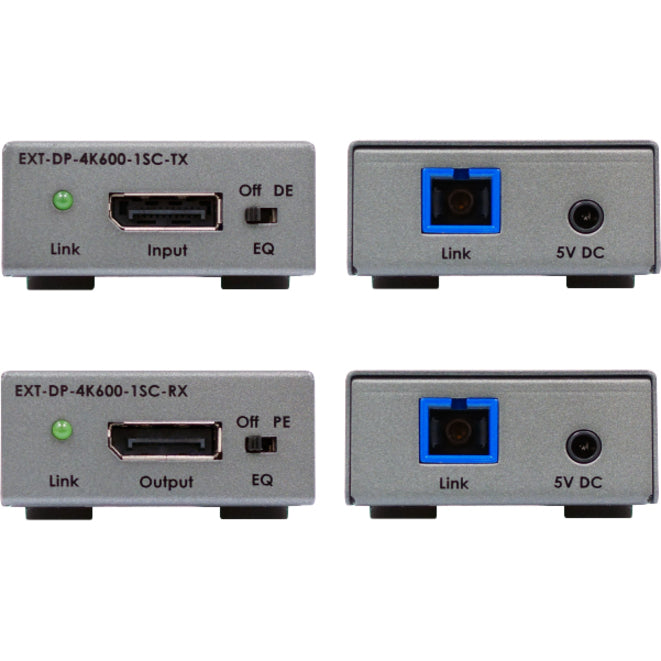

  • 1 x EXT-DP-4K600-1SC-TX - Sender unit
  • 1 x EXT-DP-4K600-1SC-RX - Receiver unit
  • 2 x DisplayPort Male-to-Male cables 6 feet
  • 2 x USB-to-DC cables 2.3 feet
  • 2 x EXT-PS52AIP-1.3-6-AL power supplies and 2 sets of regional AC plugs (US UK EU and AU)
  • 1 x Quick Start Guide
Limited Warranty2 Year
