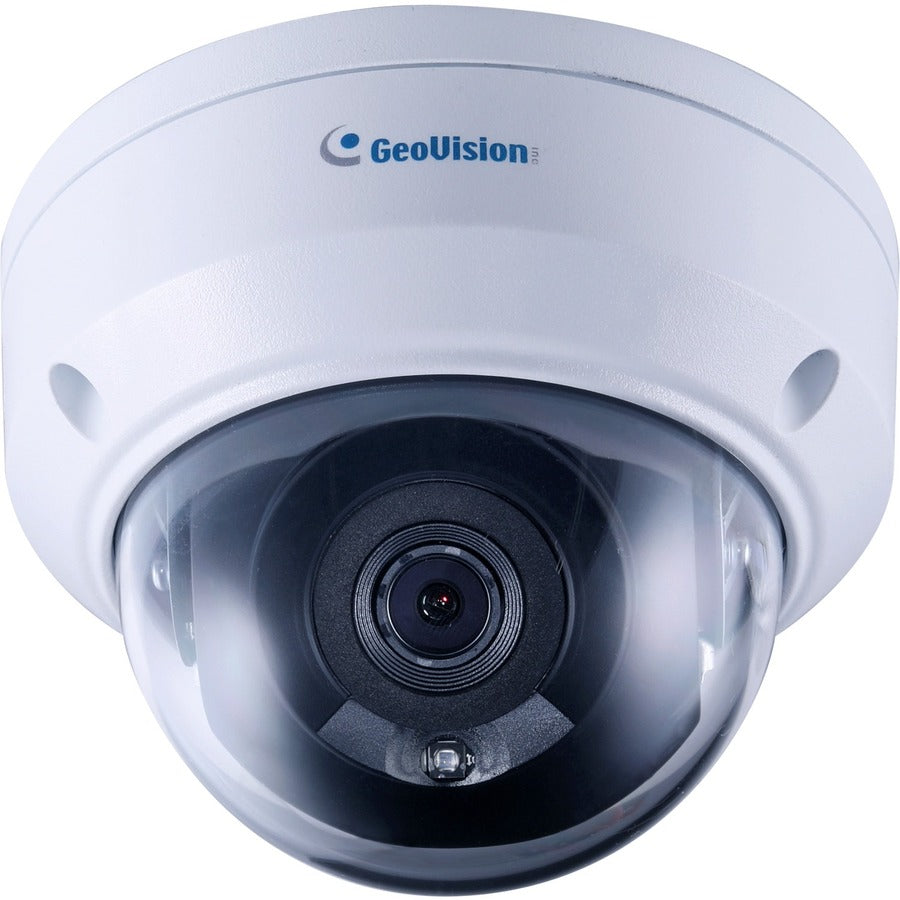

GeoVision GV-TDR4703-4F 4 Megapixel Outdoor Network Camera - Color - Dome

GeoVision GV-TDR4703-4F 4 Megapixel Outdoor Network Camera - Color - Dome

SKU: 1070155733      MFR: GeoVision Inc

Product Description

GeoVision GV-TDR4703-4F 4 Megapixel Outdoor Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - H.265 H.264 MJPEG - 2688 x 1520 - 4 mm Fixed Lens - CMOS - Pendant Mount Wall Mount Junction Box Mount Ceiling Mount Corner Mount Pole Mount - IK10 - IP67 - Vandal Resistant

Manufacturer : GeoVision Inc

Manufacturer Part No : GV-TDR4703-4F

Features

  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Triple streams from H.265 H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)

Product Details

Product TypeNetwork Camera
Maximum Aperturef/2
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution2688 x 1520
Maximum Focal Length4 mm
Image Sensor TypeCMOS
Effective Camera Resolution4 Megapixel
Minimum Operating Temperature-31°F (-35°C)
Maximum Operating Temperature140°F (60°C)
Network (RJ-45)Yes
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second
Remote ManagementYes
Night VisionYes
HD RecordingYes
Night Vision Distance98.43 ft
Number of IR LEDs1
Indoor/OutdoorOutdoor
Operating Humidity95%
Impact Protection RatingIK10
Ingress Protection RatingIP67
Night Vision TypeInfrared
Diameter4.3"
Color SupportedColor
Connectivity TechnologyWired
Minimum Illumination0 lux
Brand NameGeoVision
DurabilityVandal Resistant
Form FactorDome
ManufacturerGeoVision Inc
Product ModelGV-TDR4703-4F
Product Name4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
Mount TypePendant Mount
Video FormatsH.265
Manufacturer Part NumberGV-TDR4703-4F
Manufacturer Website Addresshttp://www.geovision.com.tw
Marketing Information

GV-TDR4703 is an outdoor fixed network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE.

Package Contents
  • 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide
  • Warranty Card
Weight (Approximate)15.87 oz
Maximum Frame Rate30 fps
Field of View82°
Lens Mount TypeM12-mount
Lens IncludedYes
Storage TypeMemory Card
FeaturesWide Dynamic Range
Lens TypeFixed
Input Voltage12 V DC
View full details
Regular price $306.99 USD
Regular price Sale price $306.99
Sale Sold out

Back Order

Get it by Thu, Feb 05 - Tue, Feb 10


Update



Shipping calculated at checkout.

GeoVision GV-TDR4703-4F 4 Megapixel Outdoor Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - H.265 H.264 MJPEG - 2688 x 1520 - 4 mm Fixed Lens - CMOS - Pendant Mount Wall Mount Junction Box Mount Ceiling Mount Corner Mount Pole Mount - IK10 - IP67 - Vandal Resistant
