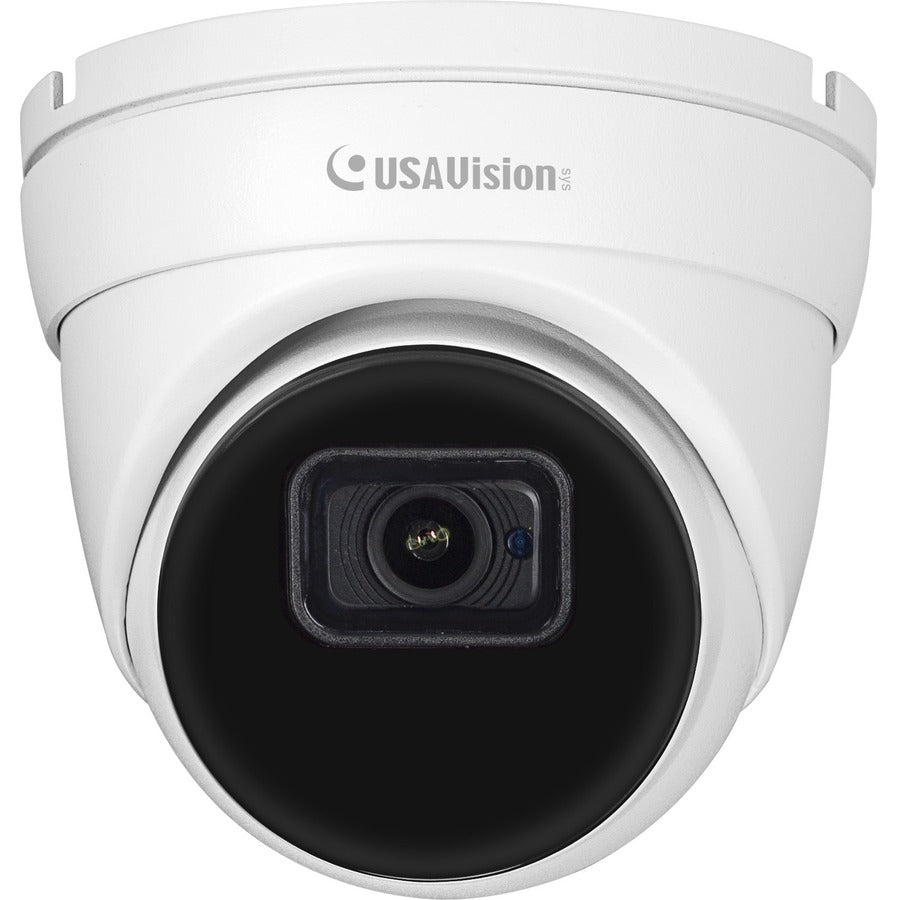

• GeoVision UA-R500F2 5 Megapixel Outdoor Network Camera - Color - Dome
    GeoVision UA-R500F2 5 Megapixel Outdoor Network Camera - Color - Dome
1 1

GeoVision UA-R500F2 5 Megapixel Outdoor Network Camera - Color - Dome

GeoVision UA-R500F2 5 Megapixel Outdoor Network Camera - Color - Dome

SKU: 1074083109      MFR: GeoVision Inc

Product Description

GeoVision UA-R500F2 5 Megapixel Outdoor Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - H.265 H.264 - 2592 x 1944 - 2.80 mm Fixed Lens - CMOS - IP66

Manufacturer : GeoVision Inc

Manufacturer Part No : 750-R500F20-000

Features

  • High quality imaging with progressive scan CMOS
  • Triple streams from H.265 H.264
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot up to 256 GB
  • Ingress protection (IP66)
  • DC 12V / PoE (IEEE 802.3af)
  • P2P function for GV-Eye app
  • ONVIF conforman

Product Details

Product TypeNetwork Camera
Maximum Aperturef/1.6
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution2592 x 1944
Maximum Frame Rate30 fps
Maximum Focal Length2.80 mm
Image Sensor TypeCMOS
Effective Camera Resolution5 Megapixel
Field of ViewHorizontal: 97° Vertical: 70.57° Diagonal: 128.66°
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature131°F (55°C)
Network (RJ-45)Yes
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/20000 Second
Lens Mount TypeM12-mount
Remote ManagementYes
Night VisionYes
HD RecordingYes
Lens IncludedYes
Night Vision Distance98.43 ft
Number of IR LEDs2
Storage TypeMemory Card
Indoor/OutdoorOutdoor
Operating Humidity95%
Product ColorWhite
Power Source TypeDC
Ingress Protection RatingIP66
Night Vision TypeInfrared
Diameter3.9"
Country of OriginChina
Height3.5"
Color SupportedColor
Connectivity TechnologyWired
Brand NameGeoVision
FeaturesWide Dynamic Range
Form FactorDome
Lens TypeFixed
ManufacturerGeoVision Inc
Product ModelUA-R500F2
Product Name5MP H.265 Super Low Lux WDR IR Eyeball Dome IP Camera
Video FormatsH.265
Input Voltage12 V DC
Manufacturer Part Number750-R500F20-000
Manufacturer Website Addresshttp://www.geovision.com.tw
Marketing Information

UA-R500F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE.
Package Contents
  • 5MP H.265 Super Low Lux WDR IR Eyeball Dome IP Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
Weight (Approximate)14.82 oz
View full details
$148.99 USD
$148.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

GeoVision UA-R500F2 5 Megapixel Outdoor Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - H.265 H.264 - 2592 x 1944 - 2.80 mm Fixed Lens - CMOS - IP66

Manufacturer : GeoVision Inc

Manufacturer Part No : 750-R500F20-000

Features

  • High quality imaging with progressive scan CMOS
  • Triple streams from H.265 H.264
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot up to 256 GB
  • Ingress protection (IP66)
  • DC 12V / PoE (IEEE 802.3af)
  • P2P function for GV-Eye app
  • ONVIF conforman

Product Details

Product TypeNetwork Camera
Maximum Aperturef/1.6
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution2592 x 1944
Maximum Frame Rate30 fps
Maximum Focal Length2.80 mm
Image Sensor TypeCMOS
Effective Camera Resolution5 Megapixel
Field of ViewHorizontal: 97° Vertical: 70.57° Diagonal: 128.66°
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature131°F (55°C)
Network (RJ-45)Yes
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/20000 Second
Lens Mount TypeM12-mount
Remote ManagementYes
Night VisionYes
HD RecordingYes
Lens IncludedYes
Night Vision Distance98.43 ft
Number of IR LEDs2
Storage TypeMemory Card
Indoor/OutdoorOutdoor
Operating Humidity95%
Product ColorWhite
Power Source TypeDC
Ingress Protection RatingIP66
Night Vision TypeInfrared
Diameter3.9"
Country of OriginChina
Height3.5"
Color SupportedColor
Connectivity TechnologyWired
Brand NameGeoVision
FeaturesWide Dynamic Range
Form FactorDome
Lens TypeFixed
ManufacturerGeoVision Inc
Product ModelUA-R500F2
Product Name5MP H.265 Super Low Lux WDR IR Eyeball Dome IP Camera
Video FormatsH.265
Input Voltage12 V DC
Manufacturer Part Number750-R500F20-000
Manufacturer Website Addresshttp://www.geovision.com.tw
Marketing Information

UA-R500F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE.
Package Contents
  • 5MP H.265 Super Low Lux WDR IR Eyeball Dome IP Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
Weight (Approximate)14.82 oz
