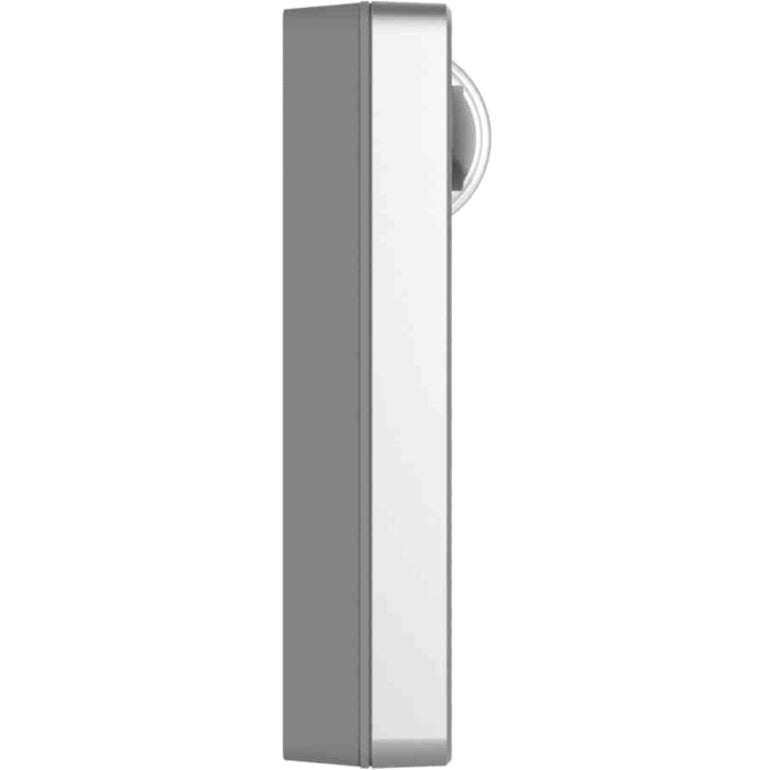

The GDS3710 is an IP Video Door System that also serves as a high-definition IP surveillance camera and IP intercom to offer facility access control and security monitoring for buildings of all sizes. This powerful IP Video Door System offers a 180-degree video viewing angle for wall-to-wall coverage has a built-in RFID chip reader for secure keyless entry includes a built-in microphone and speaker to support intercom functionality and offers alarm-in and alarm-out support for integration with existing security devices. The GDS3710 integrates with Grandstream's free management utility software GDS Manager allowing RFID card information video feeds as well as the device itself to be fully managed by this software. By being ONVIF Profile S compliant the GDS3710 can be integrated with any third party ONVIF compliant surveillance or recording solution. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms the GDS3710 delivers 1080p FHD video resolutions and offers exceptional performance in all lighting conditions. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly to smart phones SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for seamless installation bright LEDs for illumination motion detector for security protection lighting control switch and more. The combination of the GDS3710 Grandstream's GXP21xx IP phones GXV video phones and Grandstream Wave mobile app provide a complete solution for access control video intercom and security needs.

• Video Compression H.264 High Profile / Main Profile / Base Profile Motion JPEG
• Image Sensor Resolution 1/2.7" 2 Megapixel 1920H x 1080V
• Lens Type 1/2" F2.5 FOV: 180°(W) x 150°(H)
• Day & Night White LEDs with smart brightness control
• Max Video Resolution 1920x1080
• Max Frame Rate 30 frames per second
• Wide Dynamic Range Yes up to 120db
• Video Bit Rates 128 Kbps to 4 Mbps multi-rate for preview & recording
• Embedded Analytics Motion detection (up to 4 privacy masks)
• Snapshots Triggered upon events sent via email and/or FTP
• Multi-Stream Resolution
• High-performance streaming server allowing multiple simultaneous access
• Primary video stream: 1920 x 1080 resolution for continuous full HD recording
• Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
• Third video stream: 320 x 240 resolution for smartphone applications
• Network Protocol TCP/IP/UDP RTP/RTCP HTTP/HTTPS local upload and mass provisioning using TR-069 (pending) ARP/RARP ICMP LLDP-MED DNS DHCP SSH SMTP TFTP NTP STUN TLS SRTP
• SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
• Voice Codecs G.711µ/a-law G.722 DTMF (RFC2833 SIP INFO) AEC
• QoS Layer 2 QoS (802.1Q 802.1P) and Layer 3 QoS (ToS DiffServ MPLS)
• Security User and administrator level access control (pending) MD5 and MD5-sess based authentication 256-bit AES encrypted configuration file TLS SRTP HTTPS 802.1Q
• Upgrade/ Provisioning Firmware upgrade via TFTP/HTTP/HTTPS mass provisioning using TR-069 (Pending) or AES encrypted XML configuration file
• Audio Input Built-in microphone up to 1.5m with AEC
• Audio Output Built-in HD loudspeaker (2 watts) sound quality suitable for up to 3 m
• Button 12-key touchpad plus a capacitive doorbell button each with individual LED illumination
• RFID 125KHz: EM4100 (1 RFID card and 1 RFID key fob included)
• RFID Number Supported Up to 2000 recommended
• Alarm Input Yes 2 channels Vin < 15V for door sensor or other devices
• Alarm Output Yes 2 channels 125VAC/0.5A 30VDC/2A Normal Open or Normal Close for electric lock light switch or other devices
• Network Interface 10M/100M auto-sensing
• Expansion Interface RS485 Wiegand (26 bits) input and output
• Power Supply PoE IEEE 802.3af Class 3 or 12VDC/1A connection (AC power adapter not included)
• Interoperability ONVIF (Profile S)
• Ingress Protection Weather proof vandal resistant with support for extra back reinforcing metal plate
• Temperature and Humidity
• Operation: -30°C to 60°C (-22°F to 140°F)
• Storage: -35°C to 60°C (-31°F to 140°F)
• Humidity: 10% to 90% Non-condensing
• Protection Class IP66 (EN60529) IK09 (IEC62262)
• Compliance
• FCC: Part 15 subpart B Class B; Part 15 C; MPE
• CE: EN 55032 Class B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330;
• EN 301489; EN 62311
• RCM: AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1
• IC: ICES-003; RSS310
