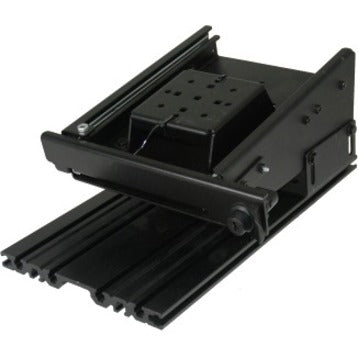

Havis Vehicle Mount for Computer Docking Station Notebook - Black Powder Coat

Manufacturer : Havis Inc

Manufacturer Part No : C-MD-301

Features

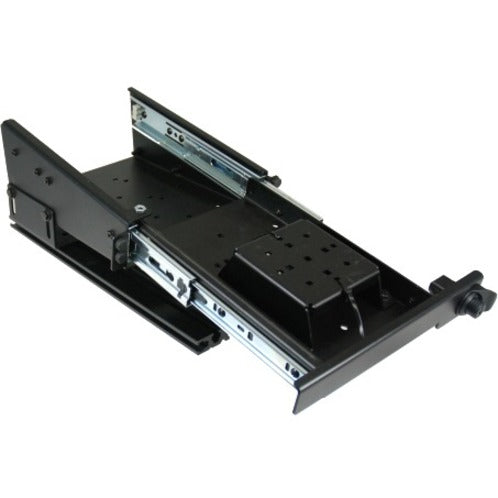

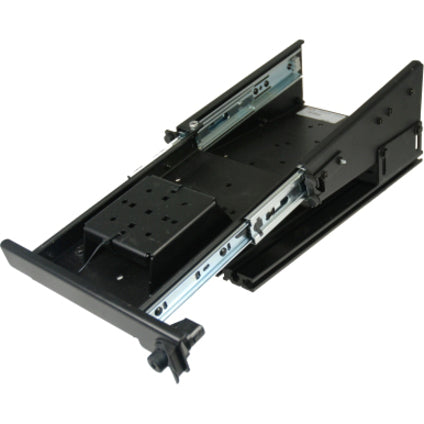

• Heavy duty computer mount motion device slide rail system

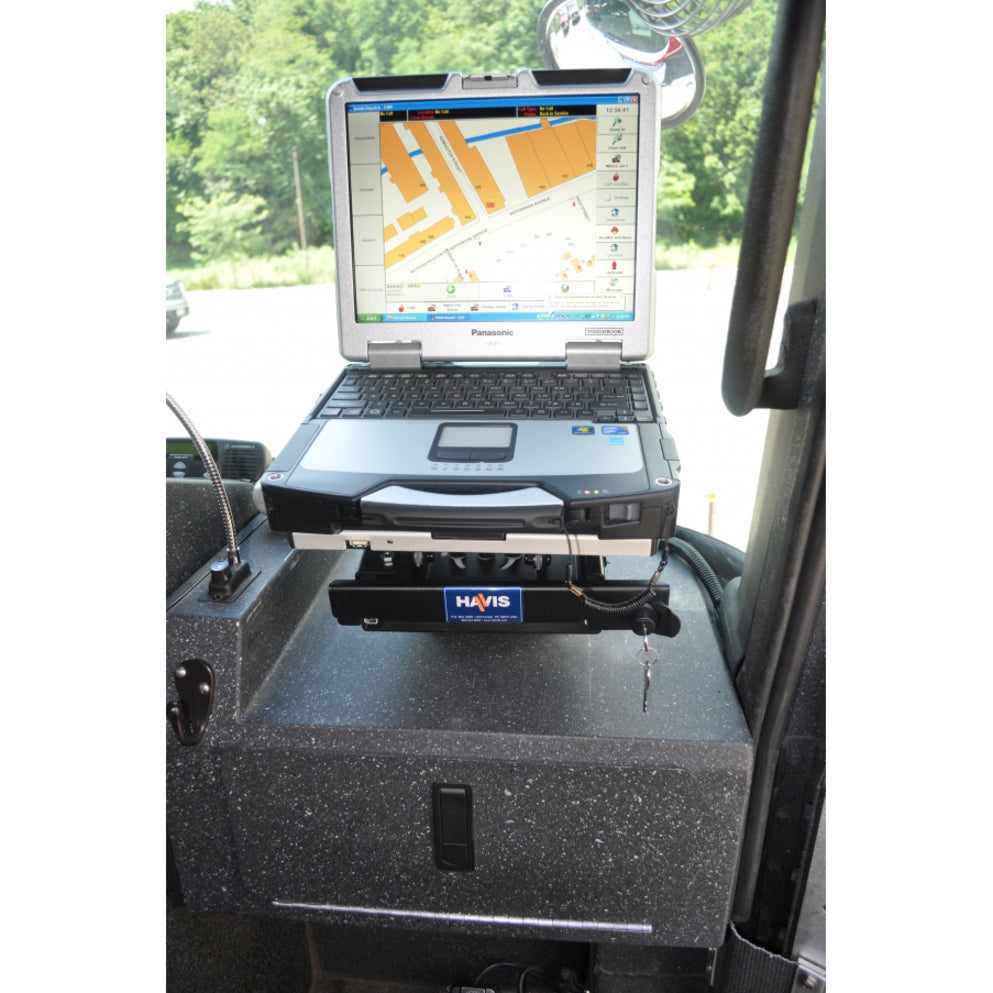

• Ideal for cab over "dog house" mounting or passenger side dash on custom fire apparatus
• Mounts to flat surface
• Used for docking station or universal laptop mounting (has no tilt or swivel)
• Optional C-MD-202 can be used under laptop mount for additional tilt or swivel
• Unique roller bearing carriage insures smooth friction free operation
• Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
• Slam action lock with two keys allows the mount to be locked in closed position
• Includes heavy duty mount bracket to raise assembly 1" inch if needed to clear dash lip
• 4.1" high x 11.5" long x 11" wide at the front and 10° angle. see drawing for more details
• Mounting footprint 4.5" long x 8.8" wide
• Closed length 11.5" slide out extension of up to 21"
• Can also be used for C-MKM-101 mounts (optional C-MD-202 not recommended)
• Not recommended to be used with C-MD-100 Series mounts
