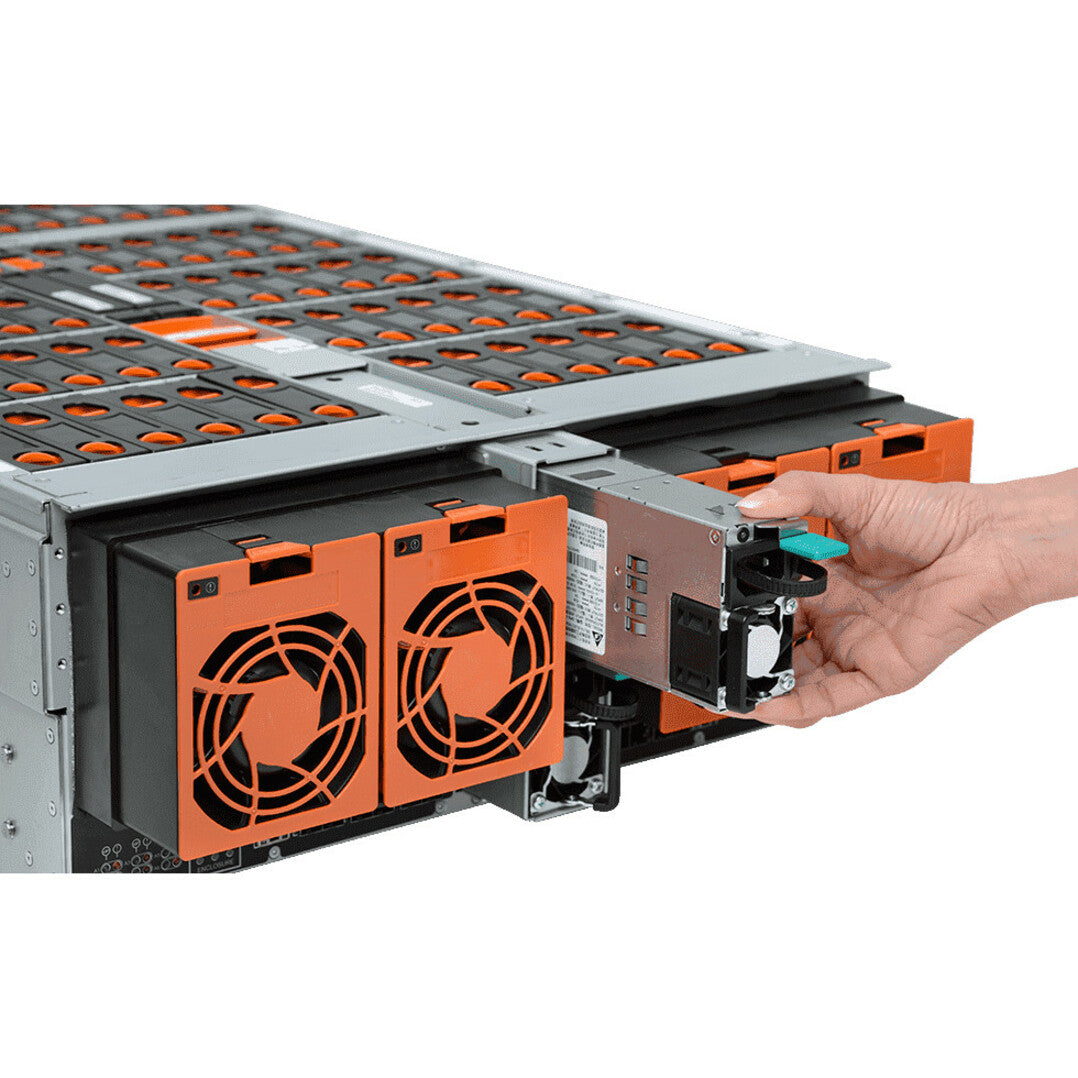

HGST Ultrastar Data60 SE4U60-24 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable

HGST Ultrastar Data60 SE4U60-24 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable

SKU: 1046010552      MFR: Western Digital Corporation

Product Description

HGST Ultrastar Data60 SE4U60-24 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable - 60 x HDD Supported - 24 x SSD Supported - 60 x Total Bay - 60 x 3.5" Bay

Manufacturer : Western Digital Corporation

Manufacturer Part No : 1ES0375

Features

  • Up to 60 Ultrastar® He12 HDDs(SAS or SATA)
  • Hybrid support for up to 24 SSDs(SAS or SATA) to create a dataacceleration tier
  • Up to 720TB of raw storage in 4U
  • Dual-port SAS for high availability orsingle-port SATA for low cost
  • 4 rack units height 712mm depth
  • Up to 12 x 12Gb/s SAS3 host connections
  • Patented IsoVibe technology ensuresmaximum performance even in heavyworkloads
  • Enterprise-grade redundant andhot-swappable PSUs IO Modulesand fans
  • Improved cooling from innovativepatented ArcticFlow technology
  • Rack-mounted top cover for quick andeasy service

Product Details

Product TypeDrive Enclosure
Number of Total Expansion Bays60
Number of 3.5" Bays60
Brand NameHGST
Form FactorRack-mountable
Host Interface12Gb/s SAS
Total Hard Drive Capacity Installed192 TB
Number of Hard Drives Supported60
Number of Hard Drives Installed24
Number of Solid State Drive Supported24
Number of Solid State Drive InstalledNo
Cooling FanYes
Height6.9"
Width17.6"
Depth28"
Rack Height4U
ManufacturerWestern Digital Corporation
Product ModelSE4U60-24
Product Name60-Bay Hybrid Storage Platform
Product LineUltrastar Data60
Manufacturer Part Number1ES0375
Manufacturer Website Addresshttp://www.wdc.com
Marketing InformationDesigned for High Density and Flexibility
The Ultrastar Data60 is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems delivering high density and the flexibility to balance performance with cost. The Ultrastar Data60 provides up to 720TB1 of raw storage in a compact and efficient form factor. HGST HelioSeal® drives ensure cool running quiet operation and high reliability. A high performance data tier can be set up for demanding applications by using SSDs in up to 24 of the drive slots enabling the ability to serve both fast data and big data from a single platform.

Building on 50+ Years of Storage Design Experience
Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side we address these challenges through vertical innovation a set of technologies developed based on a holistic view of devices platform and their interactions. The first two of these patented technologies are IsoVibe™ and ArcticFlow™. IsoVibe reduces vibration-induced performance degradation while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability enabling our five-year limited warranty on the entire platform.

Designed for the Enterprise and the Cloud
This new platform addresses the demanding storage needs of large enterprise customers storage OEMs cloud service providers and resellers/integrators that require dense shared HDD or hybrid storage. The Ultrastar Data60 provides the flexibility to specify the HDD and SSD combinations to balance capacity performance and cost.
Packaged Quantity1
Limited Warranty5 Year
View full details
$1,288,658.99 USD
$1,288,658.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

HGST Ultrastar Data60 SE4U60-24 Drive Enclosure - 12Gb/s SAS Host Interface - 4U Rack-mountable - 60 x HDD Supported - 24 x SSD Supported - 60 x Total Bay - 60 x 3.5" Bay

Manufacturer : Western Digital Corporation

Manufacturer Part No : 1ES0375

Features

  • Up to 60 Ultrastar® He12 HDDs(SAS or SATA)
  • Hybrid support for up to 24 SSDs(SAS or SATA) to create a dataacceleration tier
  • Up to 720TB of raw storage in 4U
  • Dual-port SAS for high availability orsingle-port SATA for low cost
  • 4 rack units height 712mm depth
  • Up to 12 x 12Gb/s SAS3 host connections
  • Patented IsoVibe technology ensuresmaximum performance even in heavyworkloads
  • Enterprise-grade redundant andhot-swappable PSUs IO Modulesand fans
  • Improved cooling from innovativepatented ArcticFlow technology
  • Rack-mounted top cover for quick andeasy service

Product Details

Product TypeDrive Enclosure
Number of Total Expansion Bays60
Number of 3.5" Bays60
Brand NameHGST
Form FactorRack-mountable
Host Interface12Gb/s SAS
Total Hard Drive Capacity Installed192 TB
Number of Hard Drives Supported60
Number of Hard Drives Installed24
Number of Solid State Drive Supported24
Number of Solid State Drive InstalledNo
Cooling FanYes
Height6.9"
Width17.6"
Depth28"
Rack Height4U
ManufacturerWestern Digital Corporation
Product ModelSE4U60-24
Product Name60-Bay Hybrid Storage Platform
Product LineUltrastar Data60
Manufacturer Part Number1ES0375
Manufacturer Website Addresshttp://www.wdc.com
Marketing InformationDesigned for High Density and Flexibility
The Ultrastar Data60 is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems delivering high density and the flexibility to balance performance with cost. The Ultrastar Data60 provides up to 720TB1 of raw storage in a compact and efficient form factor. HGST HelioSeal® drives ensure cool running quiet operation and high reliability. A high performance data tier can be set up for demanding applications by using SSDs in up to 24 of the drive slots enabling the ability to serve both fast data and big data from a single platform.

Building on 50+ Years of Storage Design Experience
Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side we address these challenges through vertical innovation a set of technologies developed based on a holistic view of devices platform and their interactions. The first two of these patented technologies are IsoVibe™ and ArcticFlow™. IsoVibe reduces vibration-induced performance degradation while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability enabling our five-year limited warranty on the entire platform.

Designed for the Enterprise and the Cloud
This new platform addresses the demanding storage needs of large enterprise customers storage OEMs cloud service providers and resellers/integrators that require dense shared HDD or hybrid storage. The Ultrastar Data60 provides the flexibility to specify the HDD and SSD combinations to balance capacity performance and cost.
Packaged Quantity1
Limited Warranty5 Year
