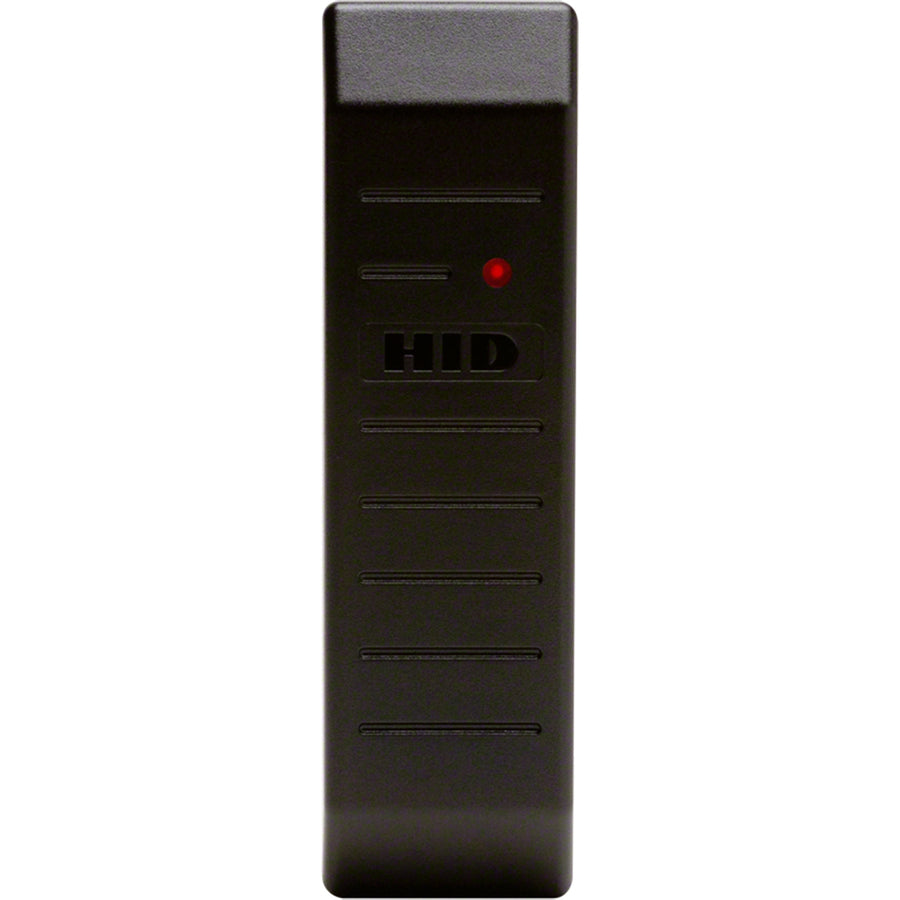

HID MiniProx Reader - 5.50" Operating Range - Wiegand - Black

Manufacturer : HID Global Corporation

Manufacturer Part No : 5365EKP00

Features

• Hazardous Location MiniProx® Reader Mounting - Designed to mount onto a junction box included with each reader. The junction box is attached to an appropriate surface location utilizing four holes
• Security - Recognizes card formats up to 85 bits with over 137 billion unique codes.
• Audiovisual Indication - When a proximity card is presented to the reader the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
• Diagnostics - On reader power-up an internal self-test routine checks and verifies the setup configuration determines the internal or external control of the LED and beeper and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
• Indoor/outdoor Design - Sealed in a rugged weatherized polycarbonate enclosure designed to withstand harsh environments providing reliable performance and a high degree of vandal resistance
• Easily Interfaced - Wiegand output model interfaces with all existing Wiegand protocol access control systems. Clock-and-Data (magnetic stripe) model interfaces with most systems that accept magnetic stripe readers.
• Options - LED and beeper operation and custom label.
