The Fastest External Desktop Storage - 14000MB/s! Powered by M.2 NVMe SSD's

• Blistering 14000 MB/s Transfer Performance!
• 4x Faster than Thunderbolt™ 3!
• Up to four M.2 NVMe SSD's
• PCIe 3.0 x16 Host Interface
• Windows Linux & macOS platforms

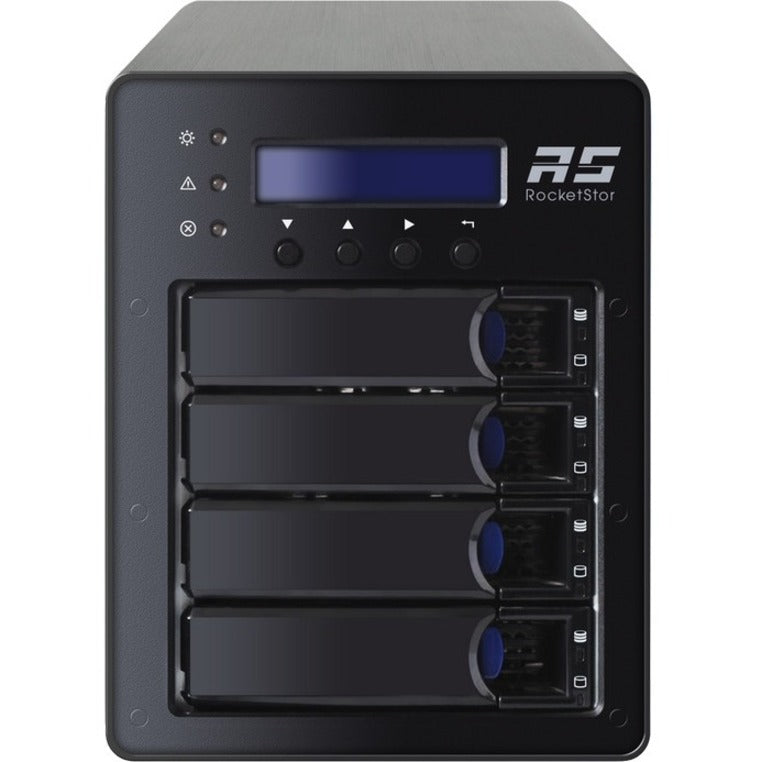

The SSD6540M is designed for professional grade performance-hungry applications that demand uncompromised transfer bandwidth.

The unique NVMe architecture provides dedicated PCIe 3.0 x4 bandwidth for each drive-bay; this allows each M.2 SSD to interface directly with the platform's CPU and deliver sustained transfer performance in excess of 14000MB/s - faster than any other external desktop RAID storage solution in today's marketplace!

PCIe Gen3 x16 NVMe RAID Turnkey Solution

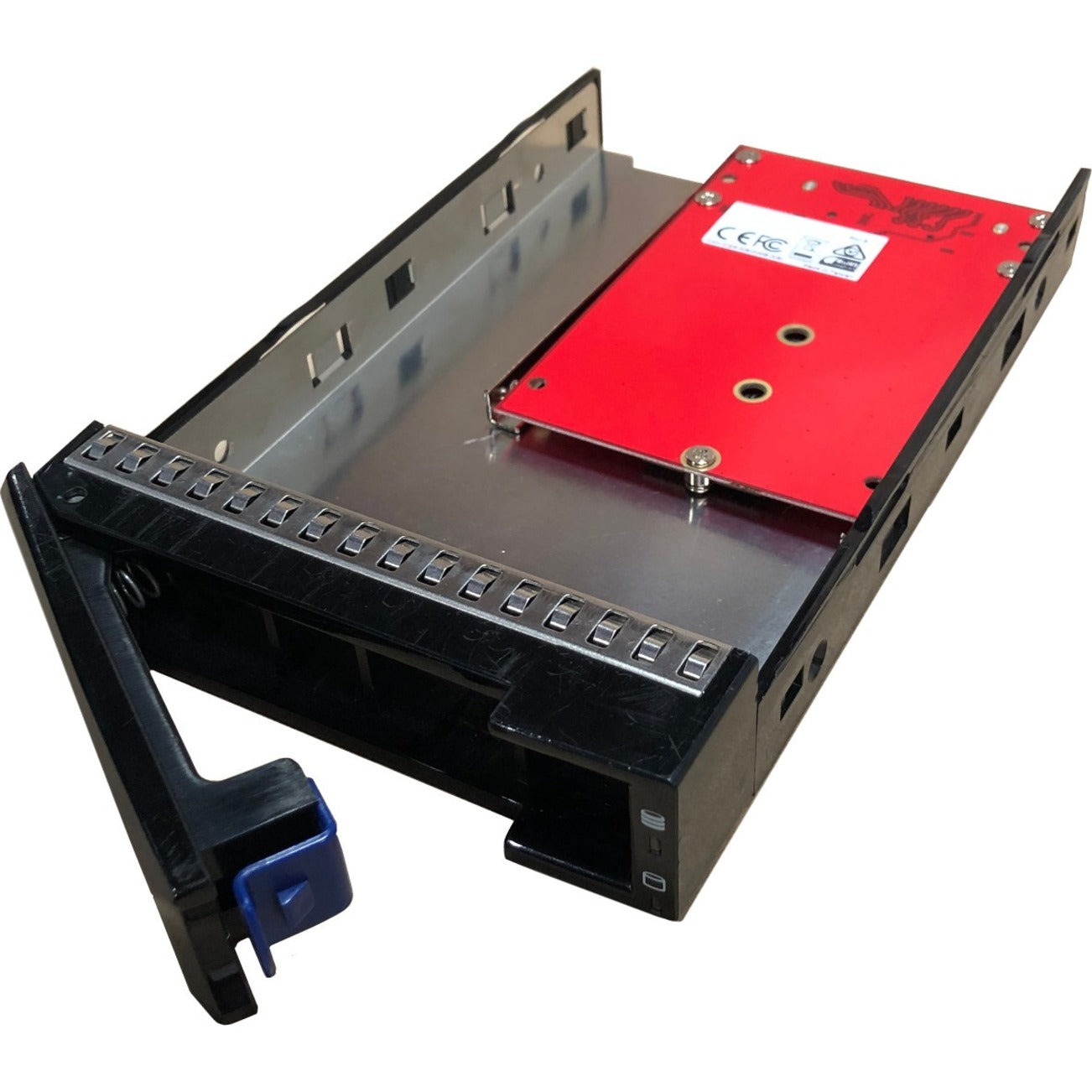

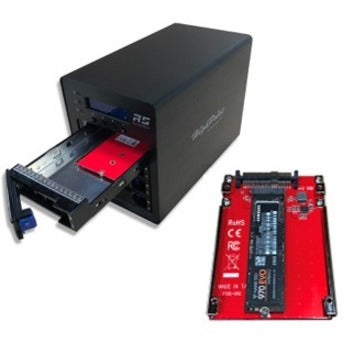

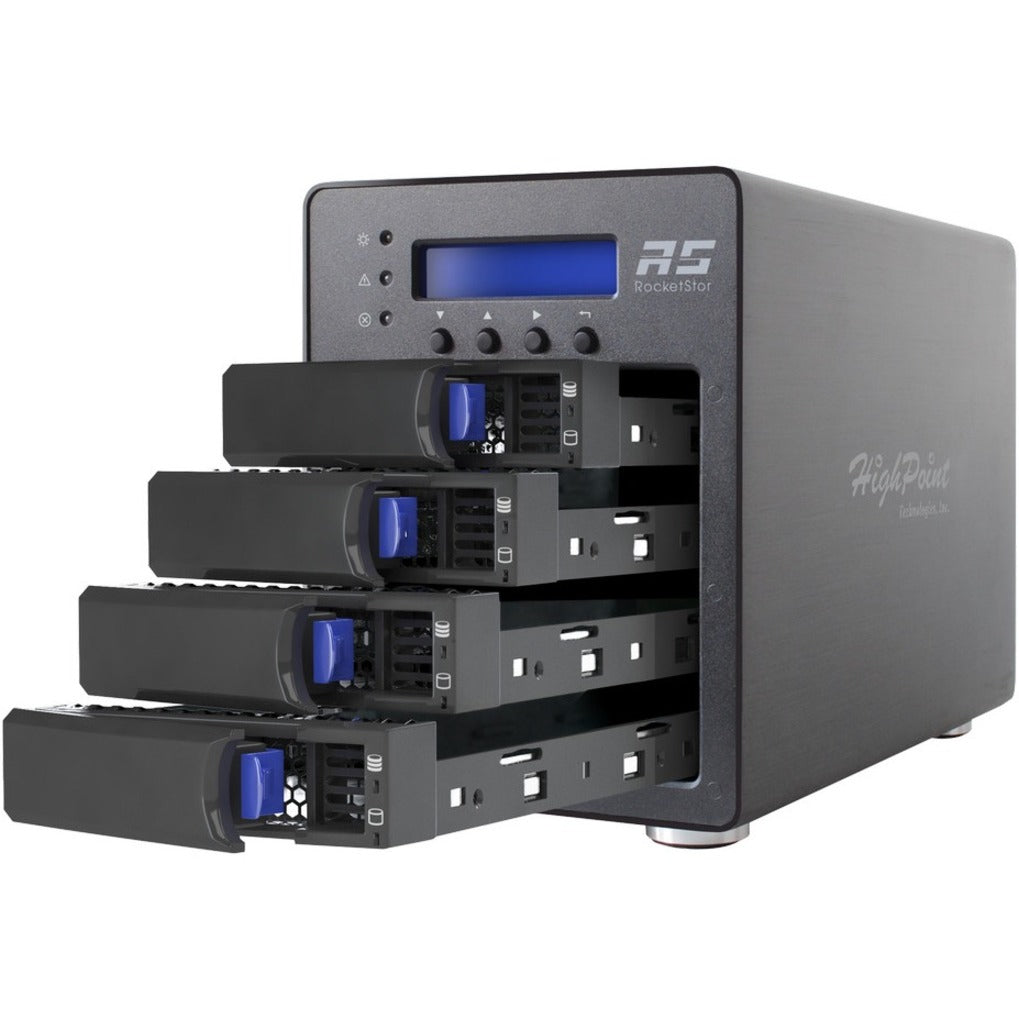

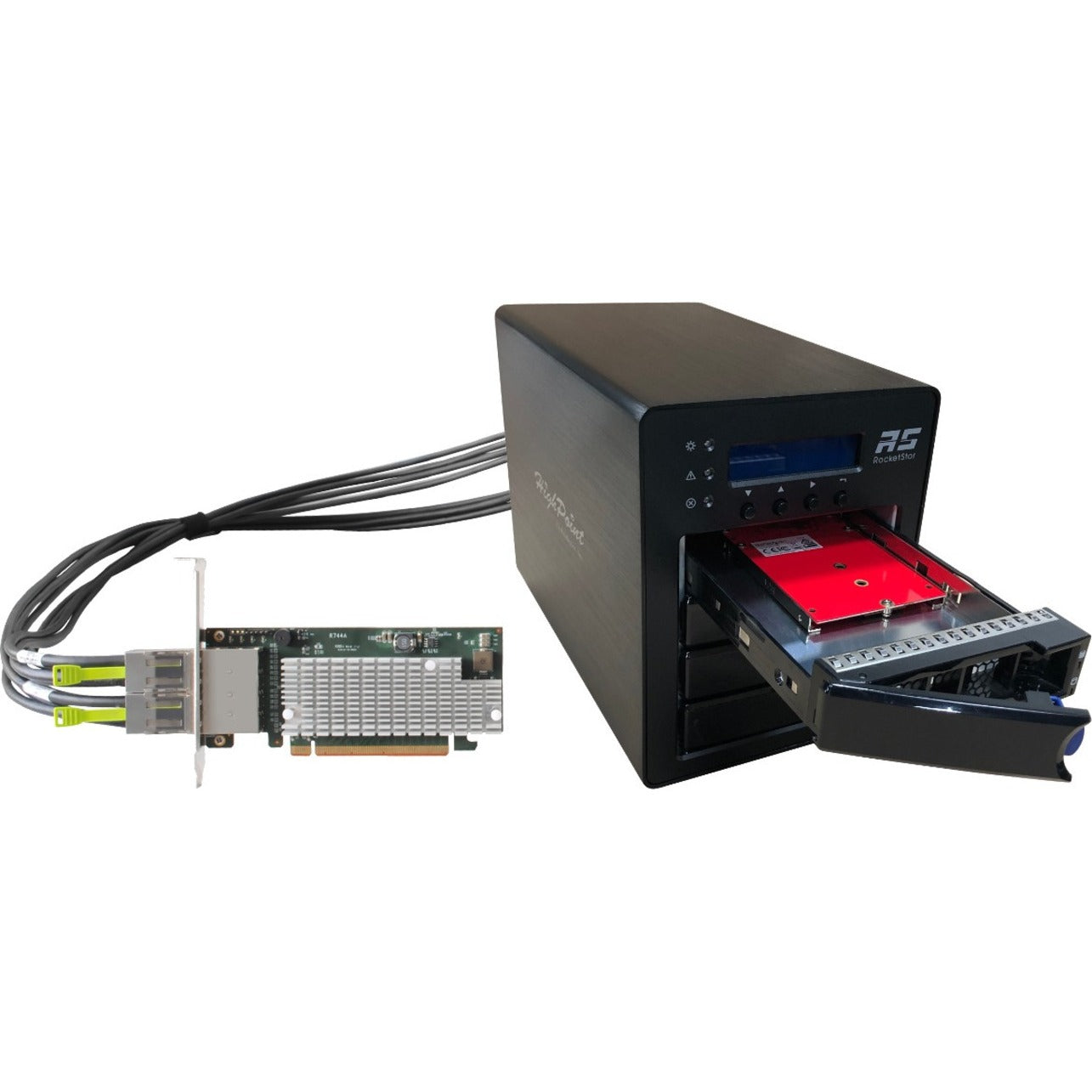

The SSD6540M is the industry's first external NVMe storage solution to deliver uncompromised end-to-end PCIe Gen 3.0 x16 transfer bandwidth. Our innovative external data cables work in conjunction with the removable M.2 drive bays to deliver dedicated PCIe 3.0 x4 transfer bandwidth; this unique performance-focused architecture ensures each M.2 SSD operates at peak performance. The SSD6540M is a complete stand-alone solution and includes a 4-Bay NVMe M.2 enclosure PCIe 3.0 x16 controller card with external SFF-8644 connectors two SFF- 8644 PCIe Gen3 x8 data cables and all necessary fastening and power accessories.

Powered by Proven RAID Technology

The SSD6540M is powered by our industry proven NVMe RAID technology and can accommodate a variety of RAID and non-RAID storage configurations including single M.2 SSD's and multiple RAID arrays.

• RAID 0: Also known as a "stripe" array. This mode delivers Maximum Performance and requires 2 to 4 M.2 SSD's.
• RAID 1: This mode creates a hidden duplicate of the target M.2 SSD and requires 2 drives.
• RAID 1/0: Mirrored Stripe arrays. This mode requires 4 M.2 SSD's - it will mirror the data of one stripe array to a second hidden stripe array for security.

Robust & Simple NVMe RAID Management

Each SSD6540M RAID Enclosure includes a simple intuitive web-based management interface. A Quick Configuration menu allows new users to get everything up and running with a few simple clicks. Experienced Pros can fine tune configurations for specific applications using the Advanced Options menu.

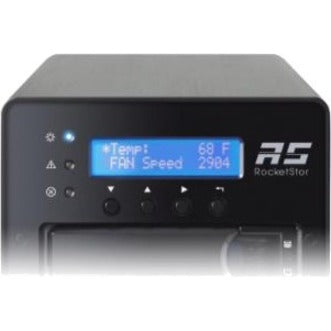

Integrated TRIM & S.M.A.R.T. Monitoring with Terabyte Written (TBW) Tracking: TRIM streamlines performance and expands the lifespan of NVMe storage by enabling each SSD to handle garbage collection more efficiently which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check the temperature voltage and TBW of each NVMe SSD.

Rapidly Adapts to Changing Workflows

The SSD6540M's flexible architecture enables you to
adapt or transform NVMe storage to meet the needs of
each application.

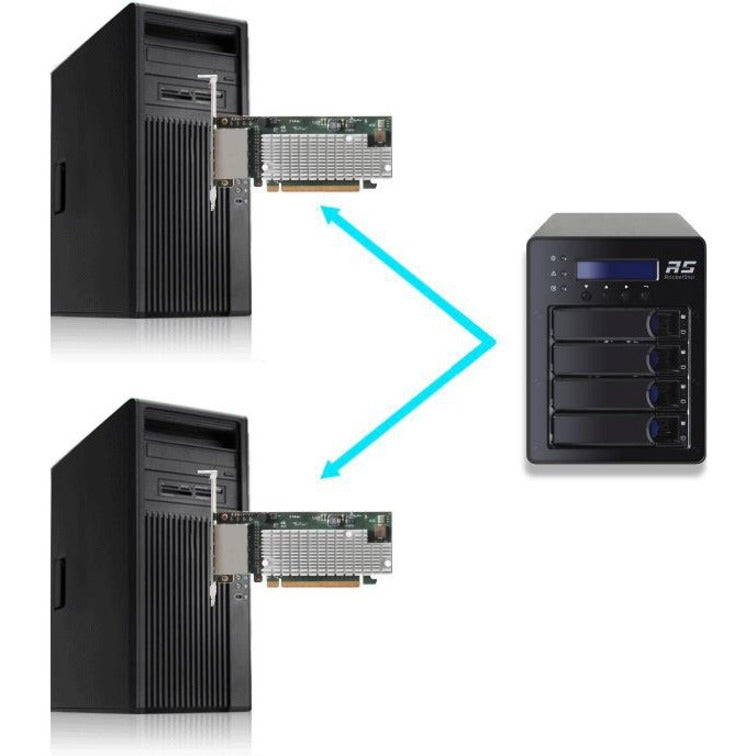

A single SSD6540M enclosure can be shared between multiple desktops and workstations - the included controller card is also available as a standalone accessory and can be installed into any system with a free dedicated PCIe 3.0 x16 slot.

In addition M.2 SSD's hosted by the SSD6540M can be installed into any M.2 capable SSD7100 series RAID controller; your array and data will remain intact and accessible.

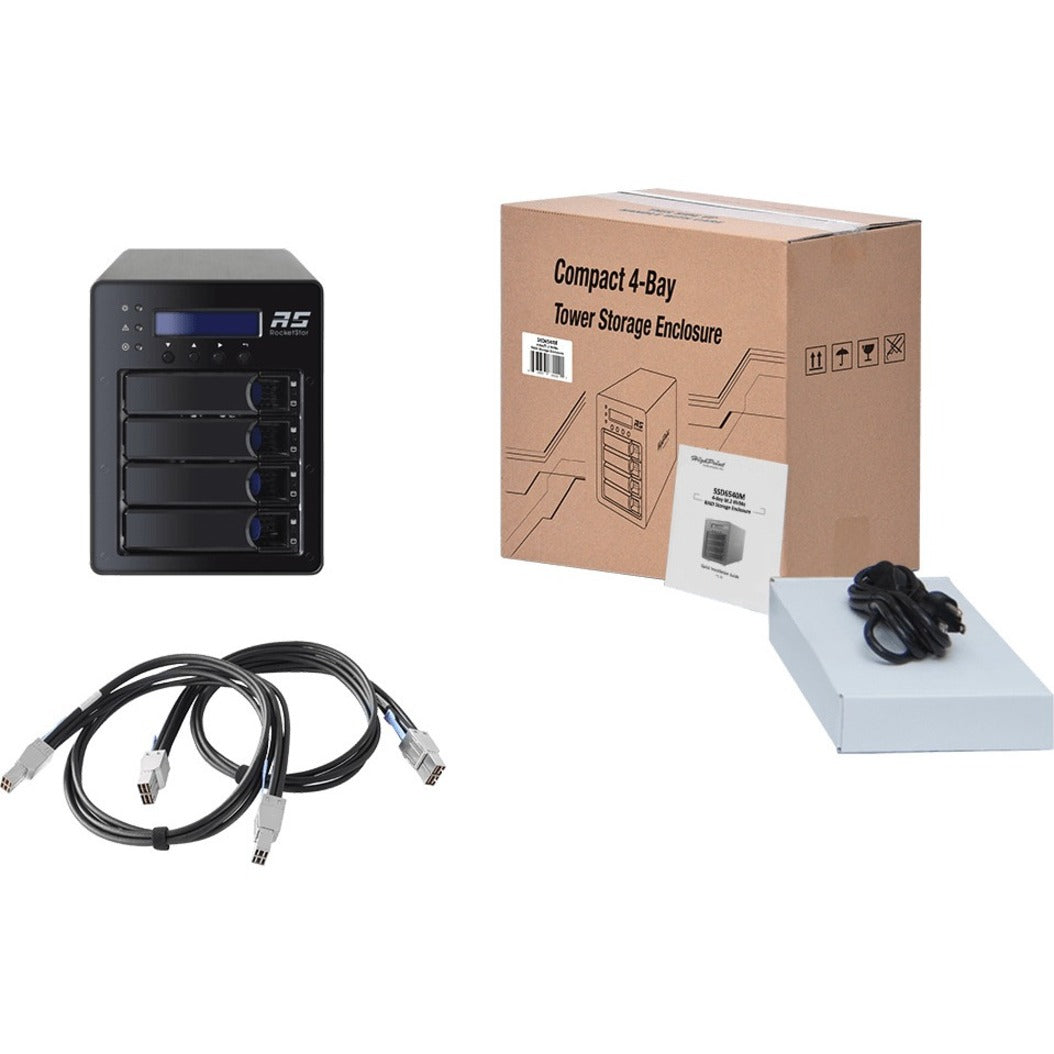

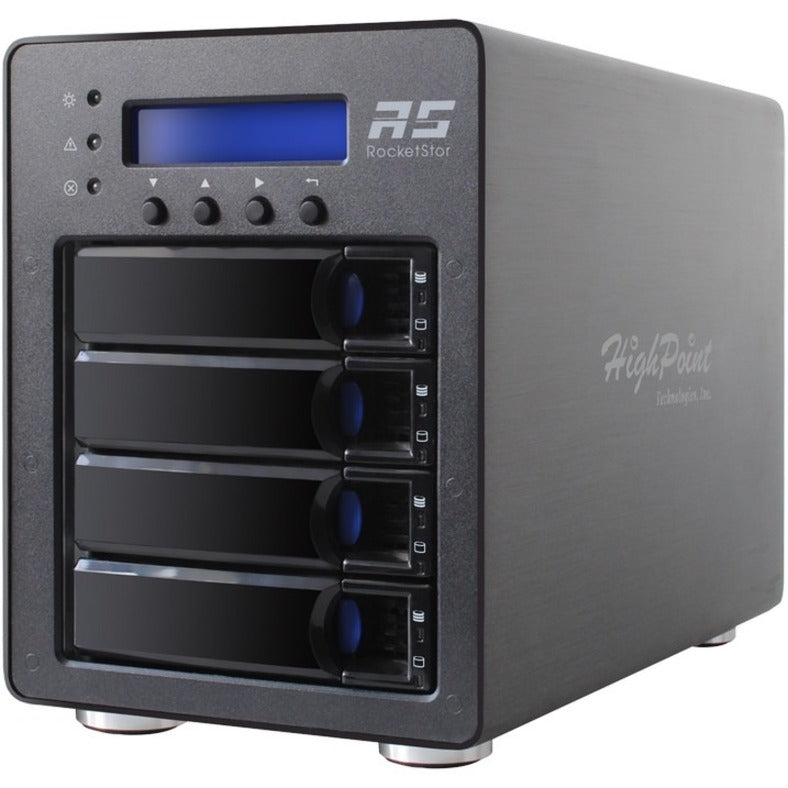

• 4-Bay M.2 NVMe RAID Storage Solution
• 1 x PCIe 3.0 x16 RAID Controller
• 2 x SFF-8644 8X Cables
• 1 x Quick Installation Guide
