True NVMe Surprise Add and Remove Capability!

The SSD7580B Incorporates True NVMe Surprise Add & Remove Capability

Hot-Swap capability a true boon for NVMebased storage solutions and is especially useful for servicing NVMe storage solutions and appliances in the field. Hot-swap can significantly reduce or even eliminate the need for downtime. The SSD7580B allows administrators to add remove or replace NVMe SSDs without powering down the host platform on the fly.
NVMe drives though considerably more reliable than their platter counterparts still must be replaced on a regular basis when employed by many datacenter or industrial applications where storage devices are expected to remain active for extended periods of time including truly grueling 24/7/365 workflows. NVMe media's one weakness is the finite write cycle; M.2 SSDs in particular can rapidly reach their TBW limitations in such environments. TBW expiration requires disk replacement which results in downtime - this is the advantage of hot-swap capability.

True Hot-Swap: Not just Hot-Plug or Hot Replaceable

In the past replacing an NVMe SSD meant powering down the entire system. More recent solutions may employ Hot-Plug capability; the ability to recognize drives added for specific tasks- such as rebuilding an array or support Hot-Replaceable drives; an unused SSD that is already connected to the controller can be used to rebuild an array). However both of these methods still require a restart in order for the operating system to recognize the hardware changes.
However the SSD7580B's hot-swap capability works exactly like you expect it to. The SSD7580B allows customers to add or remove drives on the fly as necessity demands. This includes RAID and single-drive configurations. The controller will notify the system of any changes in real time - no reboot is required. The host system can remain active throughout the procedure.

Versatile Cabling Options: Hot-Swap Enabled

The SSD7580B's Hot-Plug capability works with a variety of industry standard connectors - not just SFF-8639 which is employed directly by U.2 media. We offer a selection of PCIe Gen4 capable cabling accessories capable of supporting hot-swappable storage configurations including SFF-8643 connections and SFF-8611 Oculink backplanes. This allows the SSD7580B to support any industry standard U.2 or M.2 NVMe SSD.

Cross-Sync Compatible - Double Your Storage Capability

In addition to Hot-Swap support the SSD7580B is Cross-Sync compatible. This enables customers to configure dual SSD7580B controllers to function as a single RAID device and support up to 16 U.2/M.2 NVMe SSDs in one or more RAID arrays. Such combinations are capable of supporting truly extreme levels of performance and storage capability - over 200TB of storage @ 40000 MB/s!

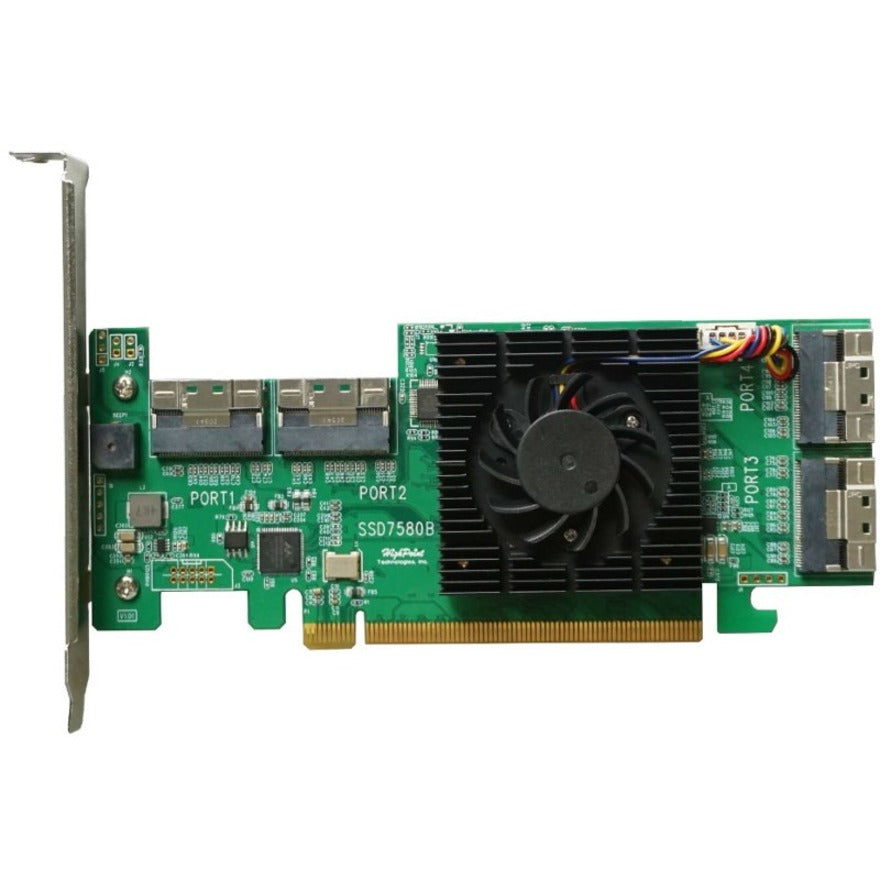

• SSD7580B PCIe Gen4 U.2 NVMe RAID Controller
• 1 x Quick Installation Guide (QIG)
• 1x Low-Profile bracket
