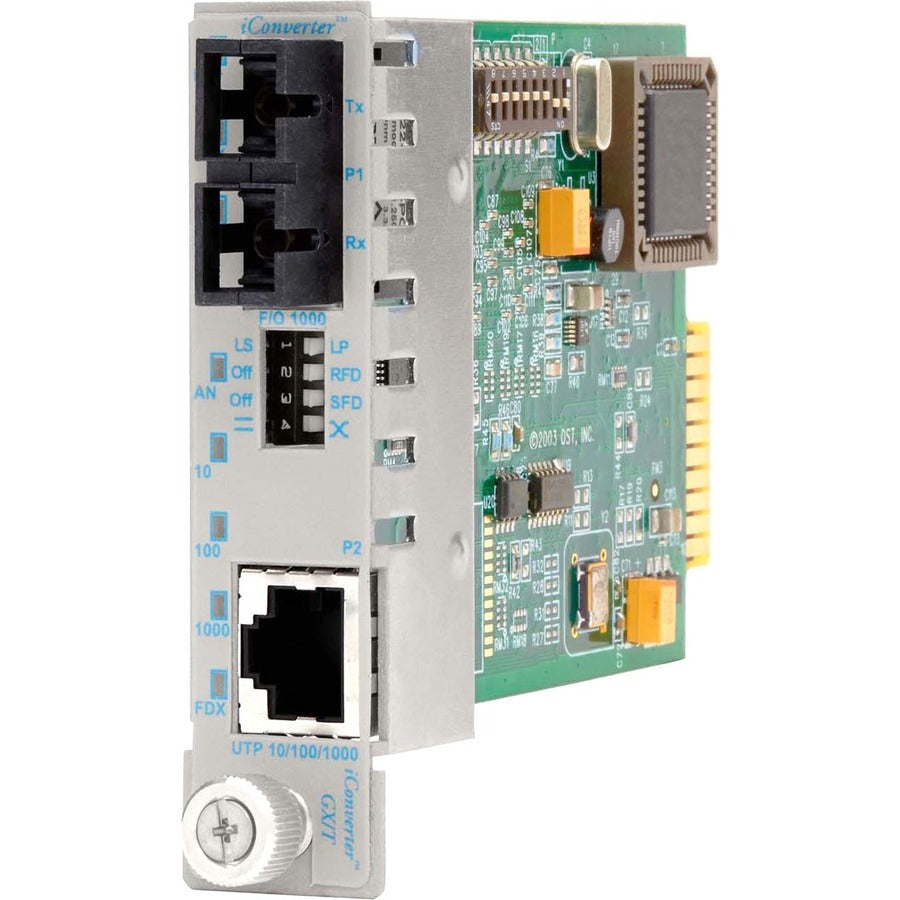

iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Single-Mode 12km Module

iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Single-Mode 12km Module

SKU: 10274285      MFR: Omnitron Systems

GTIN: 0800975026254

Product Description

iConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter SC Single-Mode 12km Module - 1 x 10/100/1000BASE-T; 1 x 1000BASE-LX; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8523-1

Features

  • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 10Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ab 1000BASE-T
Product SeriesGX/T
Brand NameOmnitron Systems
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8523-1-x
Product NameiConverter GX/T SC Single-Mode 12km Plug-In Module
Network Technology10Base-T
Package TypeRetail
Power Consumption3 W
Product LineiConverter
Manufacturer Part Number8523-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe GX/T provides 10/100/1000 UTP copper to Gigabit Ethernet fiber conversion and can be used in a managed or unmanaged fashion.

The GX/T is ideal in network core or Central Office (CO) applications when conversion is required from a 10/100/1000 core switch to GigE fiber and in edge applications when the GigE fiber is converted back into 10/100/1000 copper and delivered to a departmental or Customer Premise (CPE) switch.

The UTP port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with both hardware and software manual override controls.

Advanced features include VLAN which allows network managers control the traffic flow between the UTP fiber and backplane ports to enhance security and Port Access Control which provides the ability to enable or disable individual ports to control delivery of services to customers. The GX/T also supports port level MIB statistics reporting a real-time packet statistics to provide performance and operational monitoring.

The GX/T features user-selectable Link Propagate Link Segment Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection isolation and reporting.

iConverter GX/T modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis or in a 1-Module AC/DC powered chassis.


  • Conforms to 10BASE-T 100BASE-TX 1000BASE-T and 1000BASE-X specifications
  • Supports VLANs Port Access Control and MIB statistics
  • UTP port supports 10/100/1000 and Half/Full-Duplex auto-negotiation
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported7.46 Mile
Package Contents
  • iConverter GX/T SC Single-Mode 12km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Additional Information
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting.
  • MTBF(hrs): 956023

Controls:

  • BP Enable
  • X-Over
  • LS/LP
  • RFD
  • UTP Auto/Man
  • 10/100/1000
  • UTP FD/HD
  • F/O FD/HD
Weight (Approximate)8 oz
Product FamilyiConverter GX/T
