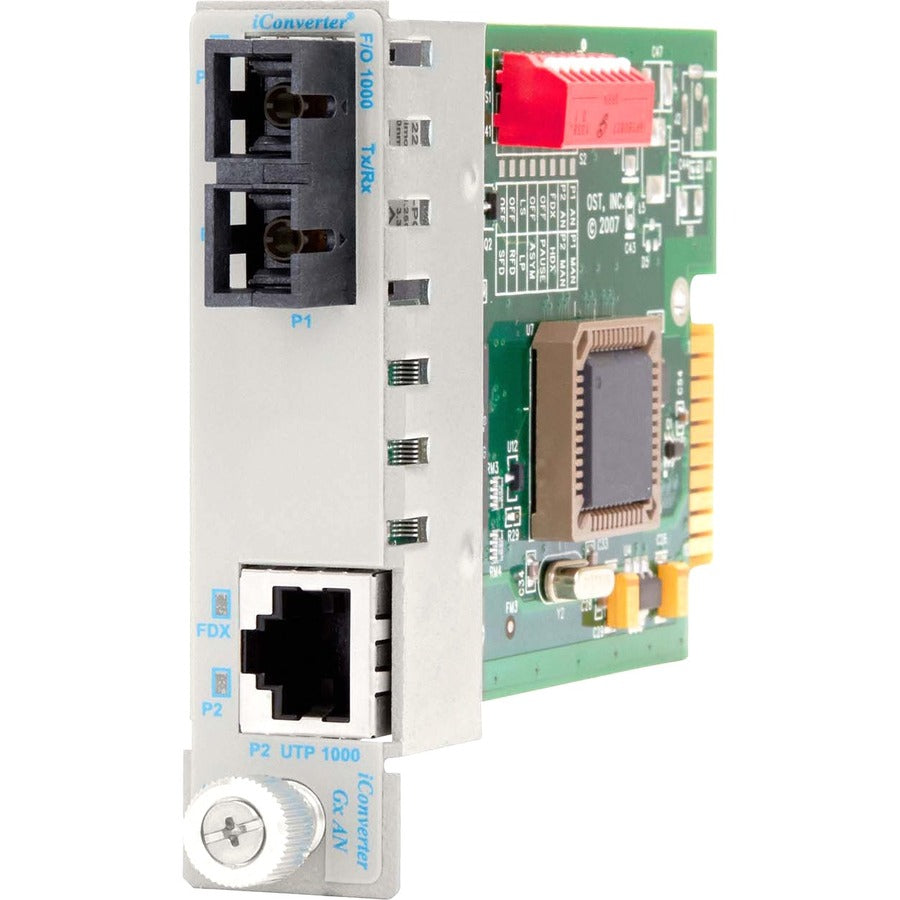

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 12km Module

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 12km Module

SKU: 1016689892      MFR: Omnitron Systems

GTIN: 0800975023116

Product Description

iConverter 1000Mbps Gigabit Ethernet Fiber Media Converter RJ45 SC Single-Mode 12km Module - 1 x 1000BASE-T; 1 x 1000BASE-LX; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8503N-1

Features

  • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilyiConverter Gx AN
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network Technology1000Base-T
Maximum Distance Supported7.46 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Parallel PortNo
Management PortNo
Digital AudioNo
Digital Audio/VideoNo
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
Product SeriesGx AN
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
ManufacturerOmnitron Systems
Product Model8503N-1-x
Product NameiConverter Gx AN SC Single-Mode 12km Plug-In Module
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8503N-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter Gx AN Media Converter is a manageable media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices.

The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.

  • SFP models support Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
  • Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber
  • UTP auto or forced negotitaion of duplex modes and pause capabilities
  • Fiber port supports auto or manual negotiation
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting
  • Management of the plug-in module is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook" provides module information remote parameter configuration and trap notification
  • Plug-in modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Package Contents
  • iConverter Gx AN SC Single-Mode 12km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
