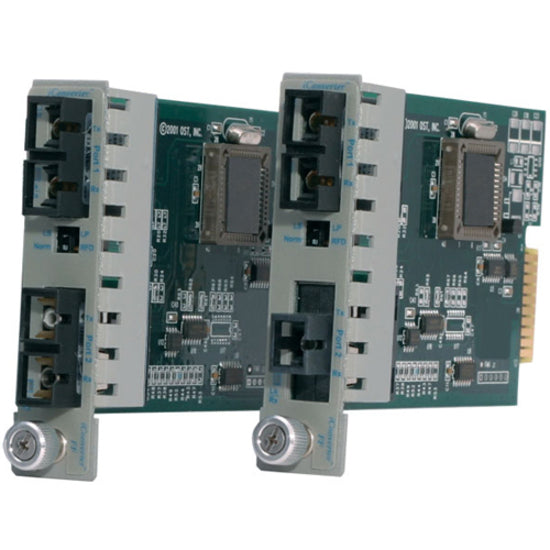

iConverter 1000Mbps Gigabit Ethernet Fiber to Single-Fiber Media Converter SC Multimode 550m to Single-Mode BiDi 20km Module

iConverter 1000Mbps Gigabit Ethernet Fiber to Single-Fiber Media Converter SC Multimode 550m to Single-Mode BiDi 20km Module

SKU: 1012647883      MFR: Omnitron Systems

GTIN: 0800975018075

Product Description

iConverter 1000Mbps Gigabit Ethernet Fiber to Single-Fiber Media Converter SC Multimode 550m to Single-Mode BiDi 20km Module - 1 x 1000BASE-SX; 1 x 1000BASE-BX-U (1310/1550); Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8650-1

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • With 1000Base-SX technology get up to 1000Mbps data transfer rate over optical fiber cable
  • Rack mounting enables you to organize wires & secure cables for professional installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Number of SC Ports2
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength850 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product Series1000FF
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8650-1-x
Product NameiConverter 1000FF SC Multimode 550m to SC Single-Mode Single-Fiber 13/15 20km Plug-In Module
Network Technology1000Base-SX
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8650-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter 1000FF media converter provides fiber extension as well as multimode to single-mode and dual fiber to single fiber conversion. The 1000FF is a cost-effective solution for extending fiber network distances.

iConverter 1000FF models are available with multimode single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 80km. The multimode fiber port supports ST or SC connectors and distances up to 550m.

The 1000FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection isolation and reporting.

The iConverter 1000FF is available as a compact unmanaged standalone unit or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis or in a 1-Module chassis with AC or DC power input.

The standalone 1000FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter or it can be directly powered using a 2-pin terminal connector.
Maximum Distance Supported12.43 Mile
Package Contents
  • iConverter 1000FF SC Multimode 550m to SC Single-Mode Single-Fiber 13/15 20km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
Product FamilyiConverter 1000FF
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3z 1000BASE-X
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Additional Information

Single-Mode Wave Length:

  • Transmitted Wavelength: 1310nm
  • Received Wavelength: 1550nm

Multi-Mode Wave Length:

  • Wavelength: 850nm
