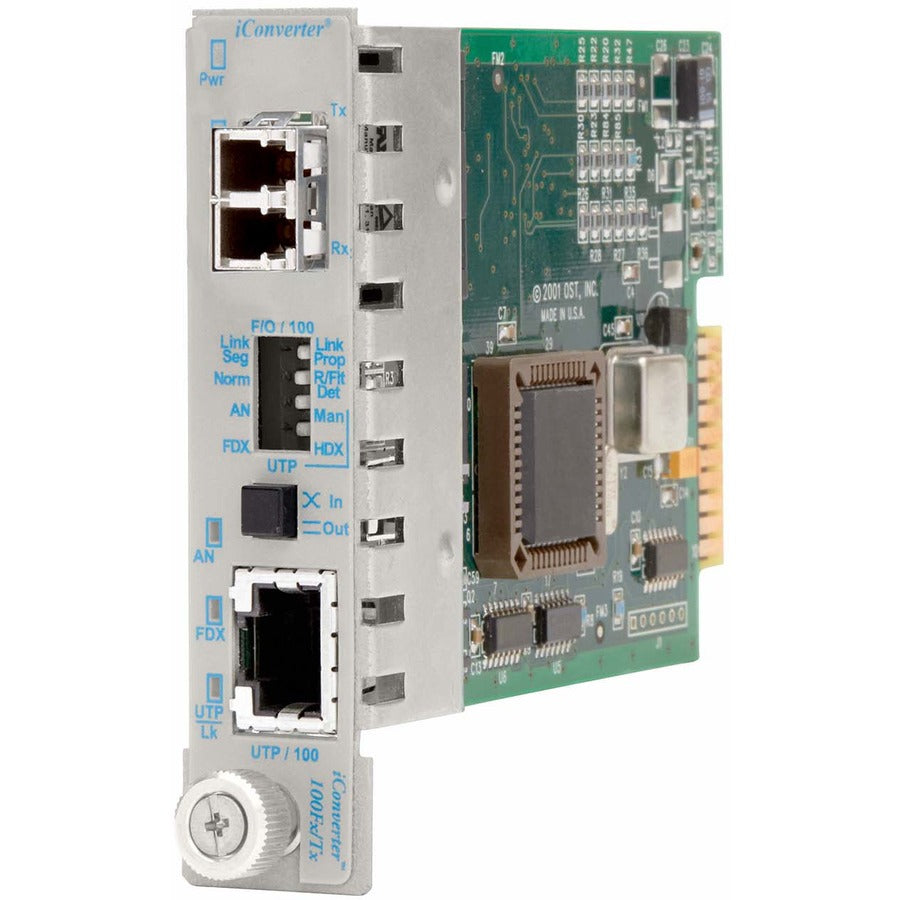

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 LC Multimode 5km Module

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 LC Multimode 5km Module

SKU: 1016107791      MFR: Omnitron Systems

GTIN: 800975022676

Product Description

iConverter 100Mbps Ethernet Fiber Media Converter RJ45 LC Multimode 5km Module - 1 x 100BASE-TX; 1 x 100BASE-FX; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8366-0

Features

  • Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • With 100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • The Rail-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of LC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
LC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
Product Series100Fx/Tx
Brand NameOmnitron Systems
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Form FactorRail-mountable
ManufacturerOmnitron Systems
Product Model8366-0-x
Product NameiConverter 100Fx/Tx LC Multimode 5km Plug-In Module
Network Technology100Base-TX
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8366-0
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter 100Fx/Tx manageable media converter is a member of the modular iConverter product family. It provides 100Base-Tx UTP to 100Base-Fx Fiber conversion. This iConverter 100Fx/Tx is available single-mode. It support ST connector. The UTP port supports 100Base-Tx in either half or full duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs switches and workstations.

  • UTP port supports Full or Half-Duplex 100Mbps Ethernet
  • UTP crossover switch eliminates the need for a crossover cable
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported3.11 Mile
Package Contents
  • iConverter 100Fx/Tx LC Multimode 5km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
Product FamilyiConverter 100Fx/Tx
View full details
Regular price $493.99 USD
Regular price Sale price $493.99
Sale Sold out

Out Of Stock


Update



Shipping calculated at checkout.
