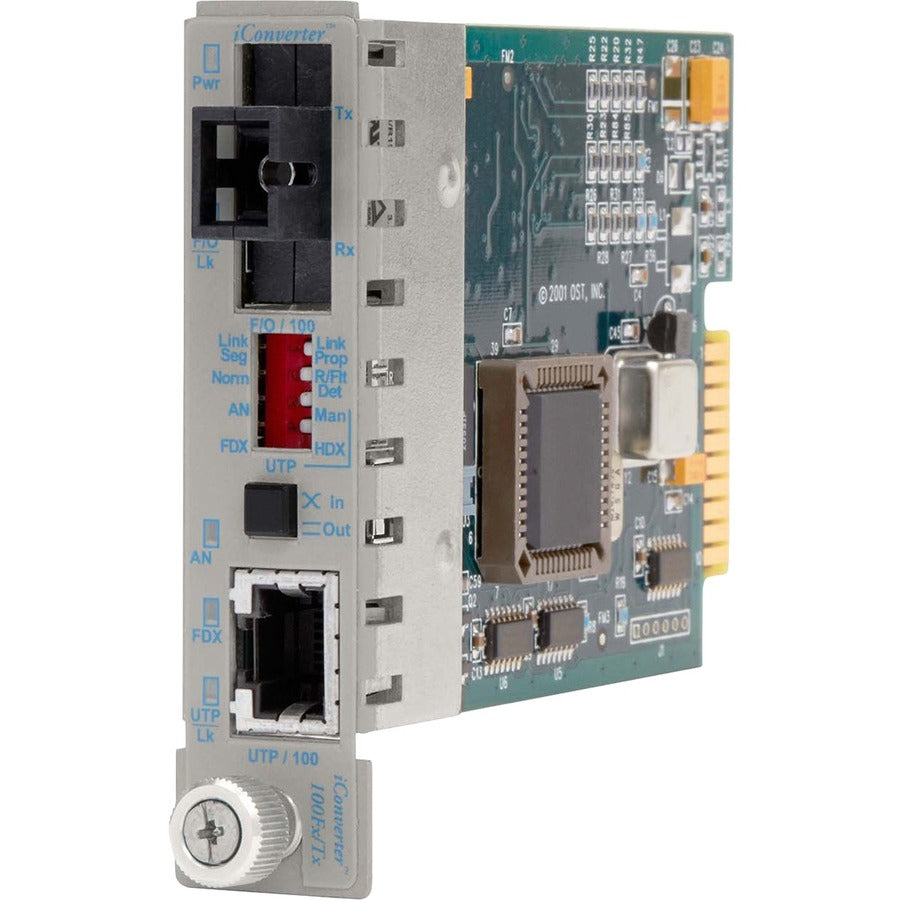

iConverter 100Mbps Ethernet Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km Module

iConverter 100Mbps Ethernet Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km Module

SKU: 10533409      MFR: Omnitron Systems

GTIN: 0800975028869

Product Description

iConverter 100Mbps Ethernet Single-Fiber Media Converter RJ45 SC Single-Mode BiDi 20km Module - 1 x 100BASE-TX; 1 x 100BASE-BX (1550/1310); Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8371-1

Features

  • Expand your network capabilities with this 2 transceiver/media converter
  • Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
  • With 100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • The Rail-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
SC Port TypeSimplex
Fiber Optic Wavelength1550 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
Product Series100Fx/Tx
Brand NameOmnitron Systems
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Form FactorRail-mountable
ManufacturerOmnitron Systems
Product Model8371-1-x
Product NameiConverter 100Fx/Tx SC Single-Mode Single-Fiber (15/13) 20km Plug-In Module
Network Technology100Base-TX
Package TypeRetail
Power Consumption2 W
Product LineiConverter
Manufacturer Part Number8371-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter 100Fx/Tx manageable media converter is a member of the modular iConverter product family. It provides 100Base-Tx UTP to 100Base-Fx Fiber conversion. This iConverter 100Fx/Tx is available single-mode. It support ST connector. The UTP port supports 100Base-Tx in either half or full duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs switches and workstations.

  • UTP port supports Full or Half-Duplex 100Mbps Ethernet
  • UTP crossover switch eliminates the need for a crossover cable
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported12.43 Mile
Package Contents
  • iConverter 100Fx/Tx SC Single-Mode Single-Fiber (15/13) 20km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Additional Information
  • MTBF: 1234568 Hours
  • A minimum of 3dB of attenuation is required
  • UTP crossover switch eliminates the need for a crossover cable
  • Hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • User-selectable link fault detection modes facilitate quick fault detection isolation and reporting
  • Tx wavelength(nm): 1550
  • Rx Wavelength(nm): 1310
Weight (Approximate)8 oz
Product FamilyiConverter 100Fx/Tx
