• ICONVERTER CWDM/X 8CH LC
    ICONVERTER CWDM/X 8CH LC
1 1

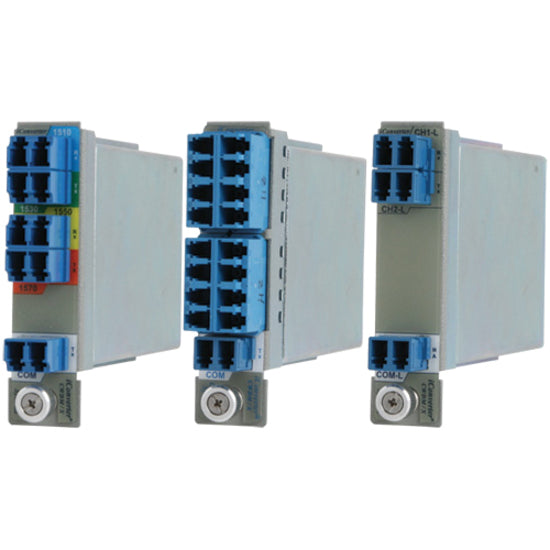

iConverter CWDM 8-Ch (1270 to 1450) DF Mux/Demux

iConverter CWDM 8-Ch (1270 to 1450) DF Mux/Demux

SKU: 1019288114      MFR: Omnitron Systems

GTIN: 0800975024892

Product Description

iConverter CWDM 8-Ch (1270 to 1450) DF Mux/Demux - 8 CWDM Channels 1270 1290 1310 1330 1350 1370 1430 1450

Manufacturer : Omnitron Systems

Manufacturer Part No : 8862-0

Product Details

Product TypeData Multiplexer/Demultiplexer
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Data Transfer Rate10 Gbit/s
Ethernet Technology10 Gigabit Ethernet
Number of Data Channels8
Media Type SupportedOptical Fiber
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product SeriesMUX/DEMUX
Brand NameOmnitron Systems
Form FactorPlug-in Module
ManufacturerOmnitron Systems
Product Model8862-x
Product NameiConverter CWDM 8-Channel (1270 to 1450) DF Mux/Demux
Product LineiConverter
Manufacturer Part Number8862-0
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationOmnitron System's iConverter 8863-0 is an 8-Channel CWDM Multiplexer and Demultiplexer plug-in module that supports ITU-T G.694.2 Wavelengths between 1470 and 1610 in 20nm increments. The iConverter 8-Channel CWDM MUX is designed to multiplex up to 8 wavelengths over single-mode fiber and occupies a single slot in an iConverter Chassis.
Omnitron System's CWDM/X modules are protocol and rate transparent allowing different services of up to 10Gbps per wavelength in point-to-point or protected ring topologies. They provide ideal solution to expand the capacity of existing fiber infrastructure or consolidate multiple fiber strands in enterprise data center interconnectivity government/military and Service provider's transport and access networks.
- Compact form factor yields one of the highest port densities in the industry with up to 120 ports in a 2U chassis
- Scalable to 8 or 16 channels using an optional Expansion Port or separate Band Splitter
- Optional 1310 Pass Band Port enables existing 1310nm networks to carry up to an additional 8 CWDM channels
- Protocol transparent to combine individual wavelengths for services ranging from Ethernet EPON RFoG Fibre Channel TDM and other protocols
- Minimal and uniform optical loss facilitates predictable network planning and efficient use of optical power budget.
- Seamless integration with other iConverter media converters and chassis for multi-service platforms
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- One (1) Year Warranty and Free 24/7 Technical Support

Multiple multiplexers can be cascaded to combine 8 12 or 16 wavelengths.
Package Contents
  • iConverter CWDM 8-Channel (1270 to 1450) DF Mux/Demux
  • User Manual
Limited Warranty1 Year
Weight (Approximate)12 oz
Management PortNo
Number of LC Ports9
Fiber Mode SupportedSingle-mode
LC Port TypeDuplex
Fiber Optic Wavelength1270 nm
Connectivity TechnologyWired
Rack Height2U
View full details
$3,585.99 USD
$3,585.99
Sale Sold out

Back Order

Get it by Mon, May 26 - Sat, May 31


Update


Shipping calculated at checkout.

iConverter CWDM 8-Ch (1270 to 1450) DF Mux/Demux - 8 CWDM Channels 1270 1290 1310 1330 1350 1370 1430 1450

Manufacturer : Omnitron Systems

Manufacturer Part No : 8862-0

Product Details

Product TypeData Multiplexer/Demultiplexer
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Data Transfer Rate10 Gbit/s
Ethernet Technology10 Gigabit Ethernet
Number of Data Channels8
Media Type SupportedOptical Fiber
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product SeriesMUX/DEMUX
Brand NameOmnitron Systems
Form FactorPlug-in Module
ManufacturerOmnitron Systems
Product Model8862-x
Product NameiConverter CWDM 8-Channel (1270 to 1450) DF Mux/Demux
Product LineiConverter
Manufacturer Part Number8862-0
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationOmnitron System's iConverter 8863-0 is an 8-Channel CWDM Multiplexer and Demultiplexer plug-in module that supports ITU-T G.694.2 Wavelengths between 1470 and 1610 in 20nm increments. The iConverter 8-Channel CWDM MUX is designed to multiplex up to 8 wavelengths over single-mode fiber and occupies a single slot in an iConverter Chassis.
Omnitron System's CWDM/X modules are protocol and rate transparent allowing different services of up to 10Gbps per wavelength in point-to-point or protected ring topologies. They provide ideal solution to expand the capacity of existing fiber infrastructure or consolidate multiple fiber strands in enterprise data center interconnectivity government/military and Service provider's transport and access networks.
- Compact form factor yields one of the highest port densities in the industry with up to 120 ports in a 2U chassis
- Scalable to 8 or 16 channels using an optional Expansion Port or separate Band Splitter
- Optional 1310 Pass Band Port enables existing 1310nm networks to carry up to an additional 8 CWDM channels
- Protocol transparent to combine individual wavelengths for services ranging from Ethernet EPON RFoG Fibre Channel TDM and other protocols
- Minimal and uniform optical loss facilitates predictable network planning and efficient use of optical power budget.
- Seamless integration with other iConverter media converters and chassis for multi-service platforms
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- One (1) Year Warranty and Free 24/7 Technical Support

Multiple multiplexers can be cascaded to combine 8 12 or 16 wavelengths.
Package Contents
  • iConverter CWDM 8-Channel (1270 to 1450) DF Mux/Demux
  • User Manual
Limited Warranty1 Year
Weight (Approximate)12 oz
Management PortNo
Number of LC Ports9
Fiber Mode SupportedSingle-mode
LC Port TypeDuplex
Fiber Optic Wavelength1270 nm
Connectivity TechnologyWired
Rack Height2U
