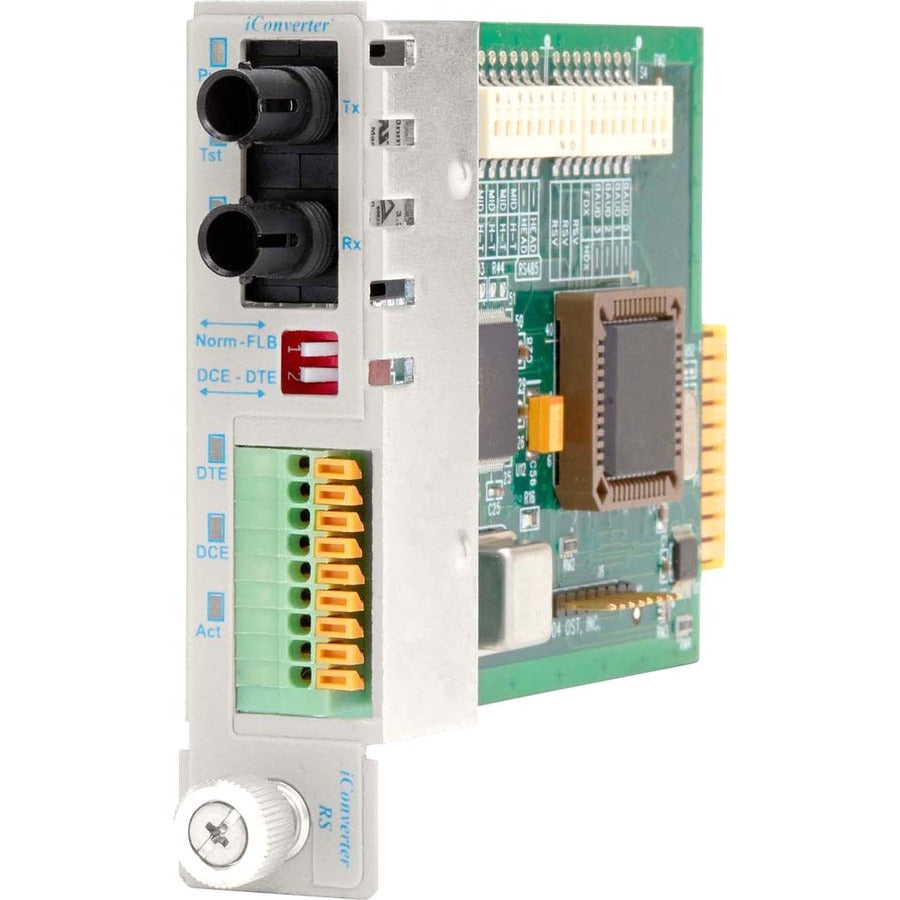

iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Single-Mode 30km Module

iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Single-Mode 30km Module

SKU: 10512142      MFR: Omnitron Systems

GTIN: 0800975019737

Product Description

iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Single-Mode 30km Module - 1 x RS-422/485; 1 x ST Single-Mode; Internal Module; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8781-1

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • Rack mounting enables you to organize wires & secure cables for professional installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of ST Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
ST Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
Product SeriesRS422/485
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8781-1-x
Product NameiConverter RS422/485 DB-9 ST Single-Mode 30km Plug-In Module
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8781-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe Omnitron iConverter RS422/485 is a managed serial RS-422 and RS-485 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends serial signals up to 120km and is immune from electrical and magnetic interference.

The RS422/485 is available with a single-mode multimode or single-fiber transceiver. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

The RS422/485 automatically detects the signal baud rate of connected Full-Duplex serial device ranging from 110 to 921600 baud. It also automatically adjusts to changes in the connected device's Full-Duplex baud rate during operation without reconfiguration or interruption of service.

Half-Duplex RS-485 and Full-Duplex RS-485 (sometimes referred to as Multipoint RS-422) operations are supported via a configurable baud rate DIP-switch to match the master/slave communication timing.

  • Supports baud rates ranging from 110 to 921600 baud
  • Serial interface available as DB-9 or Terminal Block connector for field wiring
  • Features built-in configurable terminators
  • Features configurable baud rate for Half-Duplex RS-485 and Full-Duplex RS-485 operation
  • Supports RTS and CTS controls
  • Supports Point-to-Point Half and Full-Duplex Multi- Point Full-Duplex and either Head Tail or Mid-Position
  • Features remote Fiber Loopback DIP-switch for easy testing of fiber link even during serial transmission
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported18.64 Mile
Package Contents
  • iConverter RS422/485 DB-9 ST Single-Mode 30km Plug-In Module
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)8 oz
Number of Serial Ports1
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Compatibility
  • iConverter 19-Module Chassis
  • iConverter 5-Module Chassis
  • iConverter 2-Module Chassis
  • iConverter 1-Module Chassis
Additional Information

Serial Port Type:

  • DB-9 (female)
Product FamilyiConverter RS422/485
View full details
$1,027.99 USD
$1,027.99
Sale Sold out

Dropship

Get it by Sun, Jan 05 - Fri, Jan 10
