• ICONVERTER T3/E3 COAX TO SC/MM
    ICONVERTER T3/E3 COAX TO SC/MM
1 1

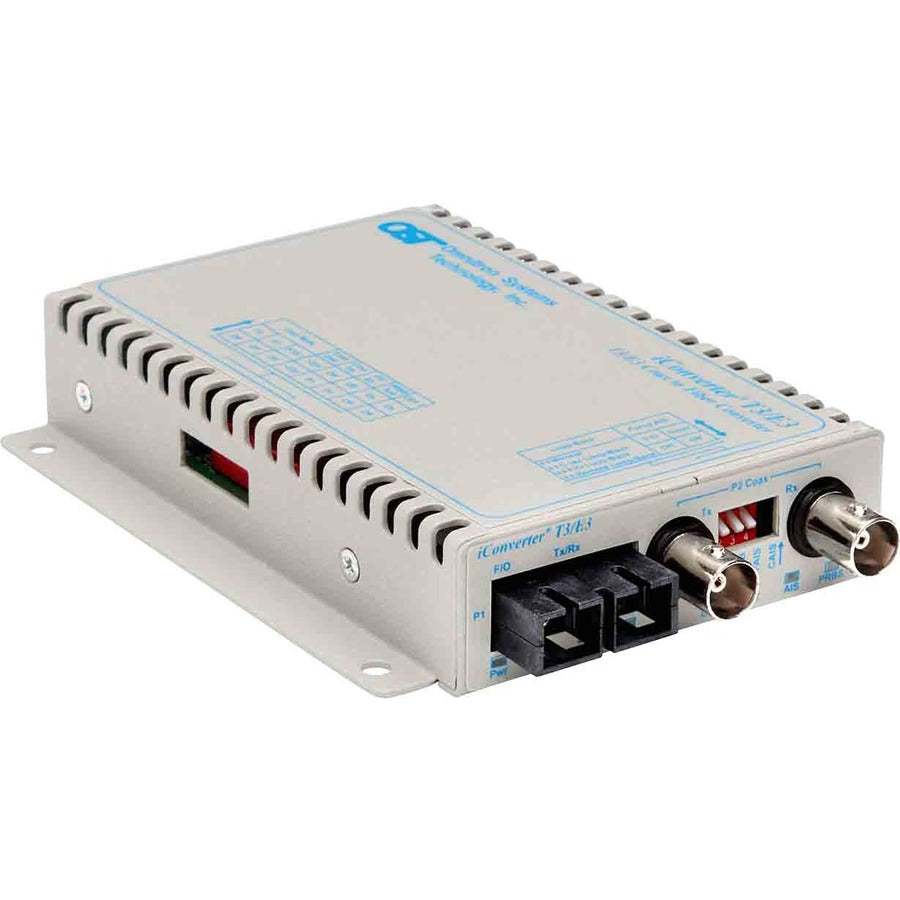

iConverter T3/E3 Fiber Media Converter Coaxial SC Multimode 5km

iConverter T3/E3 Fiber Media Converter Coaxial SC Multimode 5km

SKU: 1014317846      MFR: Omnitron Systems

GTIN: 800975022447

Product Description

iConverter T3/E3 Fiber Media Converter Coaxial SC Multimode 5km - 1 x T3/E3/DS-3; 1 x SC Multimode; Wall-Mount Standalone; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 8742-0-D

Features

  • Meet the multiple network connectivity needs of today's network environment with this 3 transceiver/media converter
  • Supports coaxial cable for laboratory and industrial environment requiring up to 500 meter coverage and low bandwidth
  • With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of SC Ports1
Media Type SupportedCoaxial
Fiber Mode SupportedMulti-mode
Total Number of Ports3
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width3.1"
Depth4.8"
Product SeriesT3/E3
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model8742-0-x
Product NameiConverter T3/E3 SC Multimode 5km Wall-Mount Standalone US AC Powered
Network TechnologyT3/E3
Package TypeRetail
Product LineiConverter
Manufacturer Part Number8742-0-D
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs multiplexers routers and video servers via fiber. T3/E3 media converters operate in pairs extending distances over fiber which improves noise immunity quality of service intrusion protection and network security.

  • Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
  • Framing independent; supports framed or unframed and channelized or fractional unchannelized data
  • Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
  • Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable and can be used in the 19-Module 5-Module 2-Module or 1-Module iConverter chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported3.11 Mile
Package Contents
  • iConverter T3/E3 SC Multimode 5km Wall-Mount Standalone US AC Powered
  • US Power Supply - 100-120Volt / 60Hz
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)1 lb
Number of BNC Ports2
Certifications & StandardsCompliance:
  • UL
  • CE
  • FCC Class A
Input Voltage120 V AC
Additional Information

Input Voltage:

  • 5-32VDC via 2.5mm barrel (0.3A @ 9VDC)
  • 100-120VAC/60Hz (0.05A @ 120VAC
  • )
Product FamilyiConverter T3/E3
