OVERVIEW

The JBL GSB8 in-ground 8-inch landscape subwoofer augments the lowfrequency performance of JBL GSF full-range landscape speakers to provide rich full-range sound in lawn and garden areas of hospitality corporate and retail spaces.

The GSB8 focuses on fidelity with true subwoofer extension down to 35 Hz and a steep multiple-slope lowpass filter for superior sound. Its premium-grade 100-watt subwoofer-band transformer allows use in 70V/100V systems or can be connected for low-impedance direct operation.

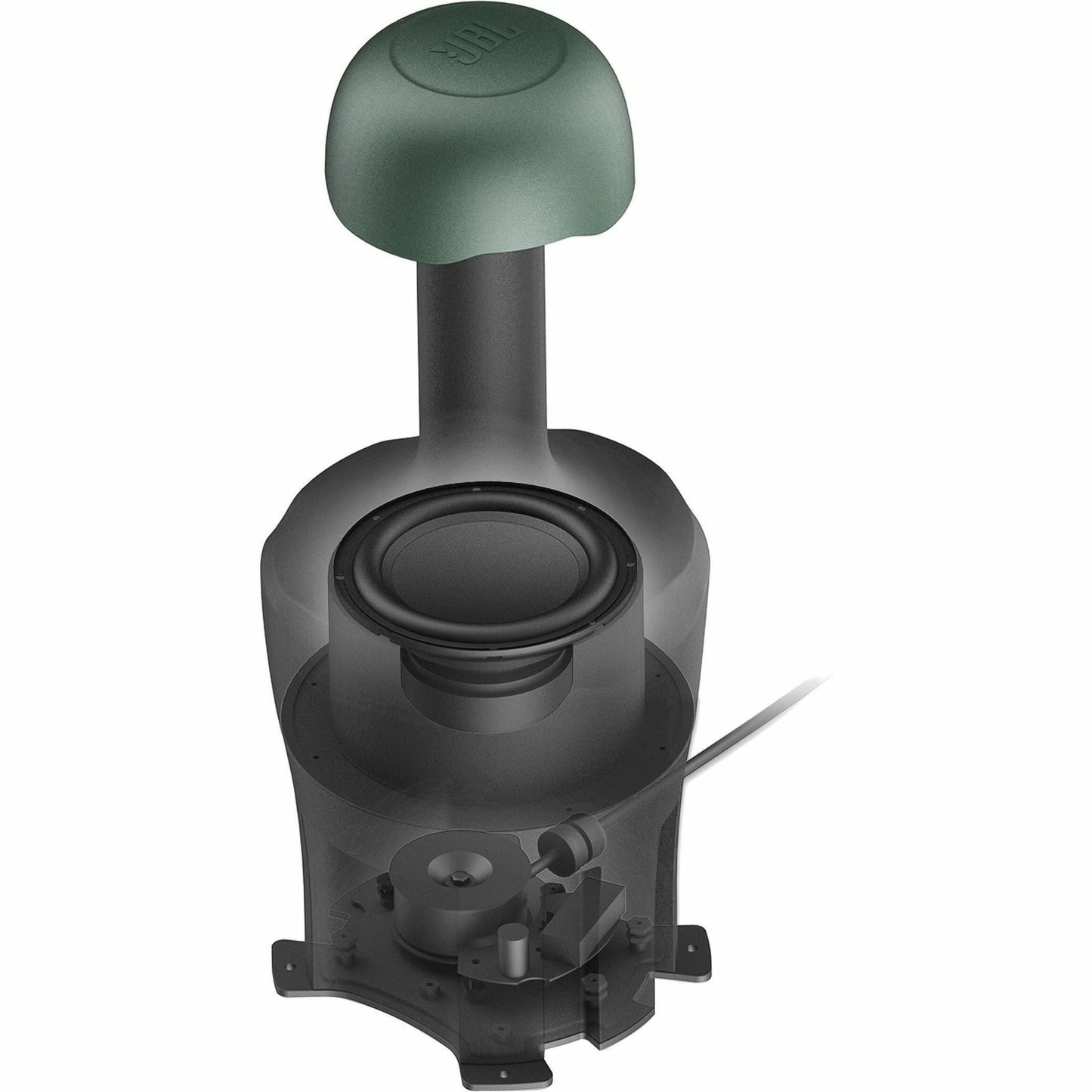

This sleek ultra-low-profile speaker-winner of the intermnational awards for industrial design excellence-installs underground with only the audio port visible. It's designed to withstand the elements: Its chamber is oriented directly below the audio port to prevent accidental damage from landscaping which can be a problem with side-located chambers. Grab handles allow easy installation and tabs secure the subwoofer to blocks or anchors.

Add the GSB8 to landscape areas of hotels shopping complexes restaurants public spaces theme parks or any application that demands legendary JBL sound with deep rich powerful bass.

FEATURES

Transducers: 209 mm (8") polypropylene driver 38mm (1.5") voice coil on Kapton™ former

True subwoofer performance down to 35 Hz

250 W Power Handling (continuous pink noise 2 hrs)

Built-in steep multiple-slope lowpass filter

Low-impedance direct operation plus premium-grade subwooferband transformer for use in 70V/100V systems

Forms complete system with JBL GSF full-range landscape speakers

Chamber oriented directly below opening to prevent accidental damage from landscaping

Grab handles allow easy installation

Anchor points for securing cabinet to block or anchors

Available in hunter green or tan finishes to fit a wide variety of landscapes

Dimensions: 768 mm height x 311 mm diameter (30.1 x 12.2 in)

• GSB8 8" In-Ground Subwoofer
• 7 x Gel-Filled Wire Nuts
