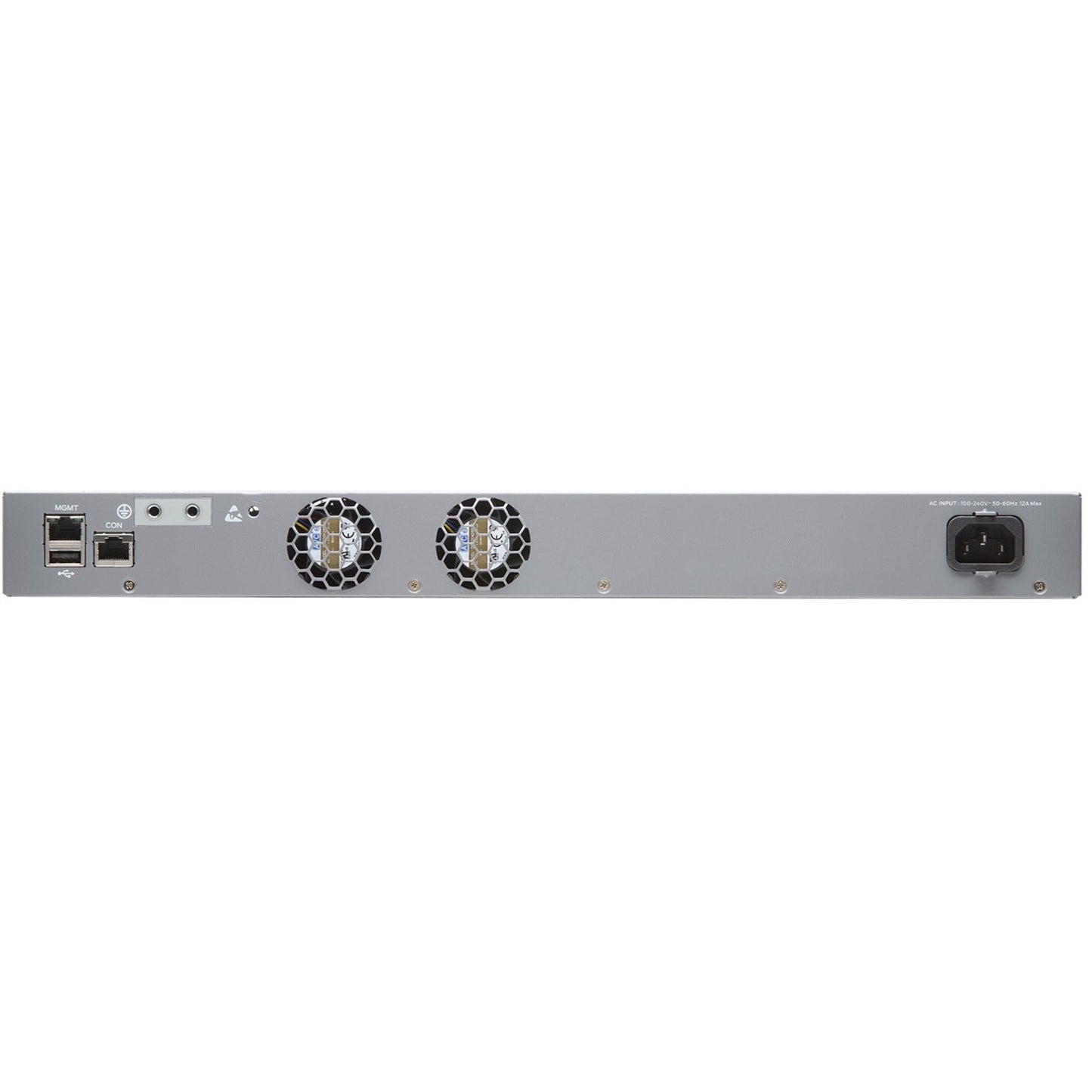

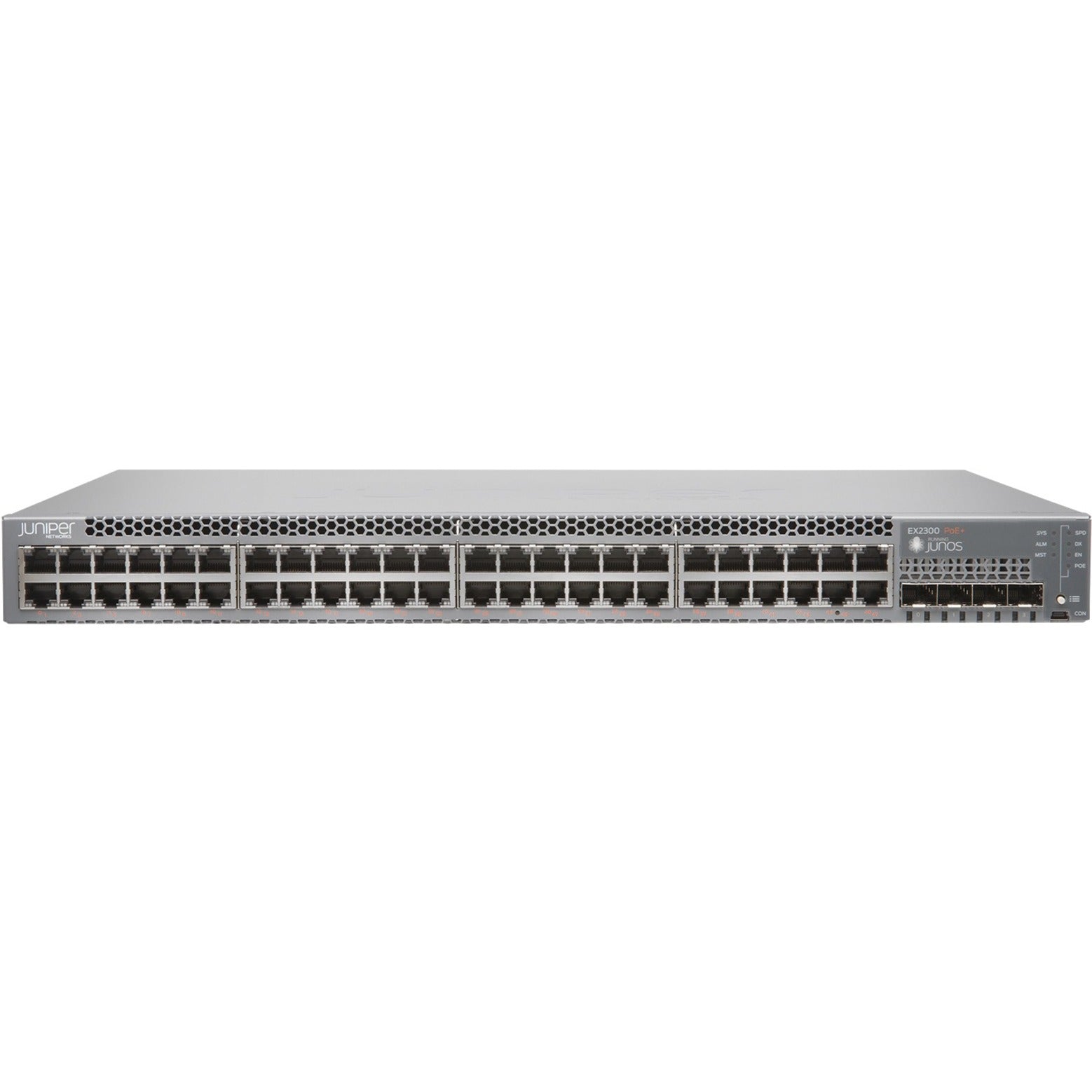

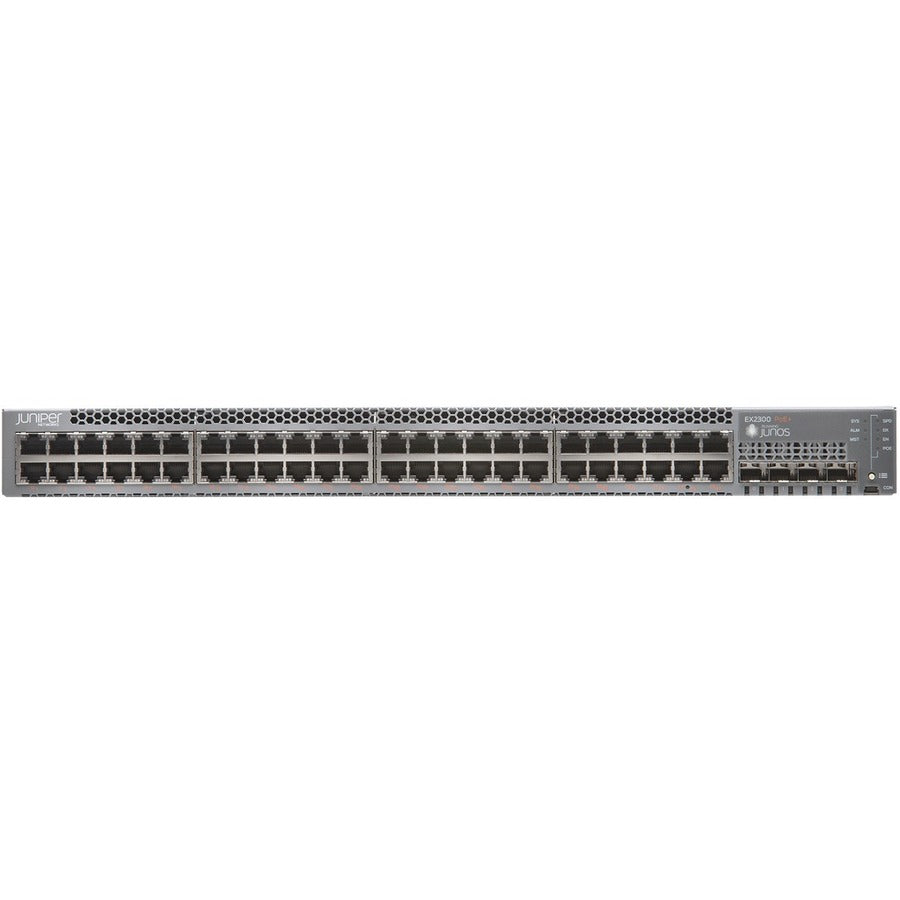

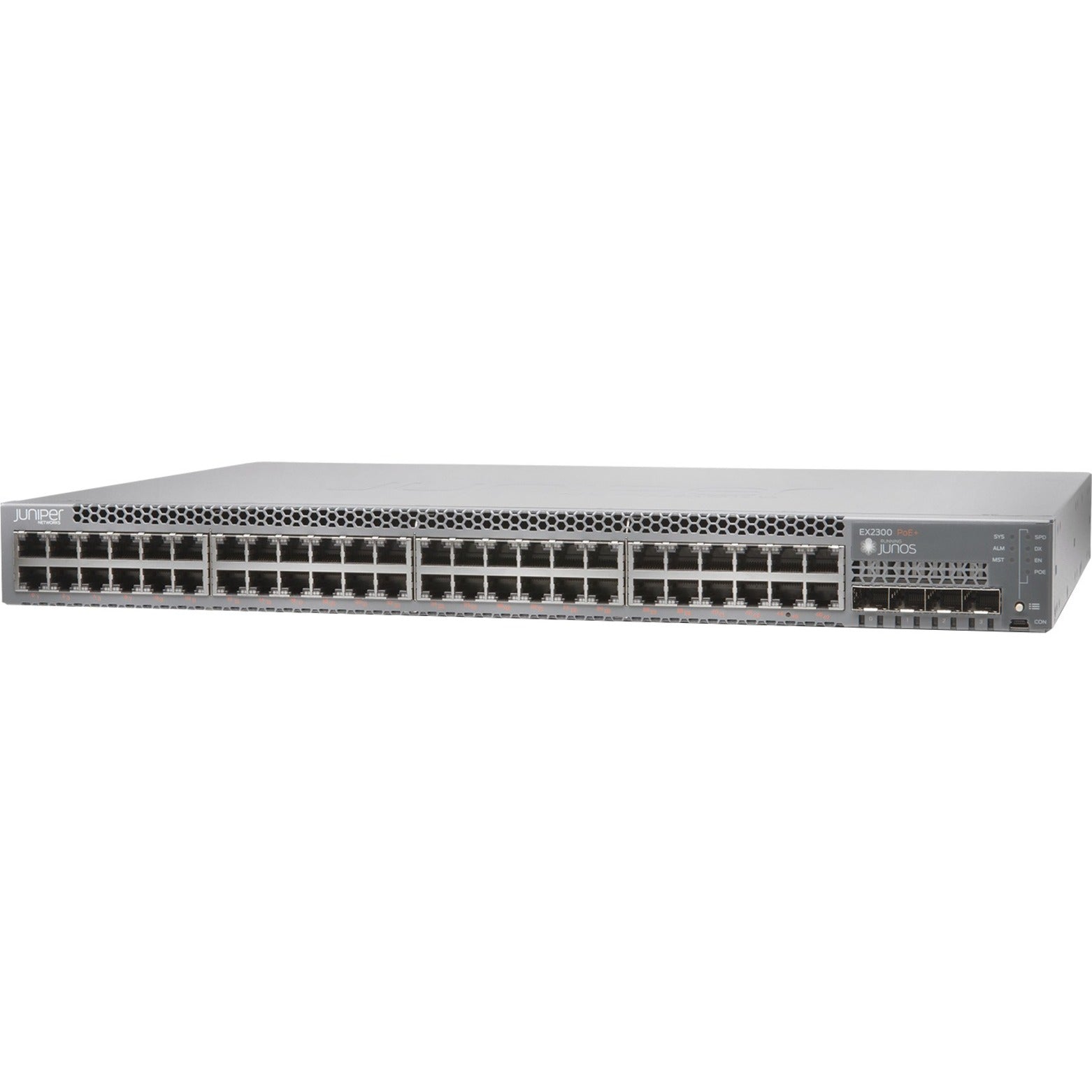

Juniper EX2300 Ethernet Switch

Juniper EX2300 Ethernet Switch

SKU: 1061311360      MFR: Juniper Networks Inc

Product Description

Juniper EX2300 Ethernet Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair Optical Fiber - 1U High - Rack-mountable Wall Mountable Desktop - Lifetime Limited Warranty

Manufacturer : Juniper Networks Inc

Manufacturer Part No : B-EX2300-48P-3S-E

Features

  • Features 48 networking ports to establish large network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports layer 3 switching for enhanced performance and usability
  • Management capability provides control over setup and configuration of your network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Rack mounting enables you to organize wires & secure cables for professional installation

Product Details

Width17.4"
Height1.8"
Port/Expansion Slot Details4 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports48
Media Type SupportedOptical Fiber
Uplink PortYes
ModularYes
Number of SFP+ Slots4
Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots4
Product FamilyEX2300
Media Type SupportedTwisted Pair
Expansion Slot TypeSFP+
Brand NameJuniper
Form FactorRack-mountable
Power SourcePower Supply
Layer Supported3
Environmentally FriendlyYes
Environmental CertificationRoHS-6
Compatible Rack Unit1U
Port/Expansion Slot Details48 x Gigabit Ethernet PoE+
Depth12.2"
Product SeriesEX2300
ManufacturerJuniper Networks Inc
Product ModelEX2300-48P
Product NameEX2300 Ethernet Switch
Network Technology10/100/1000Base-T
Manufacturer Part NumberB-EX2300-48P-3S-E
Manufacturer Website Addresshttp://www.juniper.net
Marketing InformationThe Juniper Networks EX2300 Ethernet Switch offers an economical entry-level standalone solution for accesslayer deployments in branch and remote offices as well as enterprise campus networks. Both 1 Gbps and 2.5 Gbps access port options are available to provide higher-speed options especially when connecting to 802.11ac Wave 2 access points.

To simplify network operations the EX2300 can act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment which can combine several wiring closets into one logical management platform. For smaller networks up to four EX2300 switches can be interconnected in a Virtual Chassis configuration allowing them to be managed as a single switch.

Product Description

The Juniper Networks® EX2300 line of Ethernet switches offers a compact highperformance solution for supporting today's converged network access deployments.

Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding even with all control plane features enabled. Based on existing field-proven Juniper Networks technology the PFE brings the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers bring to the world's largest service provider networks.

Select EX2300 models also support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones video cameras IEEE 802.11ac WLAN access points and videophones in converged networks. The PoE-enabled EX2300 switches include a maximum system budget of 740 watts to deliver up to 30 watts to select ports.

Multiple EX2300 models are available including versions offering multigigabit (up to 2.5 Gbps) PoE+ access ports that can accommodate higher-speed IEEE 802.11ac Wave 2 access points enabling the switches to support more wireless users.

The EX2300 fixed-configuration Ethernet switches provide exceptional value to enterprise customers by supporting the following key technologies:
  • Juniper Networks Junos® Fusion Enterprise allows up to 128 EX2300 switches to be configured as satellite devices that connect to EX9200 core aggregation devices.
  • Virtual Chassis technology enables up to four interconnected EX2300 switches to form a single logical device.
  • Flexible 4x1GbE SFP/10GbE SFP+ uplinks provide high-speed connectivity to aggregation layer switches or other upstream devices.
  • Up to 48 10/100/1000BASE-T ports are available with or without PoE/PoE+.
  • Energy Efficient Ethernet (EEE) support is provided on 1GbE ports.
  • Complete Layer 2 and basic Layer 3 switching capabilities are available.
  • Simplified management uses Juniper Networks Junos Space Network Director and J-Web GUI.
Additional features include:
  • PoE-enabled EX2300 switches can simultaneously deliver up to 15.4 watts of standards-based 802.3af Class 3 PoE to a maximum of 48 ports or 30 watts of standards-based 802.3at PoE+ to a maximum of 24 ports based on a total system budget of 740 watts.
  • Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE optics interfaces (optional license required).
  • Fixed power supply and uplink ports ensure operational simplicity.
  • Low power consumption low acoustic fans and a small 10-inch deep footprint enable flexible environmentally friendly deployment.
  • Support for L2 protocols as well as L3 protocols like RIP and static routing are included in the base license.
Limited WarrantyLifetime
Weight (Approximate)11.07 lb
View full details

Back Order

Get it by Sat, Feb 14 - Thu, Feb 19

Juniper EX2300 Ethernet Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - Twisted Pair Optical Fiber - 1U High - Rack-mountable Wall Mountable Desktop - Lifetime Limited Warranty

Manufacturer : Juniper Networks Inc

Manufacturer Part No : B-EX2300-48P-3S-E

Features

  • Features 48 networking ports to establish large network
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports layer 3 switching for enhanced performance and usability
  • Management capability provides control over setup and configuration of your network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Rack mounting enables you to organize wires & secure cables for professional installation

Product Details

Width17.4"
Height1.8"
Port/Expansion Slot Details4 x 10 Gigabit Ethernet Expansion Slot
Total Number of Network Ports48
Media Type SupportedOptical Fiber
Uplink PortYes
ModularYes
Number of SFP+ Slots4
Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots4
Product FamilyEX2300
Media Type SupportedTwisted Pair
Expansion Slot TypeSFP+
Brand NameJuniper
Form FactorRack-mountable
Power SourcePower Supply
Layer Supported3
Environmentally FriendlyYes
Environmental CertificationRoHS-6
Compatible Rack Unit1U
Port/Expansion Slot Details48 x Gigabit Ethernet PoE+
Depth12.2"
Product SeriesEX2300
ManufacturerJuniper Networks Inc
Product ModelEX2300-48P
Product NameEX2300 Ethernet Switch
Network Technology10/100/1000Base-T
Manufacturer Part NumberB-EX2300-48P-3S-E
Manufacturer Website Addresshttp://www.juniper.net
Marketing InformationThe Juniper Networks EX2300 Ethernet Switch offers an economical entry-level standalone solution for accesslayer deployments in branch and remote offices as well as enterprise campus networks. Both 1 Gbps and 2.5 Gbps access port options are available to provide higher-speed options especially when connecting to 802.11ac Wave 2 access points.

To simplify network operations the EX2300 can act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment which can combine several wiring closets into one logical management platform. For smaller networks up to four EX2300 switches can be interconnected in a Virtual Chassis configuration allowing them to be managed as a single switch.

Product Description

The Juniper Networks® EX2300 line of Ethernet switches offers a compact highperformance solution for supporting today's converged network access deployments.

Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding even with all control plane features enabled. Based on existing field-proven Juniper Networks technology the PFE brings the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers bring to the world's largest service provider networks.

Select EX2300 models also support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones video cameras IEEE 802.11ac WLAN access points and videophones in converged networks. The PoE-enabled EX2300 switches include a maximum system budget of 740 watts to deliver up to 30 watts to select ports.

Multiple EX2300 models are available including versions offering multigigabit (up to 2.5 Gbps) PoE+ access ports that can accommodate higher-speed IEEE 802.11ac Wave 2 access points enabling the switches to support more wireless users.

The EX2300 fixed-configuration Ethernet switches provide exceptional value to enterprise customers by supporting the following key technologies:
  • Juniper Networks Junos® Fusion Enterprise allows up to 128 EX2300 switches to be configured as satellite devices that connect to EX9200 core aggregation devices.
  • Virtual Chassis technology enables up to four interconnected EX2300 switches to form a single logical device.
  • Flexible 4x1GbE SFP/10GbE SFP+ uplinks provide high-speed connectivity to aggregation layer switches or other upstream devices.
  • Up to 48 10/100/1000BASE-T ports are available with or without PoE/PoE+.
  • Energy Efficient Ethernet (EEE) support is provided on 1GbE ports.
  • Complete Layer 2 and basic Layer 3 switching capabilities are available.
  • Simplified management uses Juniper Networks Junos Space Network Director and J-Web GUI.
Additional features include:
  • PoE-enabled EX2300 switches can simultaneously deliver up to 15.4 watts of standards-based 802.3af Class 3 PoE to a maximum of 48 ports or 30 watts of standards-based 802.3at PoE+ to a maximum of 24 ports based on a total system budget of 740 watts.
  • Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE optics interfaces (optional license required).
  • Fixed power supply and uplink ports ensure operational simplicity.
  • Low power consumption low acoustic fans and a small 10-inch deep footprint enable flexible environmentally friendly deployment.
  • Support for L2 protocols as well as L3 protocols like RIP and static routing are included in the base license.
Limited WarrantyLifetime
Weight (Approximate)11.07 lb
