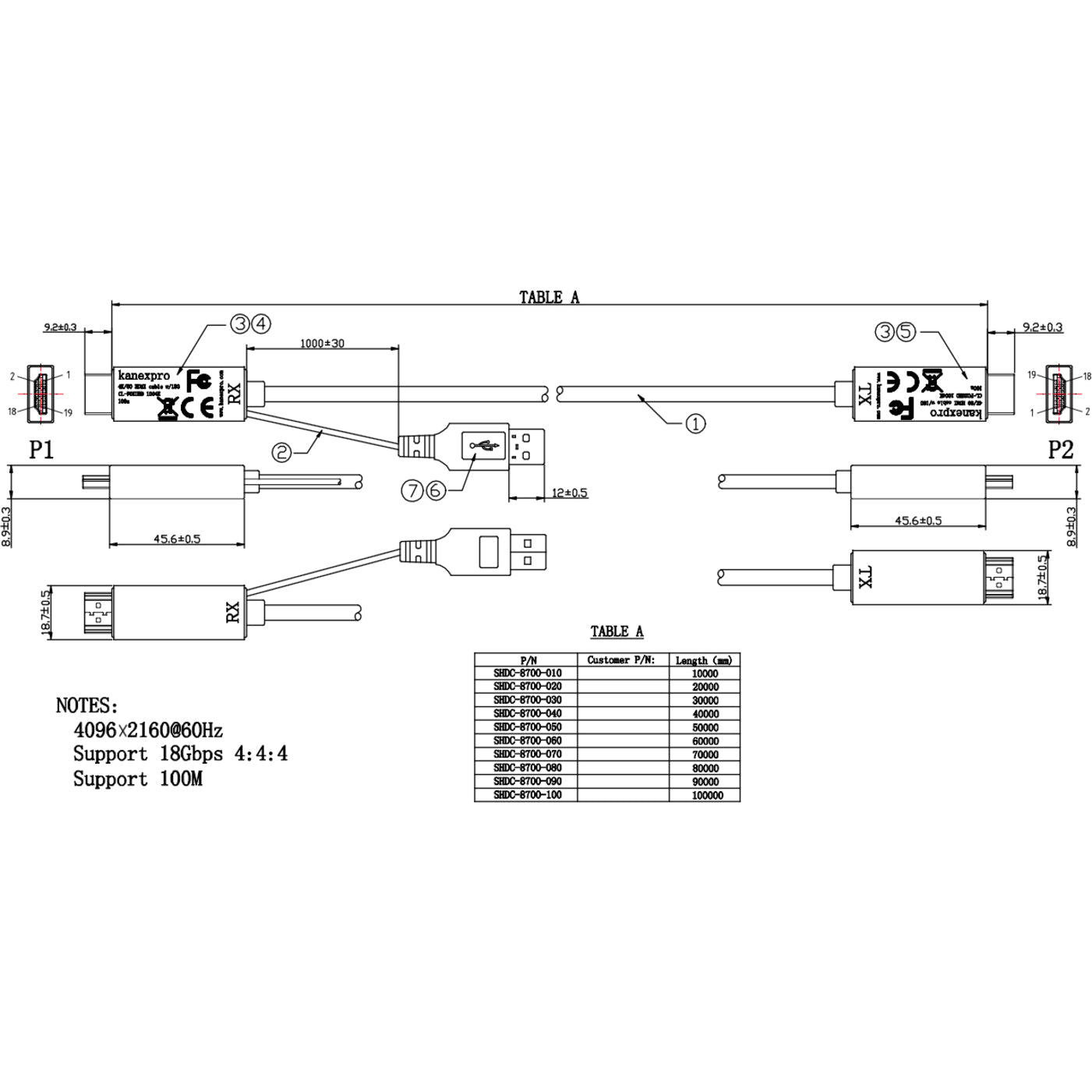

KanexPro 18G HDMI Active Optical Cable with 4K/60Hz - 30m

KanexPro 18G HDMI Active Optical Cable with 4K/60Hz - 30m

SKU: 1038510208      MFR: KanexPro

GTIN: 813982021105

Product Description

KanexPro 18G HDMI Active Optical Cable with 4K/60Hz - 30m - 98.43 ft Fiber Optic A/V Cable for Audio/Video Device HDTV - First End: 1 x HDMI (Type A) Male Digital Audio/Video - Second End: 1 x HDMI (Type A) Male Digital Audio/Video Second End: 1 x Type A Male USB - 18 Gbit/s - Supports up to 3840 x 2160 - Shielding - 28 AWG - Black

Manufacturer : KanexPro

Manufacturer Part No : CBL-AOC30M4K

Features

  • HDMI® AOC- Active optical cable
  • Premium video quality up to 4096x2160p/50Hz or 60Hz
  • Bandwidth up to 18Gbps (6Gbps per channel)
  • Color Sub-sampling of 4:4:4 4:2:2 4:2:0 with Deep Color & HDR
  • Integrated USB connector draws power from the display
  • EMI/RF free for clear signal transmission
  • Up to 32 audio channels for a multi-dimensional immersive audio
  • Up to 1536kHz audio sample frequency for the highest audio fidelity
  • Support for the wide angle theatrical 21:9 video aspect ratio
  • Dynamic synchronization of video and audio streams
  • Supports CEC extensions
  • Low power consumption
  • Supports 3D and 4Kx2K
  • Support color depths to 48 bits
  • HDCP 2.2 compliant
  • Available in lengths of 30m 50m and 100m

Product Details

Product TypeA/V Cable
Connector on First End1 x HDMI (Type A) Male HDMI 2.0 Digital Audio/Video
Connector on Second End1 x HDMI (Type A) Male HDMI 2.0 Digital Audio/Video
Cable TypeFiber Optic
Fiber Optic ModeMulti-mode
American Wire Gauge28 AWG
Supported Resolution3840 x 2160
ColorBlack Jacket
Brand NameKanexPro
FeaturesEMI/RF Protection
ManufacturerKanexPro
Product Name18G HDMI Active Optical Cable with 4K/60Hz - 30m
Data Transfer Rate18 Gbit/s
Device SupportedAudio/Video Device
Manufacturer Part NumberCBL-AOC30M4K
Manufacturer Website Addresshttp://www.kanexpro.com
Marketing Information

Active Optical Cable (AOC) is a cabling technology that accepts same electrical inputs as a traditional copper cable but uses optical fiber between the connectors to extend HDMI signals with zero loss or latency. The KanexPro AOC 30 meter (98 feet) HDMI 2.0 cables with Ethernet are designed with premium craftsmanship to deliver UltraHD with a super bandwidth of 18 Gbps.

These latest specs from HDMI deliver uncompressed 4K resolutions with 32 audio channels for a multi- dimensional immersive audio and up to 1536 kHz sample frequency to attain highest audio fidelity. It supports sub-sampling rates of 4:4:4 4:2:2 & 4:2:0 YUV with deep color and HDR can be achieved when integrated with compatible HDMI 2.0 devices. This AOC cable is resistant to EMI and RFI interference providing you with noise-free video and audio with less copper and more fiber optic. The cable gets its power via USB which can be connected near the HDMI source device which uses USB port to get its power.
ShieldingYes
Limited Warranty3 Year
Cable Length98.43 ft
Weight (Approximate)2.40 lb
Jacket MaterialPolyvinyl Chloride (PVC)
Connector on First EndHDMI (Type A) Male Digital Audio/Video
Connector on Second EndHDMI (Type A) Male Digital Audio/Video
ColorBlack
