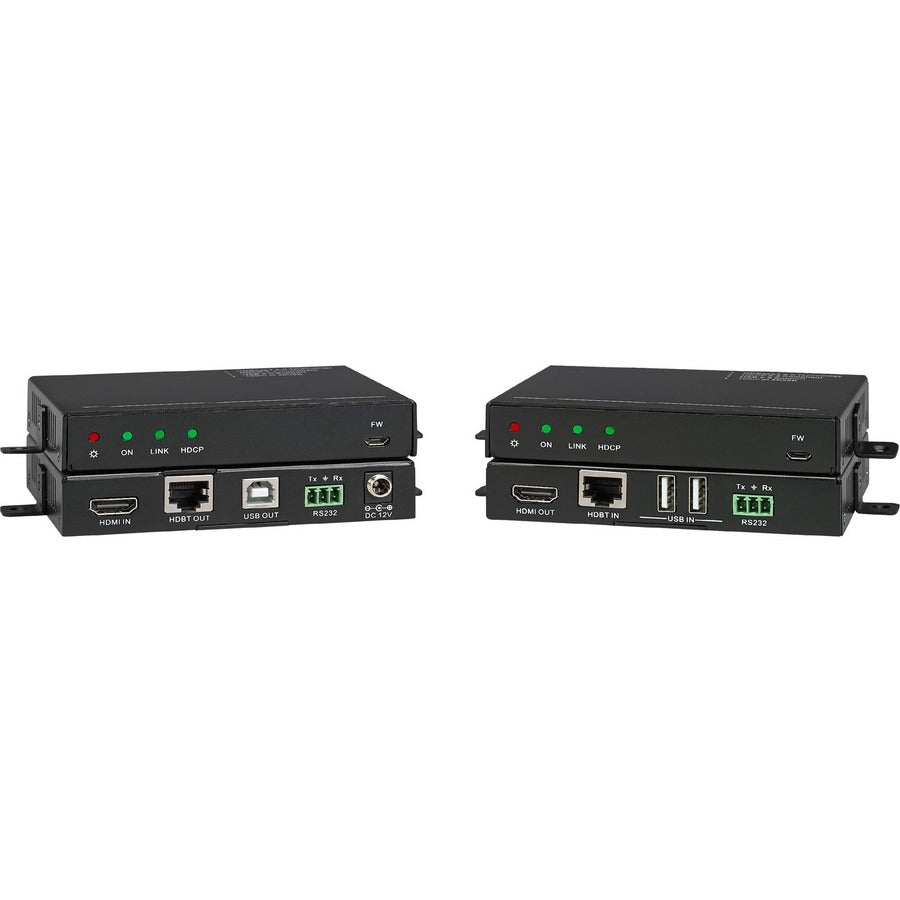

The KanexPro EXT-HDBTKVM100 is an HDCP 2.2 compliant 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video audio USB 2.0 control signals and PoH over a single CAT5e/6 cable. The PoH compliant extender comes with only one power supply which means that it can be powered from either Tx or Rx to save installers time and added cost to installing a power outlet.

Long-reach mode & USB 2.0

The HDMI extender runs on shielded CATx up to 100 meters providing full 4K@60Hz or up to 150 meters providing full HD 1080p/60 or 1920x1200@60Hz. One USB type B port is added on the Transmitter for connecting to PC or USB peripherals and two USB 2.0 ports are provided on the receiver side to work like a KVM or USB based Touch Panel using USB HID to create remote USB data and video extension up to 492 feet (150 meters).

Applications:

USB for Conferencing in AV

Perfect for conference rooms and boardrooms where the extender offers two USB interfaces allowing SOFTCODEC systems to be used for video conferencing and for use with PTZ cameras.

Digital Signage with data diagnostics

Ideal for applications such as Digital Signage where high-resolution video audio and USB KVM function and data diagnostics can be sent back to the computer from the QSR display or vice versa.

• 1 x Transmitter
• 1 x Receiver
